ACM20R-ARSEK (2001)

Toyota Picnic/Avensis Verso

Production May 2001 - Dec 2009
Engine 1AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0105-0310)

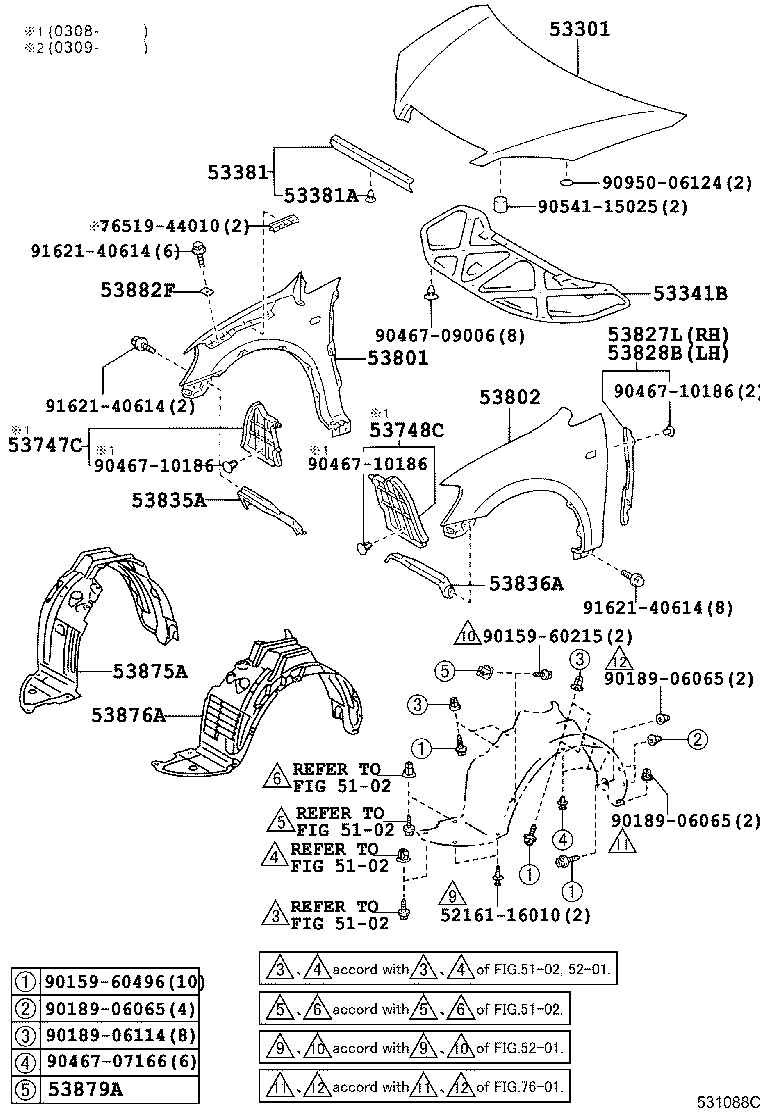

Click highlighted areas on diagram

diagram 5102 5102 5102 5102 5216116010 53301 53341B 53381 53381A 53747C 53748C 53801 53802 53827L 53828B 53835A 53836A 53875A 53876A 53879A 53882F 7651944010 9015960215 9015960496 9018906065 9018906065 9018906065 9018906114 9046707166 9046709006 9046710186 9046710186 9046710186 9054115025 9095006124 9162140614 9162140614 9162140614
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-44060

ACM2#,CLM20

 1
53301-44040

ACM20,CLM20

 1
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-44020

ACM20,CLM20

 1
53381-44020

ACM2#,CLM20

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

ACM2#,CLM20

 5
90467-08011

ACM20,CLM20

 5
53747C - PLATE, AIR SEALED, RH
53747-44010

ACM20,CLM20

 1
53747-44010

ACM2#,CLM20

 1
53748C - PLATE, AIR SEALED, LH
53748-44010

ACM2#,CLM20

 1
53748-44010

ACM20,CLM20

 1
53801 - FENDER SUB-ASSY, FRONT RH
53811-44060

ACM2#,CLM20

 1
53811-44060

ACM20,CLM20

 1
53802 - FENDER SUB-ASSY, FRONT LH
53812-44060

ACM20,CLM20

 1
53812-44060

ACM2#,CLM20

 1
53835A - BRACE, FRONT FENDER TO APRON, RH
53705-44010

ACM2#,CLM20

 1
53705-44010

ACM20,CLM20

 1
53835-44010

ACM20,CLM20

 1
53836A - BRACE, FRONT FENDER TO APRON, LH
53706-44010

ACM20,CLM20

 1
53706-44010

ACM2#,CLM20

 1
53836-44010

ACM20,CLM20

 1
53875A - LINER, FRONT FENDER, RH
53875-44050

ACM20,CLM20

 1
53805-44030

ACM2#,CLM20

 1
53876A - LINER, FRONT FENDER, LH
53806-44030

ACM2#,CLM20

 1
53876-44050

ACM20,CLM20

 1
53879A - RETAINER, FRONT FENDER LINER
53879-44010

ACM2#,CLM20

 2
53879-28010

ACM20,CLM20

 2
53882F - SEAL, FRONT FENDER
53882-16030

ACM2#,CLM20

 6
53882-16030

ACM20,CLM20

 6
Common parts
52161-16010
76519-44010
90159-60215
90159-60496
90189-06065
90189-06114
90467-07166
90467-09006
90467-10186
90541-15025
90950-06124
91621-40614
Linked diagrams
5102

(0310- )

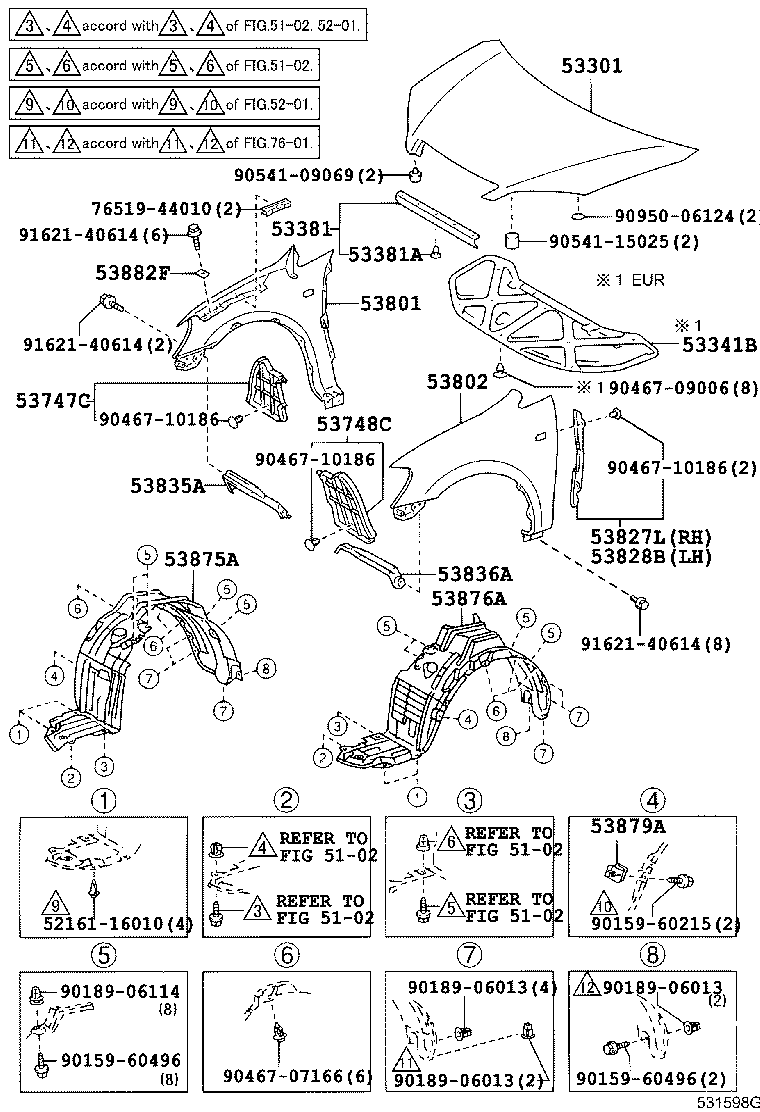

Click highlighted areas on diagram
