ACM20R-ARSEK (2001)

Toyota Picnic/Avensis Verso

Production May 2001 - Dec 2009
Engine 1AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0105- )ACM2#

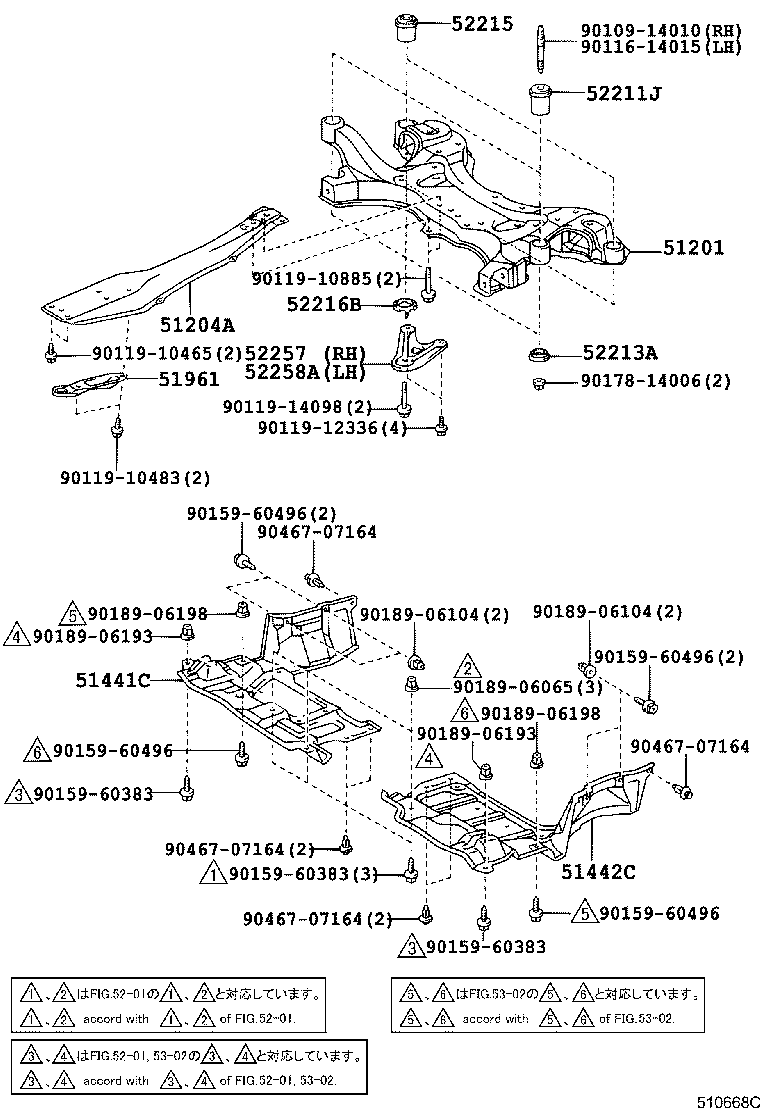

Click highlighted areas on diagram

diagram 51201 51204A 51441C 51442C 51961 52211J 52213A 52215 52216B 52257 52258A 9010914010 9011614015 9011910465 9011910483 9011910885 9011912336 9011914098 9015960383 9015960383 9015960383 9015960496 9015960496 9015960496 9015960496 9017814006 9018906065 9018906104 9018906104 9018906193 9018906193 9018906198 9018906198 9046707164 9046707164 9046707164 9046707164
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-44020

ACM2#,CLM20

 1
51201-44020

ACM20,CLM20

 1
51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER
51204-44010

ACM2#

 1
51204-44010

ACM20

 1
51441C - COVER, ENGINE UNDER, RH
51441-44030

ACM2#

 1
51441-44030

ACM20

 1
51442C - COVER, ENGINE UNDER, LH
51442-44040

ACM2#,CLM20

 1
51442-44040

ACM20,CLM20

 1
51961 - HOOK, NO.1
51963-32040

ACM20,CLM20

 1
51963-32040

ACM2#,CLM20

 1
52211J - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT
52211-44010

ACM20,CLM20

RH

 1
52211-44010

ACM2#,CLM20

RH

 1
52212-44010

ACM20,CLM20

LH

 1
52212-44010

ACM2#,CLM20

LH

 1
52213A - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT
52213-44010

ACM20,CLM20

 2
52213-44010

ACM2#,CLM20

 2
52215 - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR
52215-44010

ACM2#,CLM20

 2
52215-44010

ACM20,CLM20

 2
52216B - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR
52216-44010

ACM2#,CLM20

 2
52216-44010

ACM20,CLM20

 2
52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH
52257-44050

ACM20,CLM20

 1
52257-44050

ACM2#,CLM20

 1
52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH
52258-44050

ACM20,CLM20

 1
52258-44050

ACM2#,CLM20

 1
Common parts
90109-14010
90116-14015
90119-10465
90119-10483
90119-10885
90119-12336
90119-14098
90159-60383
90159-60496
90178-14006
90189-06065
90189-06104
90189-06193
90189-06198
90467-07164
