ACM20R-ARSEK (2001)
Toyota Picnic/Avensis Verso
(0105- )

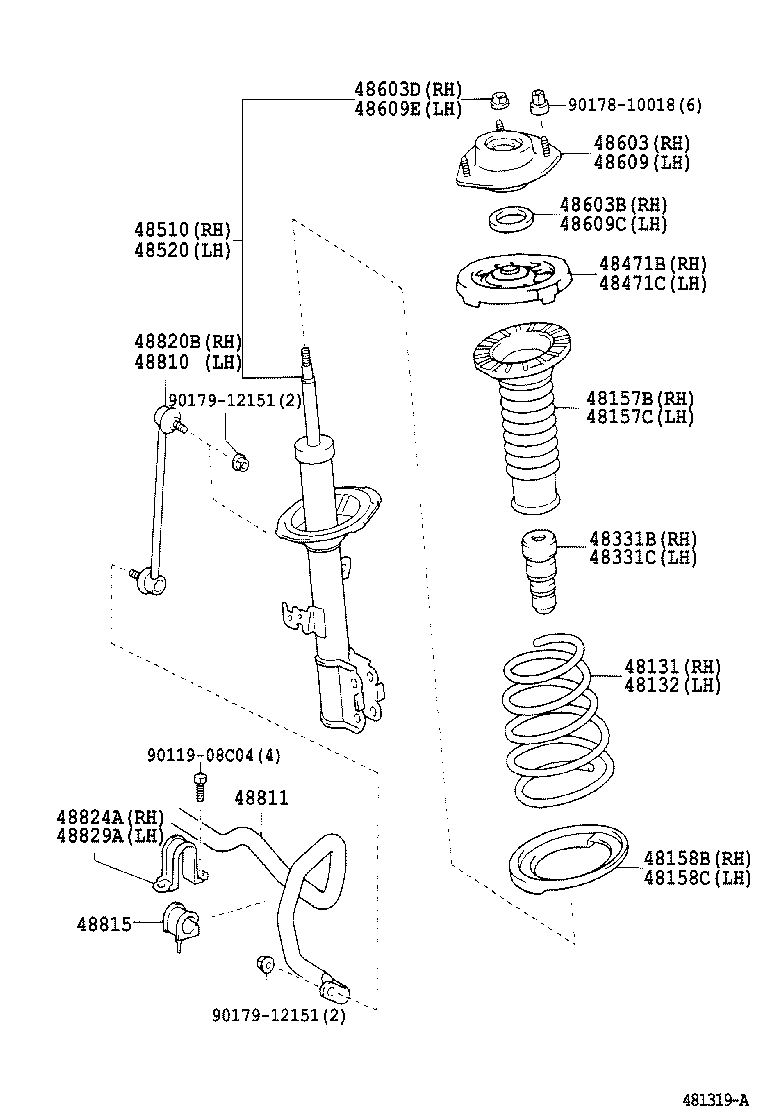

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-44080 |
ACM20..ATM |
1 | ||
| 48131-44080 |
ACM2#..ATM |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-44080 |
ACM20..ATM |
1 | ||
| 48131-44080 |
ACM2#..ATM |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-32050 |
ACM2#,CLM20 |
1 | ||
| 48157-32050 |
ACM20,CLM20 |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-32050 |
ACM2#,CLM20 |
1 | ||
| 48157-32050 |
ACM20,CLM20 |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-47010 |
ACM20,CLM20 |
1 | ||
| 48158-47010 |
ACM2#,CLM20 |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-47010 |
ACM2#,CLM20 |
1 | ||
| 48158-47010 |
ACM20,CLM20 |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-44030 |
ACM20,CLM20 |
1 | ||
| 48331-44030 |
ACM2#,CLM20 |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-44030 |
ACM2#,CLM20 |
1 | ||
| 48331-44030 |
ACM20,CLM20 |
1 | ||
| 48471B - SEAT, FRONT COIL SPRING, UPPER RH | ||||
| 48471-32050 |
ACM2#,CLM20 |
1 | ||
| 48471-32050 |
ACM20,CLM20 |
1 | ||
| 48471C - SEAT, FRONT COIL SPRING, UPPER LH | ||||
| 48471-32050 |
ACM2#,CLM20 |
1 | ||
| 48471-32050 |
ACM20,CLM20 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-49585 |
ACM2# MARK 48510-44180 |
1 | ||
| 48510-49315 |
ACM20 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-49425 |
ACM20 |
1 | ||
| 48520-49645 |
ACM2# MARK 48520-44180 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-44040 |
ACM20,CLM20 |
1 | ||
| 48609-44040 |
ACM2#,CLM20 |
1 | ||
| 48603B - BEARING(FOR FRONT SUSPENSION SUPPORT RH) | ||||
| 90903-63014 |
ACM20,CLM20 |
1 | ||
| 90903-63014 |
ACM2#,CLM20 |
1 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 90179-14015 |
ACM2#,CLM20 |
1 | ||
| 90179-14015 |
ACM20,CLM20 |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-44040 |
ACM2#,CLM20 |
1 | ||
| 48609-44040 |
ACM20,CLM20 |
1 | ||
| 48609C - BEARING(FOR FRONT SUSPENSION SUPPORT LH) | ||||
| 90903-63014 |
ACM2#,CLM20 |
1 | ||
| 90903-63014 |
ACM20,CLM20 |
1 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 90179-14015 |
ACM2#,CLM20 |
1 | ||
| 90179-14015 |
ACM20,CLM20 |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-44020 |
ACM20,CLM20 |
1 | ||
| 48820-44020 |
ACM2#,CLM20 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-44050 |
ACM2#,CLM20 |
1 | ||
| 48811-44050 |
ACM20,CLM20 |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-44030 |
ACM20,CLM20 |
2 | ||
| 48815-44030 |
ACM2#,CLM20 |
2 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-44020 |
ACM20,CLM20 |
1 | ||
| 48820-44020 |
ACM2#,CLM20 |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-44041 |
ACM20,CLM20 |
1 | ||
| 48824-44041 |
ACM2#,CLM20 |
1 | ||
| 48824-44040 |
ACM20,CLM20 |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-44040 |
ACM20,CLM20 |
1 | ||
| 48824-44041 |
ACM20,CLM20 |
1 | ||
| 48824-44041 |
ACM2#,CLM20 |
1 | ||
| Common parts | ||||
| 90119-08C04 | ||||
| 90178-10018 | ||||
| 90179-12151 | ||||
