ACM20R-ARSEK (2001)
Toyota Picnic/Avensis Verso
Production
May 2001
-
Dec 2009
Engine
1AZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0105- )RHD

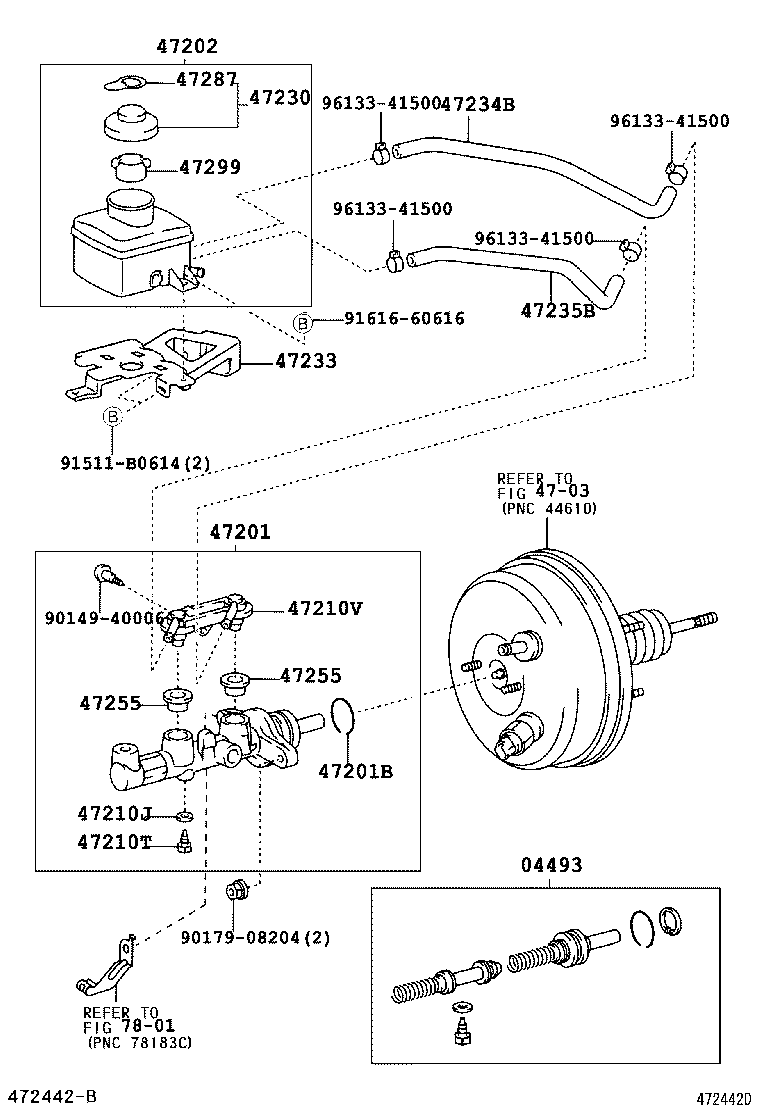

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-44020 |
ACM20..GEN |
1 | ||
| 04493-44020 |
ACM20,CLM20 |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-44130 |
ACM20..GEN |
1 | ||
| 47201-44130 |
ACM20,CLM20..RHD |
1 | ||
| 47201B - RING, O(FOR BRAKE MASTER CYLINDER) | ||||
| 90029-20059 |
ACM20,CLM20 |
1 | ||
| 90029-20059 |
ACM2#,CLM20 |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-44100 |
ACM2#..RHD..ATM |
1 | ||
| 47220-44050 |
ACM20..RHD..ATM |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
ACM20,CLM20 |
1 | ||
| 90029-43001 |
ACM2#,CLM20 |
1 | ||
| 90029-43001 |
ACM20,CLM20 |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06077 |
ACM2#,CLM20 |
1 | ||
| 90109-06077 |
ACM20,CLM20 |
1 | ||
| 47210V - UNION(FOR BRAKE MASTER CYLINDER) | ||||
| 90029-40402 |
ACM20,CLM20..RHD |
1 | ||
| 90029-40402 |
ACM2#,CLM20..RHD |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-20140 |
ACM2#,CLM20..RHD |
1 | ||
| 47230-20140 |
ACM20,CLM20..RHD |
1 | ||
| 47233 - BRACKET, RESERVOIR | ||||
| 47233-44060 |
ACM20,CLM20..RHD |
1 | ||
| 47233-44060 |
ACM2#,CLM20..RHD |
1 | ||
| 47234B - TUBE, RESERVOIR, NO.1 | ||||
| 47234-44060 |
ACM20,CLM20..RHD |
1 | ||
| 47234-44060 |
ACM2#,CLM20..RHD |
1 | ||
| 47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2 | ||||
| 47235-44060 |
ACM2#,CLM20..RHD |
1 | ||
| 47235-44060 |
ACM20,CLM20..RHD |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
ACM20,CLM20 |
2 | ||
| 47255-16010 |
ACM2#,CLM20 |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
ACM20,CLM20 |
2 | ||
| 47255-16010 |
ACM2#,CLM20 |
2 | ||
| 47287 - LABEL, BRAKE FLUID INFORMATION | ||||
| 47287-20010 |
ACM2#,CLM20 |
1 | ||
| 47287-20010 |
ACM20,CLM20 |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-20060 |
ACM20,CLM20 |
1 | ||
| 47299-20060 |
ACM2#,CLM20 |
1 | ||
| Common parts | ||||
| 90149-40006 | ||||
| 90179-08204 | ||||
| 91511-B0614 | ||||
| 91616-60616 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 4703 | ||||
| 7801 | ||||
