ACM20R-ARSEK (2001)
Toyota Picnic/Avensis Verso
Production
May 2001
-
Dec 2009
Engine
1AZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0105- )RHD..ATM

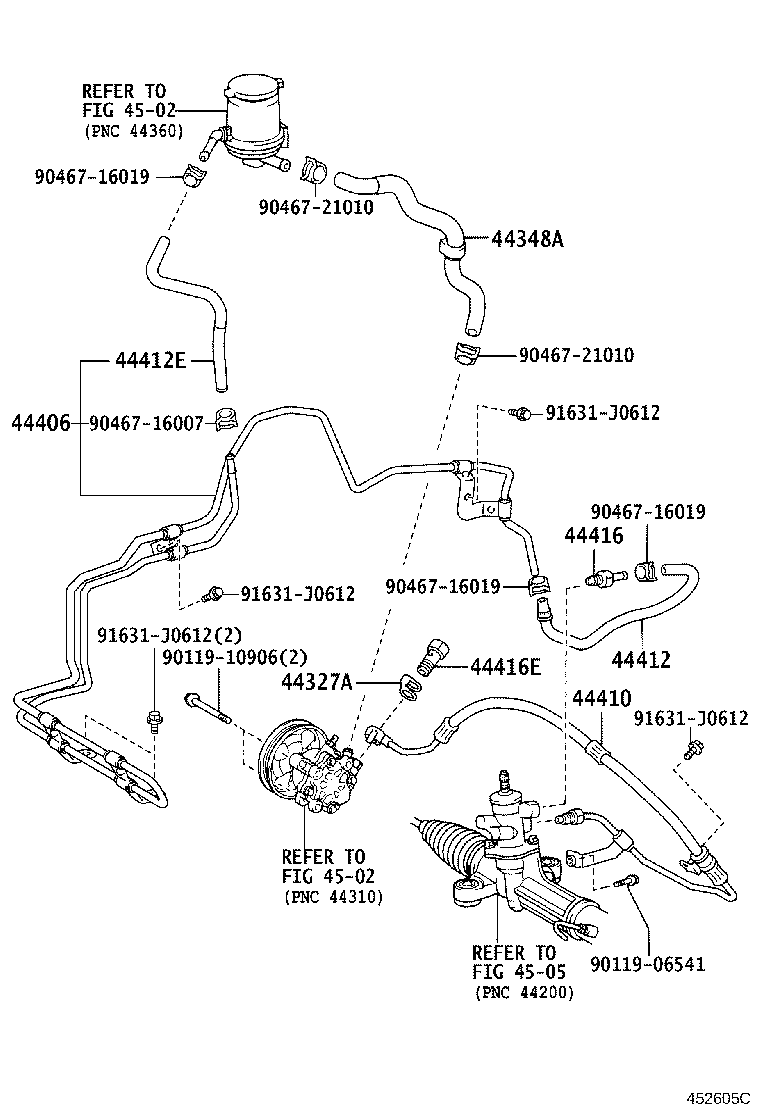

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-30030 |
ACM20,CLM20 |
1 | ||
| 44327-30030 |
ACM2#,CLM20 |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-44070 |
ACM20 |
1 | ||
| 44348-44070 |
ACM2# |
1 | ||
| 44406 - TUBE SUB-ASSY, RETURN | ||||
| 44406-44191 |
ACM2# |
1 | ||
| 44406-44190 |
ACM2# |
1 | ||
| 44406-44120 |
ACM20 |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-44090 |
ACM20..RHD..ATM |
1 | ||
| 44410-44090 |
ACM2#..RHD..ATM |
1 | ||
| 44412 - HOSE, RETURN | ||||
| 44412-44010 |
ACM2#,CLM20..RHD |
1 | ||
| 44412-44010 |
ACM20,CLM20..RHD |
1 | ||
| 44412-44011 |
ACM2# |
1 | ||
| 44412E - HOSE, RETURN, NO.2 | ||||
| 44412-44120 |
ACM20 |
1 | ||
| 44412-44170 |
ACM2# |
1 | ||
| 44412-44170 |
ACM2# |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-26080 |
ACM20,CLM20..RHD |
1 | ||
| 44416-44010 |
ACM2#,CLM20..RHD |
1 | ||
| 44416-44010 |
ACM20,CLM20..RHD |
1 | ||
| 44416E - BOLT, UNION(FOR RETURN TUBE) | ||||
| 96341-41603 |
ACM2#,CLM20 |
1 | ||
| 96341-41603 |
ACM20,CLM20 |
1 | ||
| Common parts | ||||
| 90119-06541 | ||||
| 90119-10906 | ||||
| 90467-16007 | ||||
| 90467-16019 | ||||
| 90467-21010 | ||||
| 91631-J0612 | ||||
| Linked diagrams | ||||
| 4502 | ||||
| 4505 | ||||
