ACM20R-ARSEK (2001)

Toyota Picnic/Avensis Verso

Production May 2001 - Dec 2009
Engine 1AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

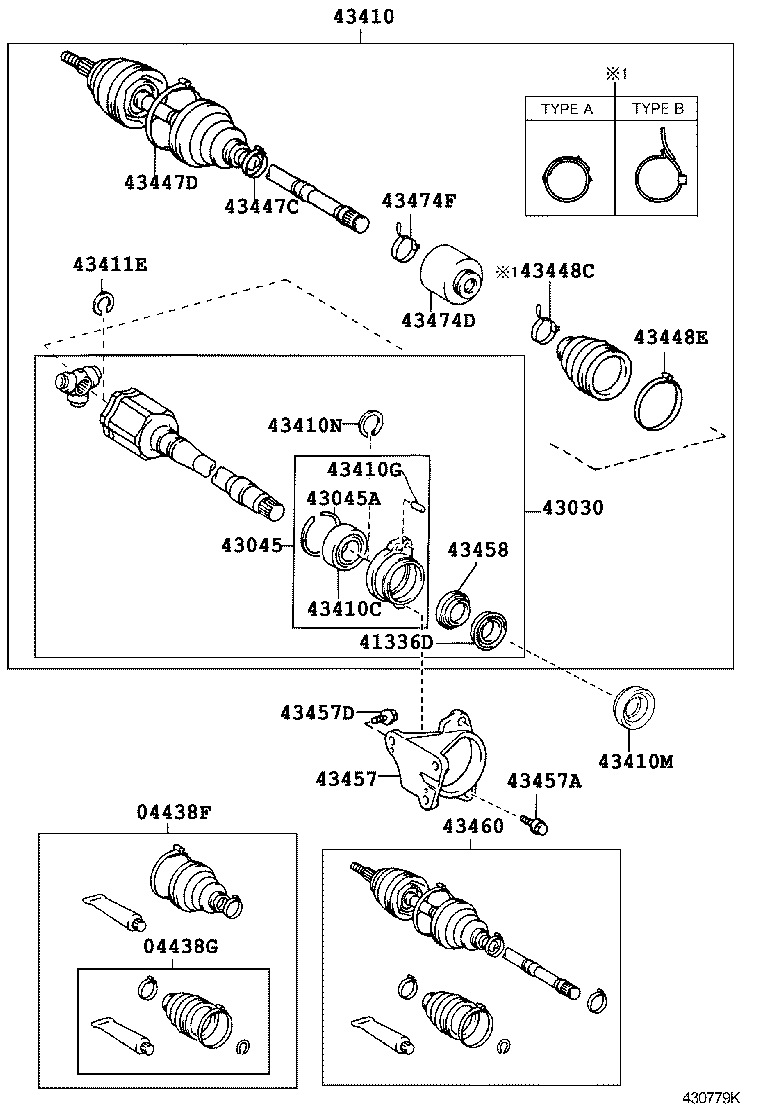

ILLUST NO. 1 OF 2(0105- )

Click highlighted areas on diagram

RH

diagram 04438F 04438G 41336D 43030 43045 43045A 43410 43410C 43410G 43410M 43410N 43411E 43447C 43447D 43448C 43448E 43457 43457A 43457D 43458 43460 43474D 43474F
Part # Description Qty Price
04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04438-28052

ACM2#

 1
04438-28052

ACM20

 1
04438-28051

ACM20

 1
04427-44020

ACM2#

 1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04438-28041

ACM20,CLM20

 1
04438-28040

ACM20,CLM20

 1
04438-42180

ACM2#

 1
04438-42180

ACM2#

 1
04437-44030

ACM2#

 1
41336D - COVER, FRONT DRIVE SHAFT DUST, RH
41336-12020

ACM20,CLM20

 1
41336-12020

ACM2#,CLM20

 1
43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH
43030-44021

ACM2#,CLM20

 1
43030-44020

ACM20,CLM20

 1
43030-44021

ACM20,CLM20

 1
43045 - CASE SUB ASSY, DRIVE SHAFT BEARING
43045-20050

ACM2#,CLM20

 1
43045-64020

ACM2#,CLM20

 1
43045-20050

ACM20,CLM20

 1
43045A - RING, SNAP (FOR CASE SUB ASSY, DRIVE SHAFT BEARING)
90520-69002

ACM20,CLM20

 1
90520-69002

ACM2#,CLM20

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-44040

ACM2#

 1
43410-44040

ACM20

 1
43410C - BEARING (FOR FRONT DRIVE SHAFT)
90363-41003

ACM2#,CLM20

 1
90363-41002

ACM2#,CLM20

 1
90363-41002

ACM20,CLM20

 1
43410G - PIN, STRAIGHT (FOR FRONT DRIVE SHAFT)
90250-06003

ACM20,CLM20

 1
90250-06003

ACM2#,CLM20

 1
43410M - OIL SEAL, FRONT DRIVE SHAFT, RH
90311-40026

ACM20..ATM

 1
90311-40031

ACM2#

 1
90311-40026

ACM2#..ATM

 1
43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
90520-38015

ACM20,CLM20

 1
90520-38015

ACM2#,CLM20

 1
43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
43425-28010

ACM20,CLM20

 1
43425-28010

ACM2#,CLM20

 1
43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-20040

ACM20

 1
42345-20040

ACM2#

 1
43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-28020

ACM20

 1
42345-28020

ACM2#

 1
43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
90949-01559

ACM20,CLM20

 1
90949-01559

ACM20,CLM20

TYPE B:REFER TO ILLUSTRATION

 1
90949-01559

ACM2#,CLM20

TYPE B:REFER ILLUST.

 1
42345-42010

ACM2#,CLM20

TYPE A:REFER ILLUST.

 1
42345-42010

ACM20,CLM20

TYPE A:REFER TO ILLUSTRATION

 1
43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-12160

ACM20,CLM20

 1
90949-01076

ACM20,CLM20

 1
42345-12160

ACM2#,CLM20

 1
43457 - BRACKET, DRIVE SHAFT BEARING
43457-28020

ACM20..ATM

 1
43457-28020

ACM2#..ATM

 1
43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
90105-10361

ACM2#,CLM20

*10-1.25PX22-19.5

 2
90105-10285

ACM20,CLM20

*10-1.25PX22-19.5

 2
43457D - BOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
90105-10381

ACM2#

 3
90105-10381

ACM20

 3
43458 - COVER, FRONT DRIVE SHAFT DUST
43458-12010

ACM2#,CLM20

 1
43458-12010

ACM20,CLM20

 1
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43460-49126

ACM20

 1
43460-49295

ACM2#

 1
43460-49126

ACM2#

 1
43460-49125

ACM20

 1
43460-49126

ACM2#

 1
43474D - DAMPER, FRONT DRIVE SHAFT, RH
43474-28010

ACM20

 1
43474-28010

ACM2#

 1
43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
42345-14010

ACM2#,CLM20

 1
42345-14010

ACM20,CLM20

 1

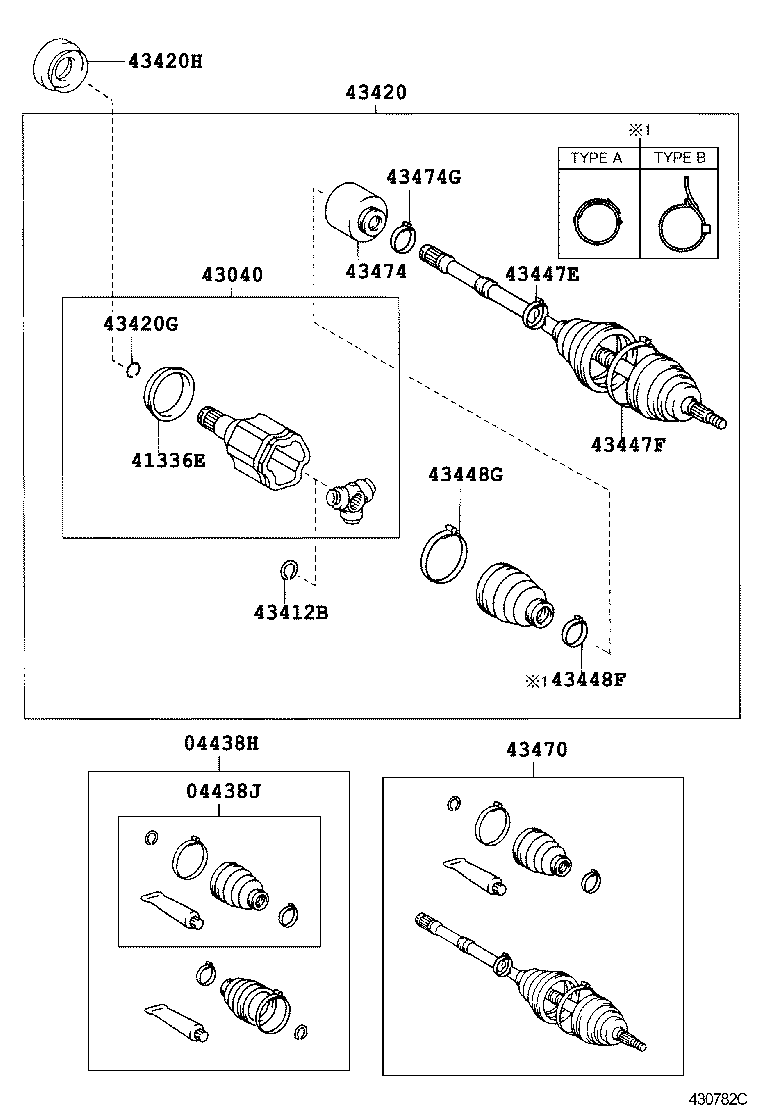

ILLUST NO. 2 OF 2(0105- )

Click highlighted areas on diagram

LH

diagram 04438H 04438J 41336E 43040 43412B 43420 43420G 43420H 43447E 43447F 43448F 43448G 43470 43474 43474G
Part # Description Qty Price
04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04438-28052

ACM20

 1
04438-28052

ACM2#

 1
04428-42070

ACM2#

 1
04438-28051

ACM20

 1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04438-28041

ACM2#,CLM20

 1
04438-28040

ACM20,CLM20

 1
04438-28041

ACM20,CLM20

 1
04438-42180

ACM2#

 1
41336E - COVER, FRONT DRIVE SHAFT DUST, LH
41336-28020

ACM20,CLM20

 1
41336-28020

ACM2#,CLM20

 1
43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH
43040-28010

ACM20,CLM20

 1
43040-28011

ACM20,CLM20

 1
43040-28011

ACM2#,CLM20

 1
43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
43425-28010

ACM20,CLM20

 1
43425-28010

ACM2#,CLM20

 1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-44040

ACM2#..ATM

 1
43420-44040

ACM20..ATM

 1
43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)
90521-33002

ACM20,CLM20

 1
90521-33002

ACM2#,CLM20

 1
43420H - OIL SEAL, FRONT DRIVE SHAFT, LH
90311-50033

ACM2#

 1
90311-50028

ACM2#..ATM

 1
90311-50028

ACM20..ATM

 1
43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-20040

ACM20

 1
42345-20040

ACM2#

 1
43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-28020

ACM2#

 1
42345-28020

ACM20

 1
43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
90949-01559

ACM20,CLM20

 1
42345-42010

ACM2#,CLM20

TYPE A:REFER ILLUST.

 1
90949-01559

ACM20,CLM20

TYPE B:REFER TO ILLUSTRATION

 1
42345-42010

ACM20,CLM20

TYPE A:REFER TO ILLUSTRATION

 1
90949-01559

ACM2#,CLM20

TYPE B:REFER ILLUST.

 1
43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-12160

ACM2#,CLM20

 1
90949-01076

ACM20,CLM20

 1
42345-12160

ACM20,CLM20

 1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-29635

ACM20

 1
43470-29636

ACM20

 1
43470-80064

ACM2#..ARL,GEN

 1
43470-80064

ACM2#

 1
43474 - DAMPER, DRIVE SHAFT
43474-44010

CLM20;ACM20..ATM

 1
43474-44010

CLM20;ACM2#..ATM

 1
43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-14010

CLM20;ACM2#..ATM

 1
42345-14010

CLM20;ACM20..ATM

 1
