ACM20R-ARSEK (2001)

Toyota Picnic/Avensis Verso

Production May 2001 - Dec 2009
Engine 1AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0105- )ATM

Click highlighted areas on diagram

U241E

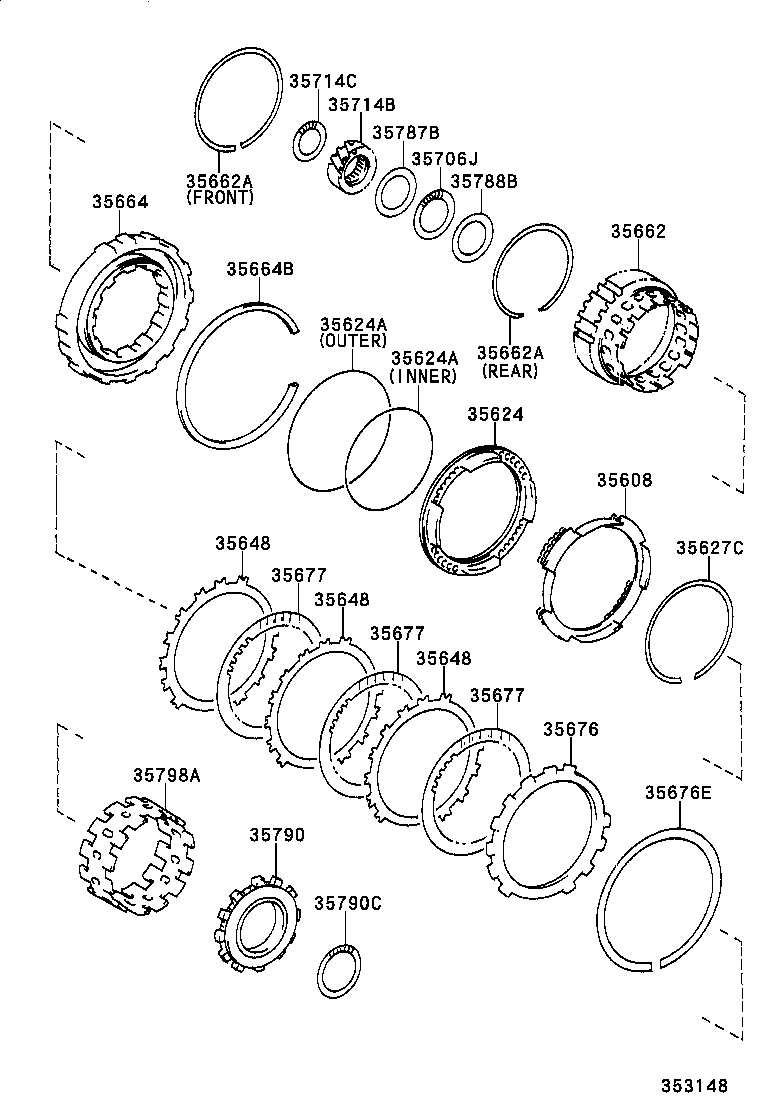

diagram 35608 35624 35624A 35624A 35627C 35648 35648 35648 35662 35662A 35662A 35664 35664B 35676 35676E 35677 35677 35677 35706J 35714B 35714C 35787B 35788B 35790 35790C 35798A
Part # Description Qty Price
35608 - SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN
35608-21010

ACM20..ATM

 1
35608-21010

ACM2#..ATM

 1
35624 - PISTON, 2ND BRAKE
35624-48010

ACM20..ATM

 1
35624-33030

ACM2#..ATM

 1
35624A - RING, O (FOR 2ND BRAKE PISTON)
90301-99093

ACM20..ATM

OUTER

 1
90301-99093

ACM2#..ATM

OUTER

 1
90301-99095

ACM20..ATM

INNER

 1
90301-99095

ACM2#..ATM

INNER

 1
35624A - RING, O (FOR 2ND BRAKE PISTON)
90301-99093

ACM20..ATM

OUTER

 1
90301-99093

ACM2#..ATM

OUTER

 1
90301-99095

ACM20..ATM

INNER

 1
90301-99095

ACM2#..ATM

INNER

 1
35627C - RING, SHAFT SNAP(FOR 2ND BRAKE PISTON RETURN SPRING SEA
90520-99036

ACM20..ATM

 1
90520-99036

ACM2#..ATM

 1
35648 - PLATE, CLUTCH (FOR 2ND BRAKE)
35691-21010

ACM2#..ATM

T=2.0

 3
35691-21010

ACM20..ATM

T=2.0

 3
35648 - PLATE, CLUTCH (FOR 2ND BRAKE)
35691-21010

ACM2#..ATM

T=2.0

 3
35691-21010

ACM20..ATM

T=2.0

 3
35648 - PLATE, CLUTCH (FOR 2ND BRAKE)
35691-21010

ACM2#..ATM

T=2.0

 3
35691-21010

ACM20..ATM

T=2.0

 3
35662 - HUB, BRAKE
35662-21010

ACM20..ATM

 1
35662-21010

ACM2#..ATM

 1
35662A - RING, SNAP (FOR BRAKE HUB)
90520-99033

ACM20..ATM

FRONT

 1
90520-99024

ACM20..ATM

REAR

 1
90520-99033

ACM2#..ATM

FRONT

 1
90520-99024

ACM2#..ATM

REAR

 1
35662A - RING, SNAP (FOR BRAKE HUB)
90520-99033

ACM20..ATM

FRONT

 1
90520-99024

ACM20..ATM

REAR

 1
90520-99033

ACM2#..ATM

FRONT

 1
90520-99024

ACM2#..ATM

REAR

 1
35664 - CYLINDER, 2ND BRAKE
35664-33010

ACM2#..ATM

 1
35664-21011

ACM20..ATM

 1
35664B - RING, HOLE SNAP (FOR 2ND BRAKE CYLINDER)
90520-99027

ACM20..ATM

 1
90520-99027

ACM2#..ATM

 1
35676 - FLANGE, BRAKE (FOR 2ND BRAKE)
35676-21080

ACM20..ATM

T=3.1,MARK 2

 1
35676-21090

ACM20..ATM

T=3.2,MARK 3

 1
35676-21110

ACM20..ATM

T=3.4,MARK 5

 1
35676-21070

ACM2#..ATM

T=3.0,MARK 1

 1
35676-21070

ACM20..ATM

T=3.0,MARK 1

 1
35676-21110

ACM2#..ATM

T=3.4,MARK 5

 1
35676-21080

ACM2#..ATM

T=3.1,MARK 2

 1
35676-21130

ACM20..ATM

T=3.6,MARK 7

 1
35676-21100

ACM20..ATM

T=3.3,MARK 4

 1
35676-21130

ACM2#..ATM

T=3.6,MARK 7

 1
35676-21120

ACM20..ATM

T=3.5,MARK 6

 1
35676-21120

ACM2#..ATM

T=3.5,MARK 6

 1
35676-21090

ACM2#..ATM

T=3.2,MARK 3

 1
35676-21100

ACM2#..ATM

T=3.3,MARK 4

 1
35676-21010

ACM2#..ATM

T=3.7,MARK 8

 1
35676-21020

ACM2#..ATM

T=2.9,MARK 0

 1
35676E - RING, HOLE SNAP (FOR 2ND BRAKE)
90520-99026

ACM20..ATM

 1
90520-99026

ACM2#..ATM

 1
35677 - DISC, CLUTCH (FOR 2ND BRAKE)
35681-21010

ACM20..ATM

 3
35681-21010

ACM2#..ATM

 3
35677 - DISC, CLUTCH (FOR 2ND BRAKE)
35681-21010

ACM20..ATM

 3
35681-21010

ACM2#..ATM

 3
35677 - DISC, CLUTCH (FOR 2ND BRAKE)
35681-21010

ACM20..ATM

 3
35681-21010

ACM2#..ATM

 3
35706J - BEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)
90374-38002

ACM2#..ATM

 1
90374-38002

ACM20..ATM

 1
35714B - GEAR, INPUT SUN
35714-21010

ACM20..ATM

 1
35714-21010

ACM2#..ATM

 1
35714C - BEARING, THRUST NEEDLE ROLLER (FOR INPUT SUN GEAR)
90374-34006

ACM20..ATM

 1
90374-34006

ACM2#..ATM

 1
35787B - RACE, THRUST BEARING, NO.2
35787-21010

ACM2#..ATM

 1
35787-21010

ACM20..ATM

 1
35788B - RACE, THRUST BEARING, NO.3
35788-21010

ACM2#..ATM

 1
35788-21010

ACM20..ATM

 1
35790 - CLUTCH ASSY, 1 WAY
35790-21010

ACM20..ATM

 1
35790-33020

ACM20..ATM

 1
35790-33020

ACM2#..ATM

 1
35790C - BEARING, THRUST NEEDLE ROLLER
90374-53001

ACM2#..ATM

 1
90374-53001

ACM20..ATM

 1
35798A - SLEEVE, 1WAY CLUTCH, OUTER
35798-21011

ACM20..ATM

 1
35798-21011

ACM2#..ATM

 1
