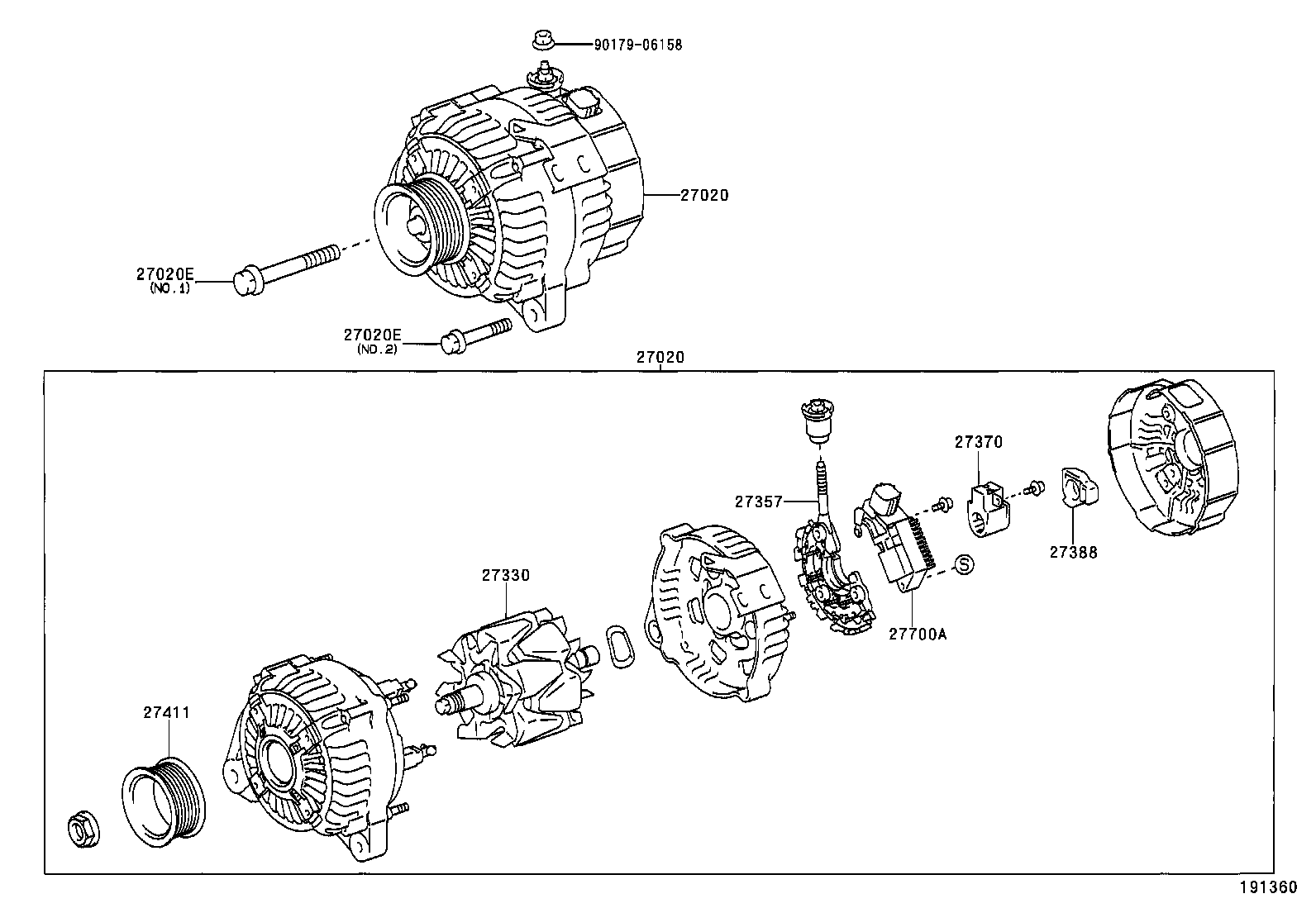

ACM20R-ARSEK (2001)
Toyota Picnic/Avensis Verso
(0105-0310)1AZFE
12V 100A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-28150 |
1AZFE..ACM20..ARL,GEN 12V 100A |
1 | ||
| 27060-28260 |
1AZFE..ACM20 12V 100A |
1 | ||
| 27020 - ALTERNATOR ASSY | ||||
| 27060-28150 |
1AZFE..ACM20..ARL,GEN 12V 100A |
1 | ||
| 27060-28260 |
1AZFE..ACM20 12V 100A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 91512-81085 |
1AZFE..ACM20 NO.1 |
1 | ||
| 91511-60840 |
1AZFE..ACM20 NO.2 |
1 | ||
| 91512-81085 |
1AZFE,2AZFE..ACM2# NO.1 |
1 | ||
| 91551-80840 |
1AZFE,2AZFE..ACM2# NO.2 |
1 | ||
| 91511-J0840 |
1AZFE,2AZFE..ACM2# NO.2 |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 91512-81085 |
1AZFE..ACM20 NO.1 |
1 | ||
| 91511-60840 |
1AZFE..ACM20 NO.2 |
1 | ||
| 91512-81085 |
1AZFE,2AZFE..ACM2# NO.1 |
1 | ||
| 91551-80840 |
1AZFE,2AZFE..ACM2# NO.2 |
1 | ||
| 91511-J0840 |
1AZFE,2AZFE..ACM2# NO.2 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-20070 |
1AZFE..ACM20 |
1 | ||
| 27330-30070 |
1AZFE..ACM20 |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-70450 |
1AZFE..ACM20 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
1AZFE..ACM20 |
1 | ||
| 27370-58460 |
1AZFE..ACM20 |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-42010 |
1AZFE..ACM20 |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-28060 |
1AZFE,2AZFE..ACM2# |
1 | ||
| 27411-28060 |
1AZFE..ACM20 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-28040 |
1AZFE..ACM20..ARL,GEN |
1 | ||
| Common parts | ||||
| 90179-06158 | ||||

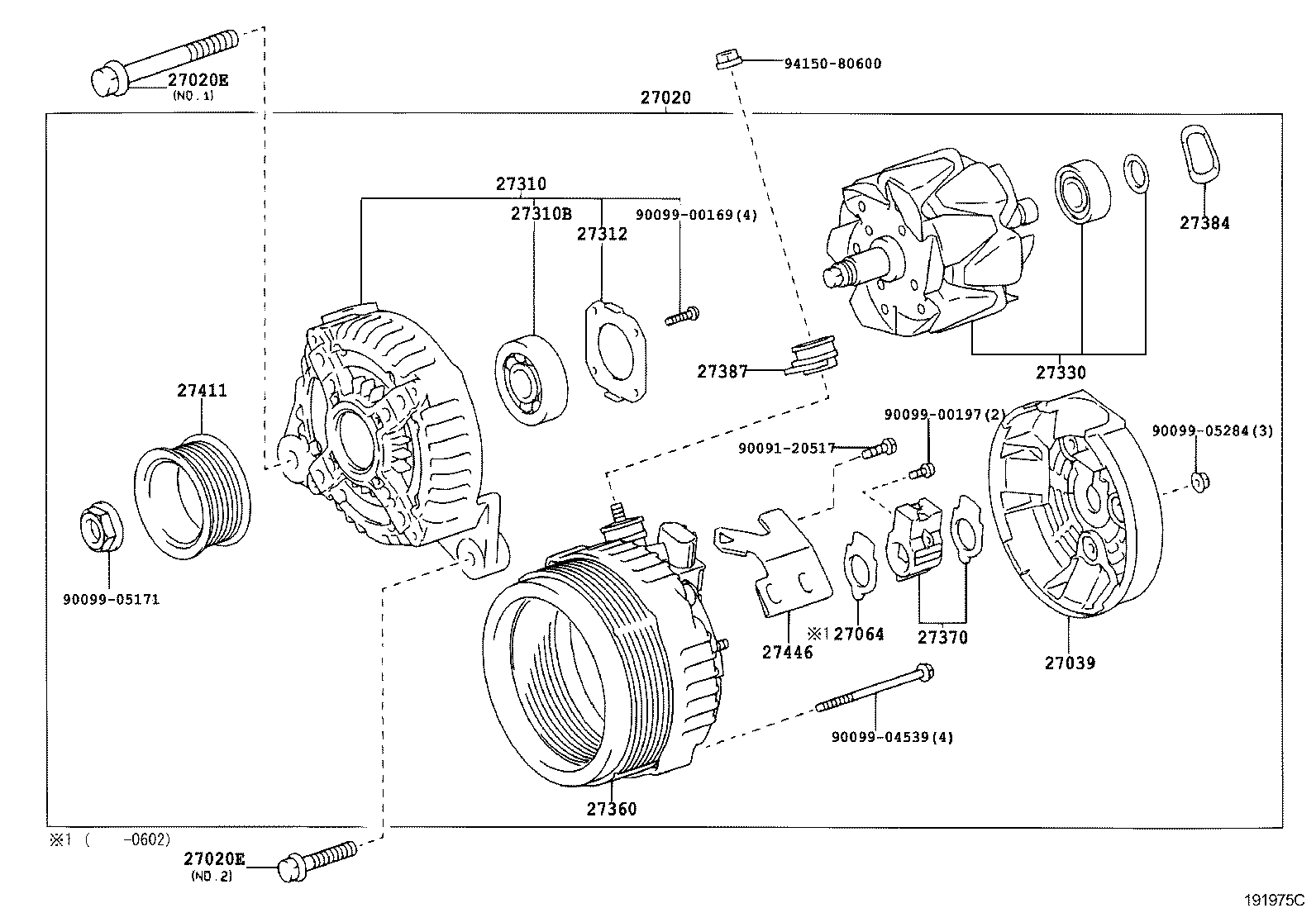

(0310- )1AZFE,2AZFE
12V 100A,130A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-28150 |
1AZFE..ACM20..ARL,GEN 12V 100A |
1 | ||
| 27060-28260 |
1AZFE..ACM20 12V 100A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 91512-81085 |
1AZFE..ACM20 NO.1 |
1 | ||
| 91511-60840 |
1AZFE..ACM20 NO.2 |
1 | ||
| 91512-81085 |
1AZFE,2AZFE..ACM2# NO.1 |
1 | ||
| 91551-80840 |
1AZFE,2AZFE..ACM2# NO.2 |
1 | ||
| 91511-J0840 |
1AZFE,2AZFE..ACM2# NO.2 |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 91512-81085 |
1AZFE..ACM20 NO.1 |
1 | ||
| 91511-60840 |
1AZFE..ACM20 NO.2 |
1 | ||
| 91512-81085 |
1AZFE,2AZFE..ACM2# NO.1 |
1 | ||
| 91551-80840 |
1AZFE,2AZFE..ACM2# NO.2 |
1 | ||
| 91511-J0840 |
1AZFE,2AZFE..ACM2# NO.2 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-27060 |
1AZFE..ACM20 |
1 | ||
| 27039-31390 |
1AZFE,2AZFE..ACM2# |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-28120 |
1AZFE..ACM20 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10142 |
1AZFE,1CDFTV..ACM20,CLM20 |
1 | ||
| 90099-10223 |
1AZFE..ACM20 |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
1AZFE,2AZFE,1CDFTV..ACM2#,CLM20 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-20070 |
1AZFE..ACM20 |
1 | ||
| 27330-30070 |
1AZFE..ACM20 |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-28200 |
1AZFE..ACM20 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
1AZFE..ACM20 |
1 | ||
| 27370-58460 |
1AZFE..ACM20 |
1 | ||
| 27384 - WASHER | ||||
| 27384-50030 |
1AZFE,2AZFE,1CDFTV..ACM2#,CLM20 |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-20130 |
1AZFE,2AZFE,1CDFTV..ACM2#,CLM20 |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-28060 |
1AZFE,2AZFE..ACM2# |
1 | ||
| 27411-28060 |
1AZFE..ACM20 |
1 | ||
| 27446 - CLIP, ALTERNATOR CORD | ||||
| 27446-28120 |
1AZFE,2AZFE..ACM2# |
1 | ||
| Common parts | ||||
| 90091-20517 | ||||
| 90099-00169 | ||||
| 90099-00197 | ||||
| 90099-04539 | ||||
| 90099-05171 | ||||
| 90099-05284 | ||||
| 94150-80600 | ||||
