ACM20R-ARSEK (2001)
Toyota Picnic/Avensis Verso
Production
May 2001
-
Dec 2009
Engine
1AZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0105- )1AZFE,2AZFE

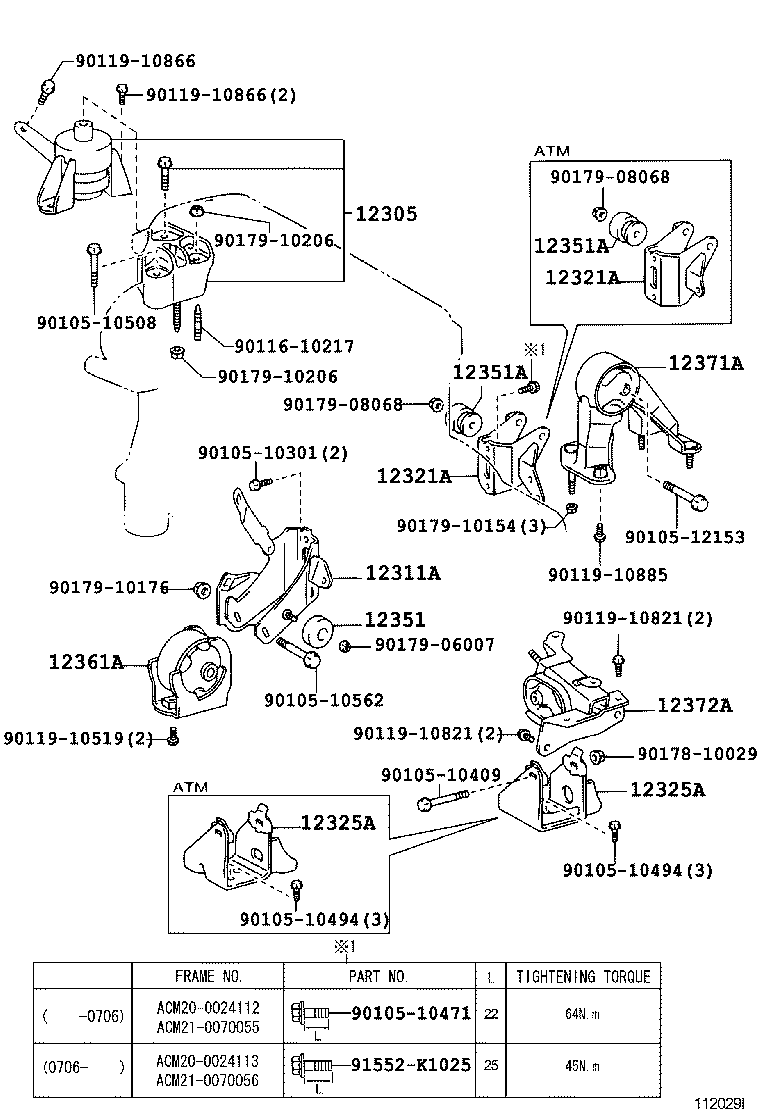

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH | ||||
| 12305-28080 |
1AZFE,2AZFE..ACM2# |
1 | ||
| 12305-28080 |
1AZFE..ACM20 |
1 | ||
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-28090 |
1AZFE..ACM20 |
1 | ||
| 12311-28110 |
1AZFE,2AZFE..ACM2# |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-28090 |
1AZFE,2AZFE..ACM2#..ATM |
1 | ||
| 12321-28090 |
1AZFE..ACM20..ATM |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-28090 |
1AZFE,2AZFE..ACM2#..ATM |
1 | ||
| 12321-28090 |
1AZFE..ACM20..ATM |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-28070 |
1AZFE..ACM20..ATM |
1 | ||
| 12325-28070 |
1AZFE,2AZFE..ACM2#..ATM |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-28070 |
1AZFE..ACM20..ATM |
1 | ||
| 12325-28070 |
1AZFE,2AZFE..ACM2#..ATM |
1 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-64020 |
1AZFE,2AZFE..ACM2# |
1 | ||
| 12351-64020 |
1AZFE..ACM20 |
1 | ||
| 12351A - DAMPER, ENGINE MOUNTING(FOR INSULATOR) | ||||
| 12351-27030 |
1AZFE..ACM20 |
1 | ||
| 12351-27030 |
1AZFE,2AZFE..ACM2# |
1 | ||
| 12351A - DAMPER, ENGINE MOUNTING(FOR INSULATOR) | ||||
| 12351-27030 |
1AZFE..ACM20 |
1 | ||
| 12351-27030 |
1AZFE,2AZFE..ACM2# |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-21020 |
1AZFE..ACM20..ATM |
1 | ||
| 12361-28200 |
1AZFE..ACM20..GEN |
1 | ||
| 12361-21020 |
1AZFE..ACM20..GEN |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-28150 |
1AZFE..ACM20..GEN |
1 | ||
| 12371-28060 |
1AZFE..ACM20 |
1 | ||
| 12371-28060 |
1AZFE..ACM20..GEN |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-28150 |
1AZFE..ACM20..GEN |
1 | ||
| 12372-28150 |
1AZFE..ACM20..ATM |
1 | ||
| 12372-28100 |
1AZFE..ACM20..GEN |
1 | ||
| Common parts | ||||
| 90105-10301 | ||||
| 90105-10409 | ||||
| 90105-10471 | ||||
| 90105-10494 | ||||
| 90105-10508 | ||||
| 90105-10562 | ||||
| 90105-12153 | ||||
| 90116-10217 | ||||
| 90119-10519 | ||||
| 90119-10821 | ||||
| 90119-10866 | ||||
| 90119-10885 | ||||
| 90178-10029 | ||||
| 90179-06007 | ||||
| 90179-08068 | ||||
| 90179-10154 | ||||
| 90179-10176 | ||||
| 90179-10206 | ||||
| 91552-K1025 | ||||
