ACM20R-ARSDKW (2001)

Toyota Picnic/Avensis Verso

Production May 2001 - Jul 2005
Engine 1AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0105-0507)EUR ; (0105- )ARL,GEN

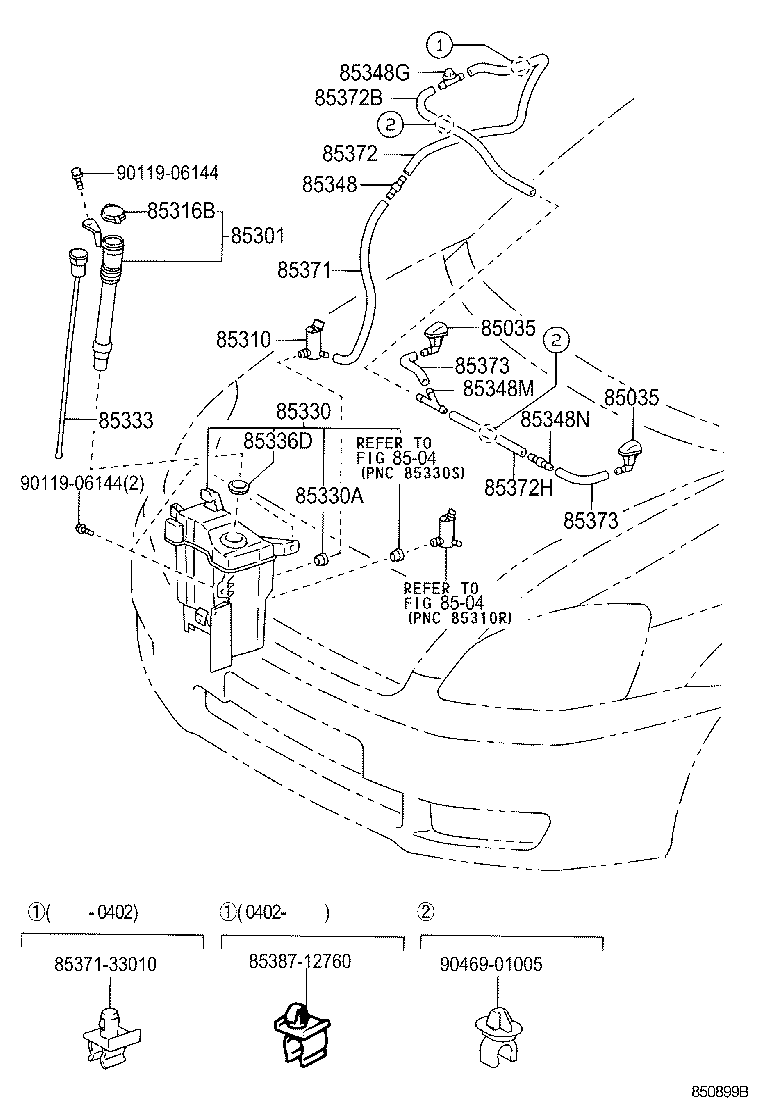

Click highlighted areas on diagram

diagram 85035 85035 8504 8504 85301 85310 85316B 85330 85330A 85333 85336D 85348 85348G 85348M 85348N 85371 8537133010 85372 85372B 85372H 85373 85373 8538712760 9011906144 9011906144 9046901005
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-44010

ACM20,CLM20..RHD

 2
85381-44010

ACM2#,CLM20

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-44010

ACM20,CLM20..RHD

 2
85381-44010

ACM2#,CLM20

 2
85301 - INLET SUB-ASSY, WASHER
85301-44010

ACM2#,CLM20

 1
85301-44010

ACM20,CLM20

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-33020

ACM20,CLM20..EUR

 1
85330-33020

ACM20,CLM20..EUR

 1
85316B - CAP, WASHER, INLET
85316-26060

ACM20,CLM20

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-44090

ACM20,CLM20

 1
85315-44090

ACM2#,CLM20

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

ACM20,CLM20..EUR

 1
90099-32089

ACM20,CLM20

 1
85333 - FILTER, WINDSHIELD WASHER JAR
85312-44020

ACM2#,CLM20

 1
85312-44020

ACM20,CLM20

 1
85336D - PACKING, WINDSHIELD WASHER JAR
85336-30160

ACM20,CLM20

 1
85336-30160

ACM20,CLM20..EUR

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85334-22470

ACM20,CLM20..EUR

 1
85334-22470

ACM20,CLM20..EUR

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85375-17050

ACM2#,CLM20

 1
85375-17050

ACM20,CLM20

 1
85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3
85348-14390

ACM20,CLM20

 1
85348-14390

ACM2#,CLM20

 1
85348N - JOINT, WINDSHIELD WASHER HOSE, NO.4
85349-89122

ACM20,CLM20

 1
85349-89122

ACM2#,CLM20

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33075

ACM20,CLM20..EUR

*H,L=710

 1
90099-33075

ACM20,CLM20..EUR

*H,L=710

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

ACM20,CLM20..EUR

*H,L=700

 1
90099-33080

ACM20,CLM20

*H,L=700

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90099-33080

ACM20,CLM20..EUR

*H,L=580

 1
90099-33080

ACM20,CLM20..EUR

*H,L=580

 1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90099-33080

ACM20,CLM20..EUR

*H,L=320

 1
90099-33080

ACM20,CLM20..EUR

*H,L=320

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

ACM20,CLM20

*H,L=110

 2
90099-33080

ACM2#,CLM20

*H,L=110

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

ACM20,CLM20

*H,L=110

 2
90099-33080

ACM2#,CLM20

*H,L=110

 2
Common parts
85371-33010
85387-12760
90119-06144
90469-01005
Linked diagrams
8504
