Toyota Picnic/avensis verso ACM20 CLUTCH PEDAL & FLEXIBLE HOSE

Manufacturers Home
Toyota
GR
PICNIC/AVENSIS VERSO
ACM20L-ANMDKW (2001)
3102 - CLUTCH PEDAL & FLEXIBLE HOSE

ACM20L-ANMDKW (2001)

Toyota Picnic/Avensis Verso

Production May 2001 - Jul 2005

Engine 1AZFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0105- )MTM

Click highlighted areas on diagram

Part #	Description	Period	Qty
31301 - PEDAL SUB-ASSY, CLUTCH
31301-44040	ACM20,CLM20..LHD..MTM	10/2003 - 07/2005	1
31301-44040	ACM20,CLM20..LHD..MTM	05/2001 - 10/2003	1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036	ACM20,CLM20..MTM	10/2003 - 07/2005	1
90541-06036	ACM20,CLM20..MTM	05/2001 - 10/2003	1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015	ACM20,CLM20..MTM	05/2001 - 10/2003	2
90386-13015	ACM20,CLM20..MTM	10/2003 - 07/2005	2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015	ACM20,CLM20..MTM	05/2001 - 10/2003	2
90386-13015	ACM20,CLM20..MTM	10/2003 - 07/2005	2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369	ACM20,CLM20..MTM	05/2001 - 10/2003	1
90101-10369	ACM20,CLM20..MTM	10/2003 - 07/2005	1
31301P - BUSH(FOR CLUTCH PEDAL TURNOVER)
90386-05017	ACM20,CLM20..LHD..MTM	10/2003 - 07/2005	1
90386-05017	ACM20,CLM20..LHD..MTM	05/2001 - 10/2003	1
31301R - SPRING, COMPRESSION(FOR TURN OVER SPRING SEAT)
90959-03346	ACM20..LHD..MTM	10/2003 - 07/2005	1
90959-03346	ACM20..LHD..MTM	05/2001 - 10/2003	1
31321 - PAD, CLUTCH PEDAL
31321-52010	ACM20,CLM20..MTM	10/2003 - 07/2005	1
31321-52010	ACM20,CLM20..MTM	05/2001 - 10/2003	1
31324 - SHAFT, CLUTCH PEDAL
90101-10177	ACM20,CLM20..LHD..MTM	05/2001 - 10/2003	1
90101-10177	ACM20,CLM20..LHD..MTM	10/2003 - 07/2005	1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10116	ACM20,CLM20..LHD..MTM	10/2003 - 07/2005	1
90387-10116	ACM20,CLM20..LHD..MTM	05/2001 - 10/2003	1
31353 - HOLDER, CLUTCH PEDAL SPRING
31353-14010	ACM20,CLM20..LHD..MTM	10/2003 - 07/2005	1
31353-14010	ACM20,CLM20..LHD..MTM	05/2001 - 10/2003	1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
47148-35030	ACM20,CLM20..MTM L=28.5	10/2003 - 07/2005	1
47148-35030	ACM20,CLM20..MTM L=28.5	05/2001 - 10/2003	1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08036	ACM20,CLM20..MTM	05/2001 - 10/2003	1
90386-08036	ACM20,CLM20..MTM	10/2003 - 07/2005	1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-44040	ACM20,CLM20..LHD..MTM	05/2001 - 10/2003	1
55107-44040	ACM20,CLM20..LHD..MTM	10/2003 - 07/2005	1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-44040	ACM20,CLM20..LHD..MTM	05/2001 - 10/2003	1
55107-44040	ACM20,CLM20..LHD..MTM	10/2003 - 07/2005	1
Common parts
90468-15005
91651-60828
91651-B0820
94130-01002
94130-61000
94531-01000
96160-00600

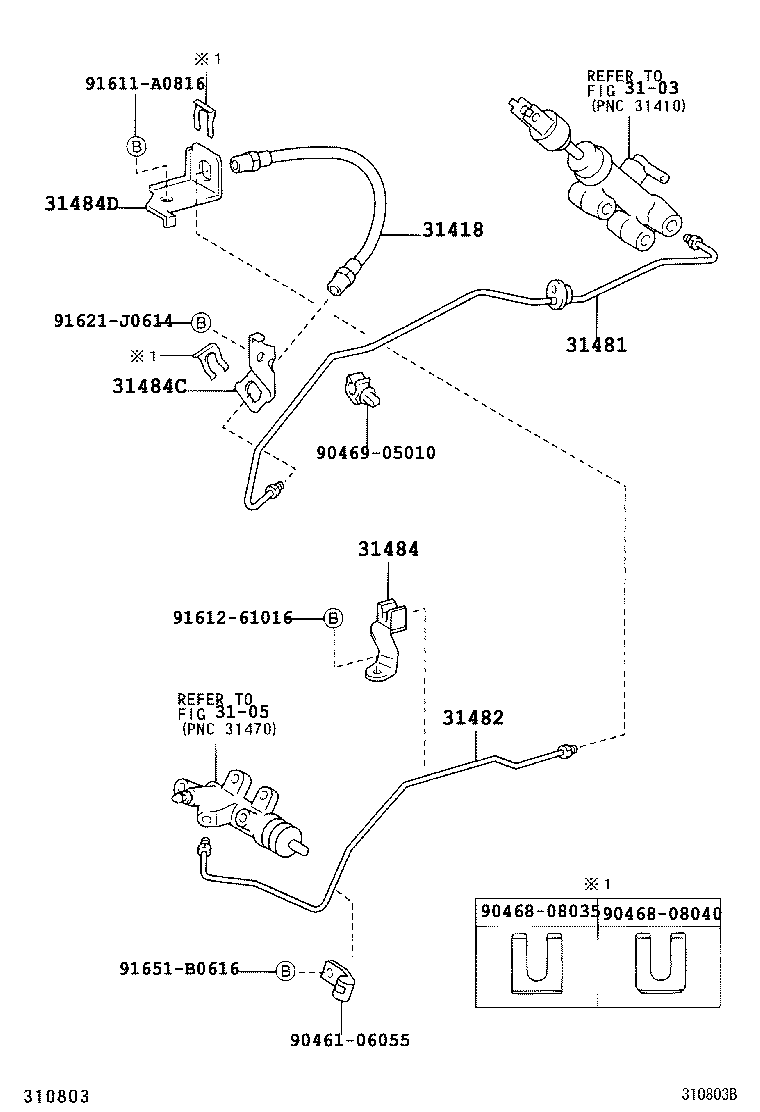

ILLUST NO. 2 OF 2(0105- )ACM20..LHD..MTM

Click highlighted areas on diagram

Part #	Description	Period	Qty
31418 - HOSE, CLUTCH
90947-02C25	ACM20,CLM20..MTM	05/2001 - 10/2003	1
90947-02C25	ACM20,CLM20..MTM	10/2003 - 07/2005	1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-44060	ACM20,CLM20..LHD..MTM	05/2001 - 10/2003	1
31481-44060	ACM20,CLM20..LHD..MTM	10/2003 - 07/2005	1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-44020	ACM20..MTM	05/2001 - 10/2003	1
31482-44020	ACM20..MTM	10/2003 - 07/2005	1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-44020	ACM20..MTM	10/2003 - 07/2005	1
31484-44020	ACM20..MTM	05/2001 - 10/2003	1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-44010	ACM20,CLM20..MTM	10/2003 - 07/2005	1
31484-44010	ACM20,CLM20..MTM	05/2001 - 10/2003	1
31484D - BRACKET, CLUTCH TUBE, NO.2
31484-28140	ACM20..MTM	05/2001 - 10/2003	1
31484-28140	ACM20..MTM	10/2003 - 07/2005	1
Common parts
90461-06055
90468-08035
90468-08040
90469-05010
91611-A0816
91612-61016
91621-J0614
91651-B0616
