ACM20L-ANMDKW (2001)
Toyota Picnic/Avensis Verso
Production
May 2001
-
Jul 2005
Engine
1AZFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0105- )1AZFE..MTM

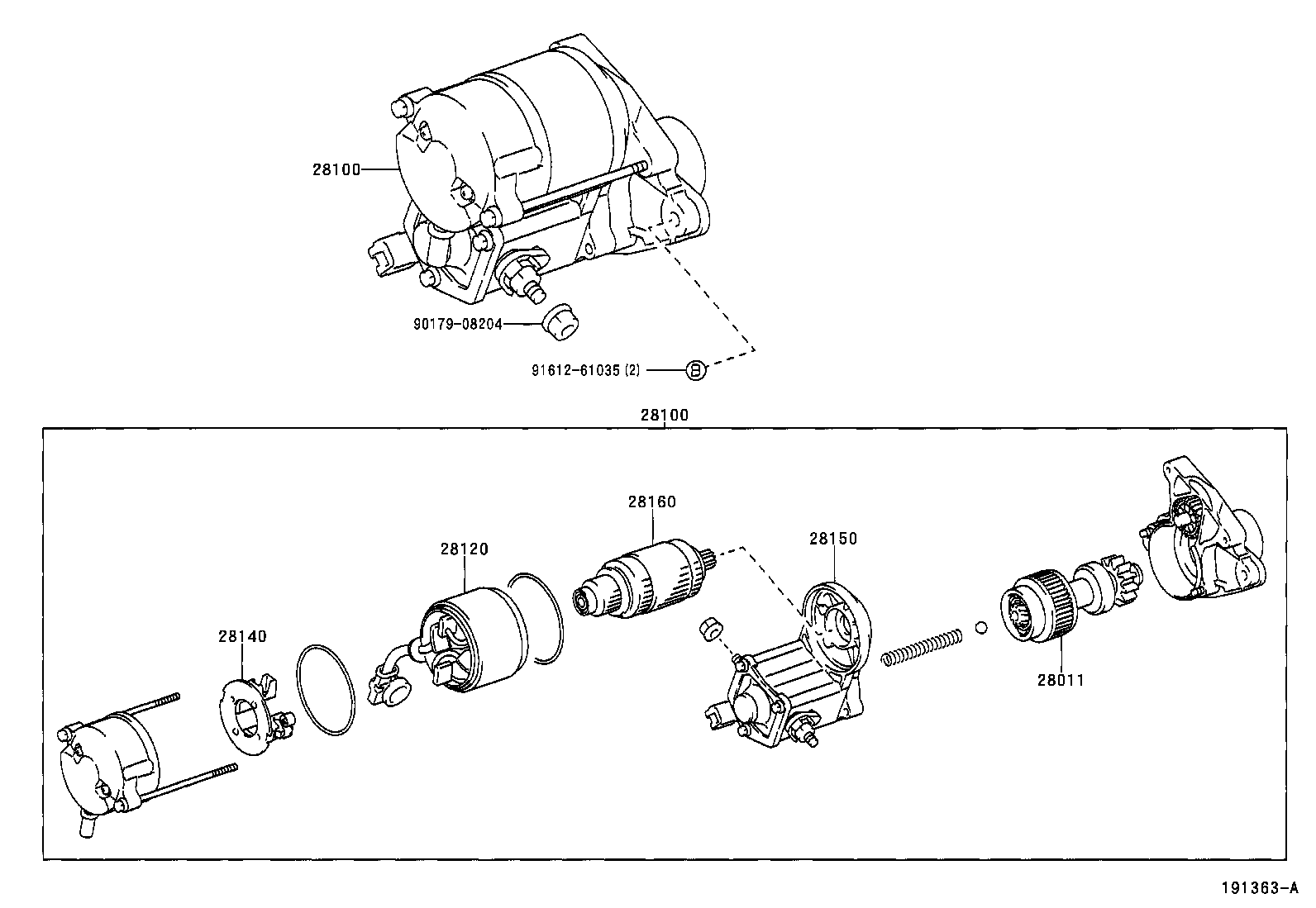

Click highlighted areas on diagram
12V 1.2KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-74070 |
1AZFE..ACM20..MTM |
1 | ||
| 28011-74070 |
1AZFE..ACM20..MTM |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-74270 |
1AZFE..ACM20..MTM 12V 1.2KW |
1 | ||
| 28100-74270 |
1AZFE..ACM20..MTM 12V 1.2KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-74270 |
1AZFE..ACM20..MTM 12V 1.2KW |
1 | ||
| 28100-74270 |
1AZFE..ACM20..MTM 12V 1.2KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-16180 |
1AZFE..ACM20..MTM |
1 | ||
| 28120-16180 |
1AZFE..ACM20..MTM |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-74120 |
1AZFE..ACM20..MTM |
1 | ||
| 28140-74120 |
1AZFE..ACM20..MTM |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-74270 |
1AZFE..ACM20..MTM |
1 | ||
| 28150-74270 |
1AZFE..ACM20..MTM |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-76060 |
1AZFE..ACM20..MTM |
1 | ||
| 28160-76060 |
1AZFE..ACM20..MTM |
1 | ||
| Common parts | ||||
| 90179-08204 | ||||
| 91612-61035 | ||||
