EL54R-DCPSKQ (1995)
Toyota Paseo
Production
Aug 1995
-
Jul 1999
Engine
5EFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9508- )

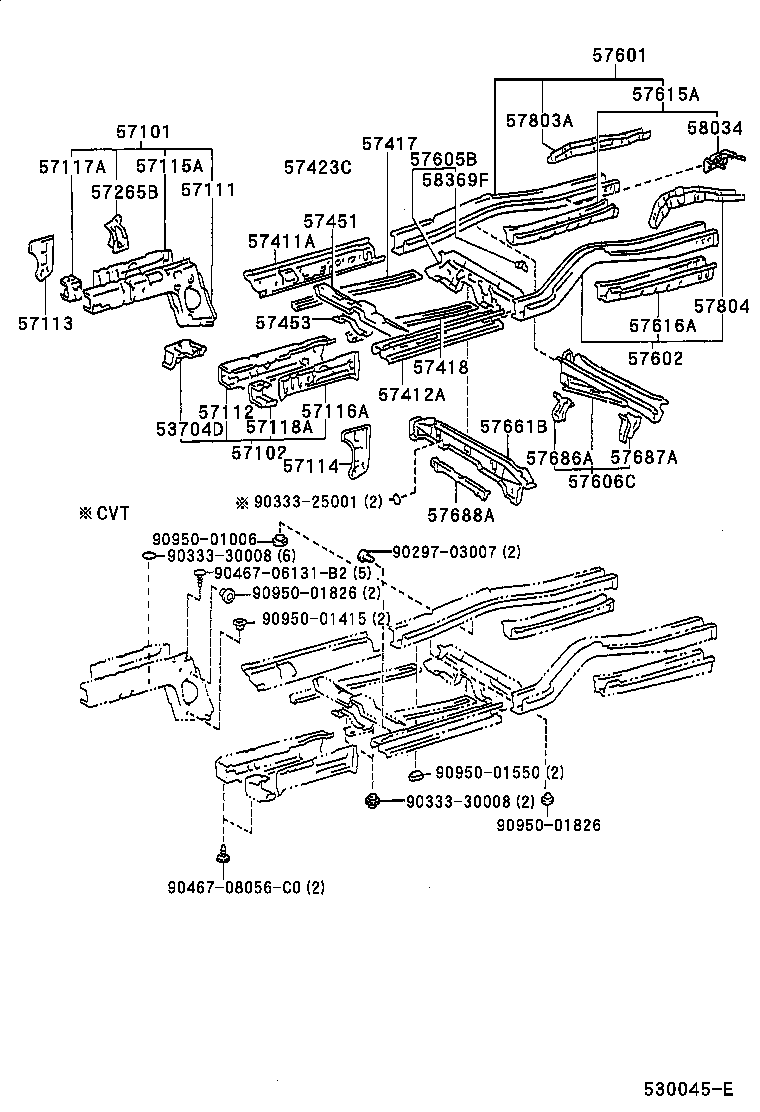

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53704D - SUPPORT SUB-ASSY, BATTERY, LH | ||||
| 53704-16020 |
EL54 |
1 | ||
| 53704-16020 |
EL54 |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-16260 |
EL54 |
1 | ||
| 57101-16200 |
EL54 |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-16290 |
EL54..RHD |
1 | ||
| 57102-16291 |
EL54..RHD |
1 | ||
| 57111 - MEMBER, FRONT SIDE, RH | ||||
| 57111-16130 |
EL54 |
1 | ||
| 57111-16131 |
EL54 |
1 | ||
| 57112 - MEMBER, FRONT SIDE, LH | ||||
| 57112-16151 |
EL54 |
1 | ||
| 57112-16150 |
EL54 |
1 | ||
| 57112-16150 |
EL54 |
1 | ||
| 57113 - EXTENSION, FRONT SIDE MEMBER, RH | ||||
| 57113-16060 |
EL54 |
1 | ||
| 57114 - EXTENSION, FRONT SIDE MEMBER, LH | ||||
| 57114-16060 |
EL54 |
1 | ||
| 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH | ||||
| 57115-16080 |
EL54 |
1 | ||
| 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH | ||||
| 57116-16080 |
EL54 |
1 | ||
| 57116-16080 |
EL54 |
1 | ||
| 57117A - REINFORCEMENT, FRONT BUMPER MOUNTING | ||||
| 57117-16070 |
EL54 |
1 | ||
| 57117-16060 |
EL54 |
1 | ||
| 57118A - REINFORCEMENT, FRONT BUMPER MOUNTING, LH | ||||
| 57118-16060 |
EL54 |
1 | ||
| 57118-16070 |
EL54 |
1 | ||
| 57118-16070 |
EL54 |
1 | ||
| 57265B - BRACKET, ENGINE MOUNTING, RH | ||||
| 57265-16030 |
EL54 |
1 | ||
| 57411A - MEMBER, FLOOR SIDE, INNER RH | ||||
| 57401-16902 |
EL54 |
1 | ||
| 57401-16905 |
EL54..CP |
1 | ||
| 57401-16905 |
EL54 |
1 | ||
| 57412A - MEMBER, FLOOR SIDE, INNER LH | ||||
| 57402-16905 |
EL54 |
1 | ||
| 57402-16902 |
EL54 |
1 | ||
| 57402-16905 |
EL54..CP |
1 | ||
| 57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH | ||||
| 57417-16010 |
EL54 |
1 | ||
| 57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH | ||||
| 57417-16010 |
EL54 |
1 | ||
| 57423C - REINFORCEMENT, FRONT FLOOR UNDER, INNER | ||||
| 57423-46010 |
EL54..CP |
2 | ||
| 57423-46010 |
EL54 |
2 | ||
| 57451 - MEMBER, FRONT FLOOR CROSS | ||||
| 57408-16040 |
EL54 |
1 | ||
| 57453 - MEMBER, FRONT FLOOR CROSS, NO.3 | ||||
| 57453-10021 |
EL54 |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-16310 |
EL54..CP |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-16290 |
EL54..CP |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-16050 |
EL54 |
1 | ||
| 57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57606-16110 |
EL54 |
1 | ||
| 57615A - MEMBER, REAR FLOOR SIDE, REAR RH | ||||
| 57615-16919 |
EL54 |
1 | ||
| 57616A - MEMBER, REAR FLOOR SIDE, REAR LH | ||||
| 57616-16915 |
EL54 |
1 | ||
| 57661B - MEMBER, REAR FLOOR CROSS, FRONT | ||||
| 57661-16010 |
EL54 |
1 | ||
| 57686A - BRACKET, FUEL TANK MOUNTING, REAR RH | ||||
| 57686-16030 |
EL54 |
1 | ||
| 57687A - BRACKET, FUEL TANK MOUNTING, REAR LH | ||||
| 57687-16020 |
EL54 |
1 | ||
| 57688A - REINFORCEMENT, REAR FLOOR CROSSMEMBER | ||||
| 57688-16030 |
EL54 |
1 | ||
| 57803A - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH | ||||
| 57803-16030 |
EL54 |
1 | ||
| 57804 - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH | ||||
| 57804-16050 |
EL54 |
1 | ||
| 58034 - BRACKET SUB-ASSY, EXHAUST PIPE SUPPORT, REAR | ||||
| 58034-16030 |
EL54 |
1 | ||
| 58369F - BRACKET, FUEL TUBE, NO.3 | ||||
| 58369-32010 |
EL54 |
1 | ||
| Common parts | ||||
| 90297-03007 | ||||
| 90333-25001 | ||||
| 90333-30008 | ||||
| 90467-06131B2 | ||||
| 90467-08056C0 | ||||
| 90950-01006 | ||||
| 90950-01415 | ||||
| 90950-01550 | ||||
| 90950-01826 | ||||
