EL54R-DCPSKQ (1995)
Toyota Paseo
Production
Aug 1995
-
Jul 1999
Engine
5EFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9508- )

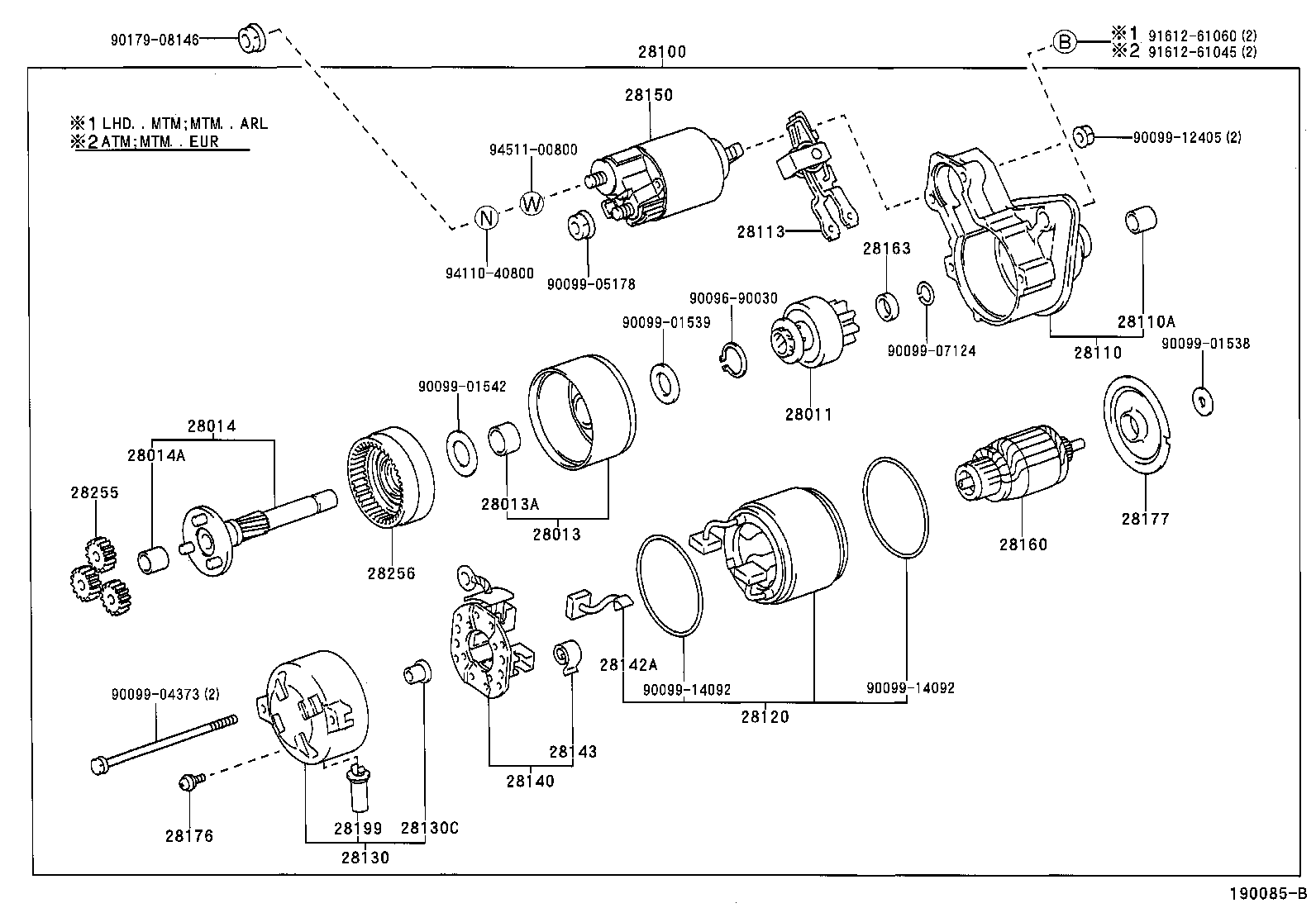

Click highlighted areas on diagram
12V 0.8KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-70020 |
5EFE..EL54 12V 0.8KW |
1 | ||
| 28013 - BEARING, STARTER CENTER & SHOCK ABSORBER, NO.1 | ||||
| 28013-70020 |
5EFE..EL54 |
1 | ||
| 28013A - BEARING, STARTER CENTER & SHOCK ABSORBER, NO.2 | ||||
| 90099-10181 |
5EFE..EL54 |
1 | ||
| 28014 - SHAFT SUB-ASSY, PLANET CARRIER | ||||
| 28014-70020 |
5EFE..EL54 |
1 | ||
| 28014A - BUSH OR BEARING, PLANET CARRIER SHAFT | ||||
| 90099-10180 |
5EFE..EL54 |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-11090 |
5EFE..EL54..ATM 12V 0.8KW |
1 | ||
| 28100-11150 |
5EFE..EL54..ATM 12V 0.8KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-11020 |
5EFE..EL54..ATM |
1 | ||
| 28110A - BEARING(FOR STARTER HOUSING) | ||||
| 90099-10171 |
5EFE..EL54 |
1 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-16070 |
5EFE..EL54 |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-70020 |
5EFE..EL54 12V 0.8KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-11010 |
5EFE..EL54 12V 0.8KW |
1 | ||
| 28130C - BEARING, STARTER FLANGE | ||||
| 90099-10183 |
5EFE..EL54 |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-70020 |
5EFE..EL54 12V 0.8KW |
1 | ||
| 28142A - STARTER KIT | ||||
| 28142-70020 |
5EFE..EL54 |
2 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 28143-70020 |
5EFE..EL54 12V 0.8KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-16160 |
5EFE..EL54 |
1 | ||
| 28150-16160 |
5EFE..EL54..CP |
1 | ||
| 28150-11080 |
5EFE..EL54 12V 0.8KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-70021 |
5EFE..EL54 12V 0.8KW |
1 | ||
| 28163 - NUT OR COLLAR, PINION STOP, STARTER | ||||
| 28163-70020 |
5EFE..EL54 |
1 | ||
| 28176 - SCREW, STARTER | ||||
| 28176-15090 |
5EFE..EL54 |
2 | ||
| 90099-00270 |
5EFE..EL54 |
2 | ||
| 28177 - PLATE(FOR STARTER ARMATURE) | ||||
| 28177-70020 |
5EFE..EL54 |
1 | ||
| 28199 - COVER, STARTER | ||||
| 28199-46080 |
5EFE..EL54 |
1 | ||
| 28255 - GEAR, PLANET | ||||
| 28255-70020 |
5EFE..EL54 |
3 | ||
| 28256 - GEAR, STARTER INTERNAL | ||||
| 28256-70020 |
5EFE..EL54 |
1 | ||
| Common parts | ||||
| 90096-90030 | ||||
| 90099-01538 | ||||
| 90099-01539 | ||||
| 90099-01542 | ||||
| 90099-04373 | ||||
| 90099-05178 | ||||
| 90099-07124 | ||||
| 90099-12405 | ||||
| 90099-14092 | ||||
| 90179-08146 | ||||
| 91612-61045 | ||||
| 91612-61060 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
