EL54R-DCMSKQ (1995)
Toyota Paseo
Production
Aug 1995
-
Jul 1999
Engine
5EFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9508- )

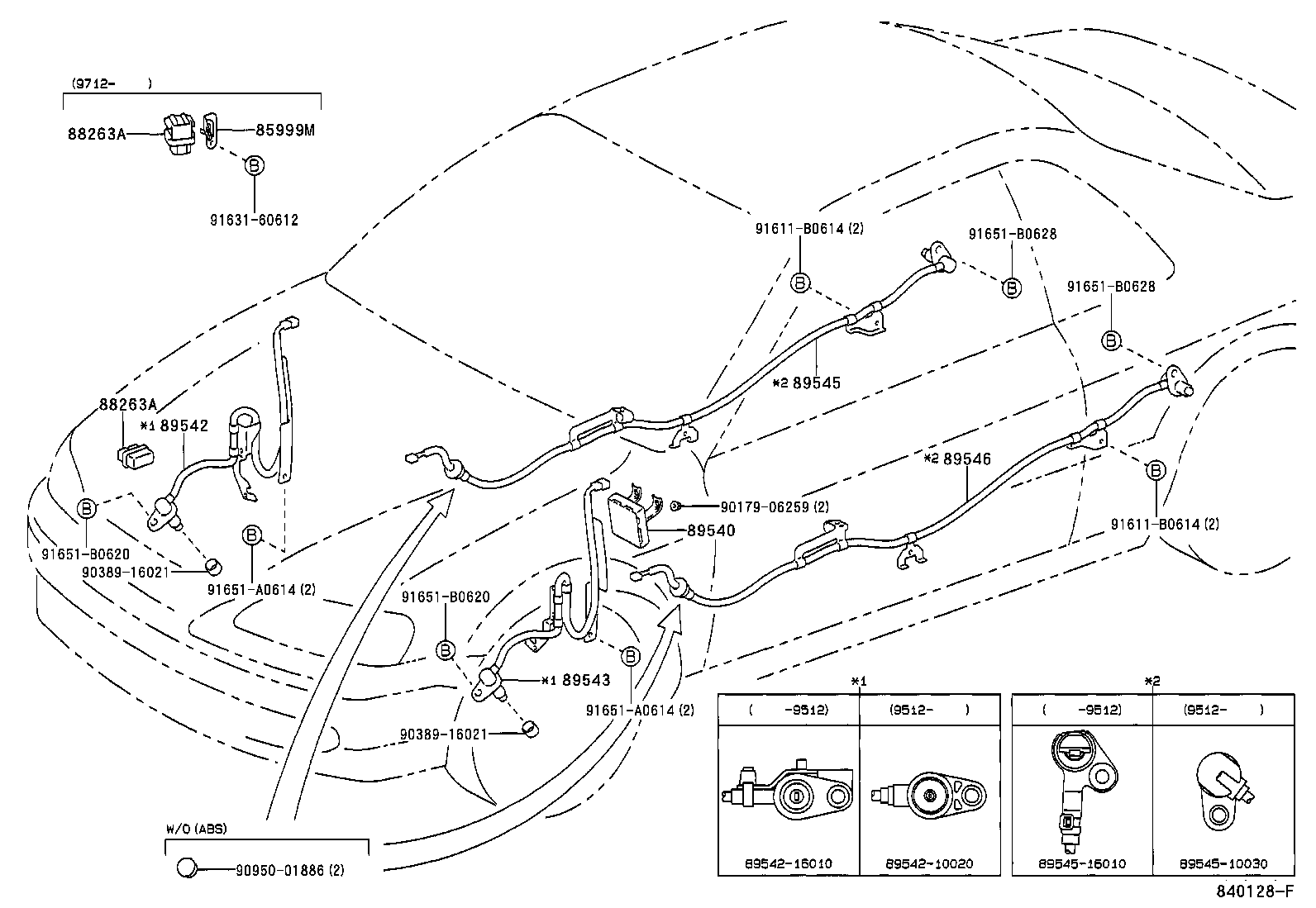

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85999M - BRACKET, RELAY | ||||
| 85999-16160 |
EL54 |
1 | ||
| 85999-16160 |
EL54..CP |
1 | ||
| 88263A - RELAY, SKID CONTROL | ||||
| 88263-35070 |
EL54..CP |
1 | ||
| 88263-35070 |
EL54 |
1 | ||
| 88263-16010 |
EL54..ARL,EUR |
1 | ||
| 88263A - RELAY, SKID CONTROL | ||||
| 88263-35070 |
EL54..CP |
1 | ||
| 88263-35070 |
EL54 |
1 | ||
| 88263-16010 |
EL54..ARL,EUR |
1 | ||
| 89540 - COMPUTER ASSY, SKID CONTROL | ||||
| 89540-16140 |
EL54..CP |
1 | ||
| 89540-16100 |
EL54..ARL,EUR |
1 | ||
| 89540-16140 |
EL54 |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-16010 |
EL54..ARL REFER TO ILLUSTRATION |
1 | ||
| 89542-10020 |
EL54..ARL,EUR REFER TO ILLUSTRATION |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-16010 |
EL54..ARL REFER TO ILLUSTRATION |
1 | ||
| 89543-10020 |
EL54..ARL,EUR REFER TO ILLUSTRATION |
1 | ||
| 89545 - SENSOR, SPEED, REAR RH | ||||
| 89545-10030 |
EL54..ARL,EUR REFER TO ILLUSTRATION |
1 | ||
| 89545-16010 |
EL54..ARL REFER TO ILLUSTRATION |
1 | ||
| 89546 - SENSOR, SPEED, REAR LH | ||||
| 89546-16010 |
EL54..ARL REFER TO ILLUSTRATION |
1 | ||
| 89546-10030 |
EL54..ARL,EUR REFER TO ILLUSTRATION |
1 | ||
| Common parts | ||||
| 90179-06259 | ||||
| 90389-16021 | ||||
| 90950-01886 | ||||
| 91611-B0614 | ||||
| 91631-60612 | ||||
| 91651-A0614 | ||||
| 91651-B0620 | ||||
| 91651-B0628 | ||||
