EL54R-DCMSKQ (1995)

Toyota Paseo

Production Aug 1995 - Jul 1999
Engine 5EFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )CP

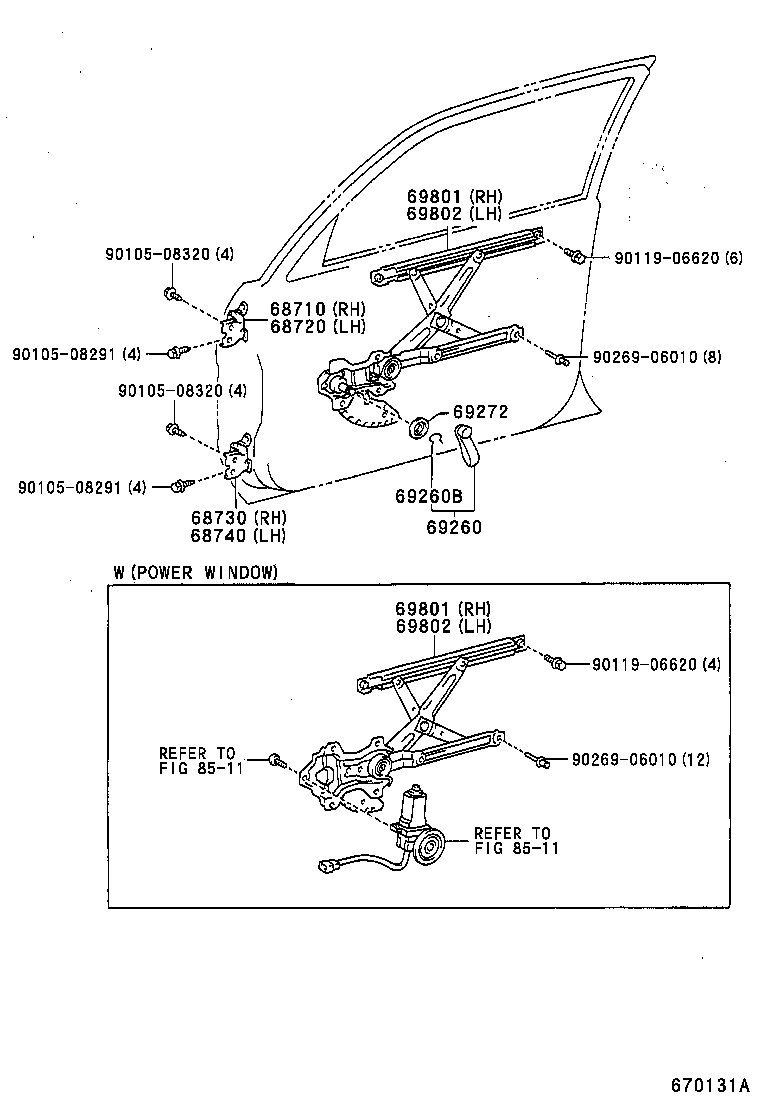

Click highlighted areas on diagram

diagram 68710 68720 68730 68740 69260 69260B 69272 69801 69801 69802 69802 8511 8511 9010508291 9010508291 9010508320 9010508320 9011906620 9011906620 9026906010 9026906010
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-16060

EL54

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-16060

EL54

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68720-16060

EL54

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68710-16060

EL54

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-20090B1

EL54..ARL,GEN

SHADOW GRAY,TRIM1#

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01274

EL54

 2
69272 - PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69268-20020

EL54..ARL,GEN

 2
69268-20020

EL54

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-16060

EL54..CP

W(POWER WINDOW)

 1
69810-16170

EL54

 1
69810-16250

EL54..CP

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-16060

EL54..CP

W(POWER WINDOW)

 1
69810-16170

EL54

 1
69810-16250

EL54..CP

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-16170

EL54

 1
69820-16250

EL54..CP

 1
69802-16060

EL54..CP

W(POWER WINDOW)

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-16170

EL54

 1
69820-16250

EL54..CP

 1
69802-16060

EL54..CP

W(POWER WINDOW)

 1
Common parts
90105-08291
90105-08320
90119-06620
90269-06010
Linked diagrams
8511
