EL54R-DCMSKQ (1995)

Toyota Paseo

Production Aug 1995 - Jul 1999
Engine 5EFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )

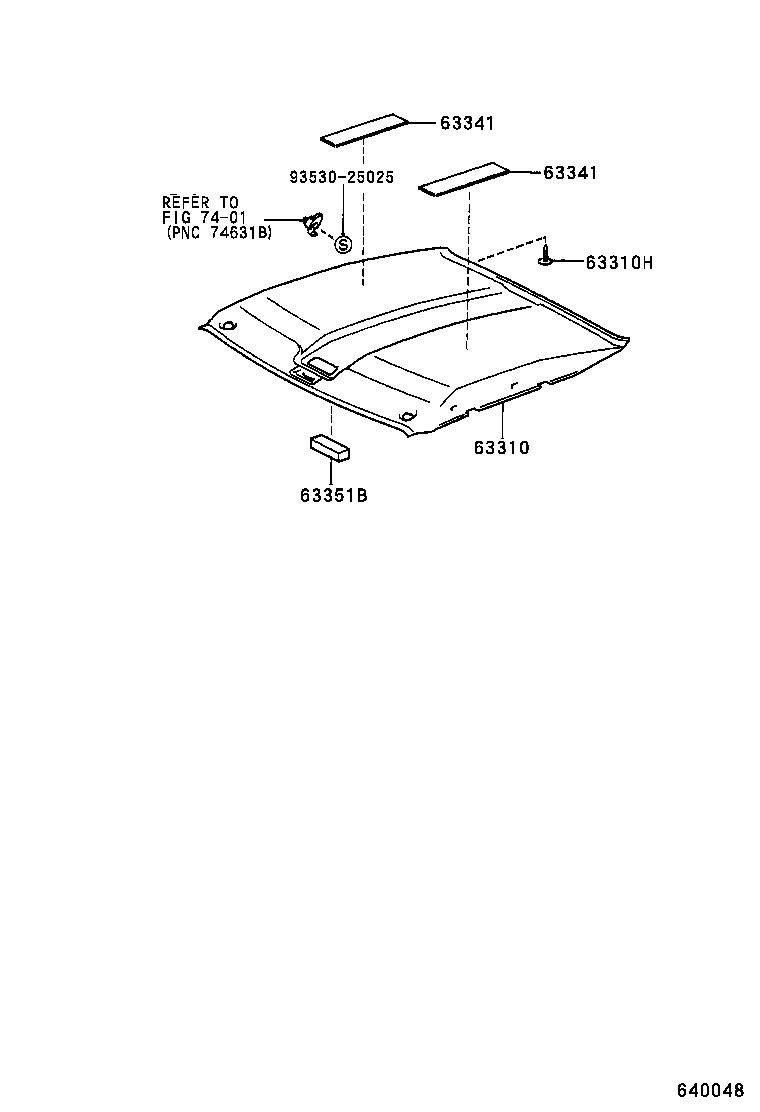

Click highlighted areas on diagram

diagram 63310 63310H 63341 63341 63351B 7401 9353025025
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-16410B0

EL54..RHD..CP

LIGHT BLUISH GRAY,TRIM1#

 1
63310-16420B0

EL54..RHD..CP

W(MOON ROOF),LIGHT BLUISH GRAY,TRIM1#

 1
63310-16470B0

EL54..RHD..CP

LIGHT BLUISH GRAY,TRIM1#

 1
63310-16480B0

EL54..RHD..CP

W(MOON ROOF),LIGHT BLUISH GRAY,TRIM1#

 1
63310H - CLIP(FOR ROOF HEADLINING)
90467-05021B1

EL54..CP

LT.BLUISH GRAY,TRIM1#

 3
63341 - PAD, ROOF SILENCER, NO.1
63341-16030

EL54..CP

 2
63341 - PAD, ROOF SILENCER, NO.1
63341-16030

EL54..CP

 2
63351B - PAD, ROOF HEADLINING
63351-16010

EL54..CP

 1
63351-16020

EL54..CP

W(MOON ROOF)

 1
Common parts
93530-25025
Linked diagrams
7401

(9508- )CP

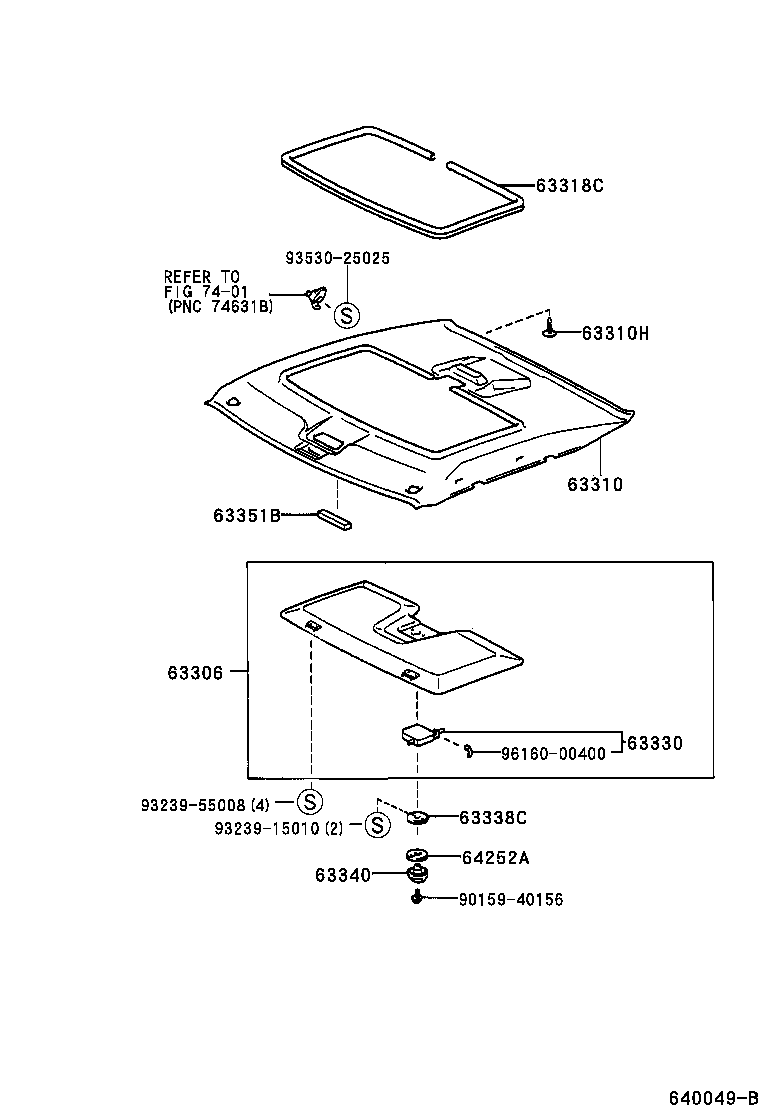

Click highlighted areas on diagram

W(MOON ROOF)

diagram 63306 63310 63310H 63318C 63330 63338C 63340 63351B 64252A 7401 9015940156 9323915010 9323955008 9353025025 9616000400
Part # Description Qty Price
63306 - TRIM SUB-ASSY, SUNSHADE
63350-16020B0

EL54..CP

LIGHT BLUISH GRAY,TRIM1#

 1
63310 - HEADLINING ASSY, ROOF
63310-16410B0

EL54..RHD..CP

LIGHT BLUISH GRAY,TRIM1#

 1
63310-16420B0

EL54..RHD..CP

W(MOON ROOF),LIGHT BLUISH GRAY,TRIM1#

 1
63310-16470B0

EL54..RHD..CP

LIGHT BLUISH GRAY,TRIM1#

 1
63310-16480B0

EL54..RHD..CP

W(MOON ROOF),LIGHT BLUISH GRAY,TRIM1#

 1
63310H - CLIP(FOR ROOF HEADLINING)
90467-05021B1

EL54..CP

LT.BLUISH GRAY,TRIM1#

 3
63318C - MOULDING, SUN ROOF OPENING TRIM
63318-16060B0

EL54..CP

L=2135,LT.BLUISH GRAY,TRIM1#

 1
63330 - LOCK ASSY, SUNSHADE TRIM
63330-89101

EL54..CP

 1
63338C - STOPPER, SUNSHADE LOCK, NO.2
63338-12010

EL54..CP

 1
63340 - HANDLE ASSY, SUNSHADE TRIM LOCK
63340-17010B2

EL54..CP

LT.BLUISH GRAY,TRIM1#

 1
63351B - PAD, ROOF HEADLINING
63351-16010

EL54..CP

 1
63351-16020

EL54..CP

W(MOON ROOF)

 1
64252A - SPACER, SUNSHADE TRIM LOCK
64252-17010

EL54..CP

 1
Common parts
90159-40156
93239-15010
93239-55008
93530-25025
96160-00400
Linked diagrams
7401
