EL54R-DCMSKQ (1995)

Toyota Paseo

Production Aug 1995 - Jul 1999
Engine 5EFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )

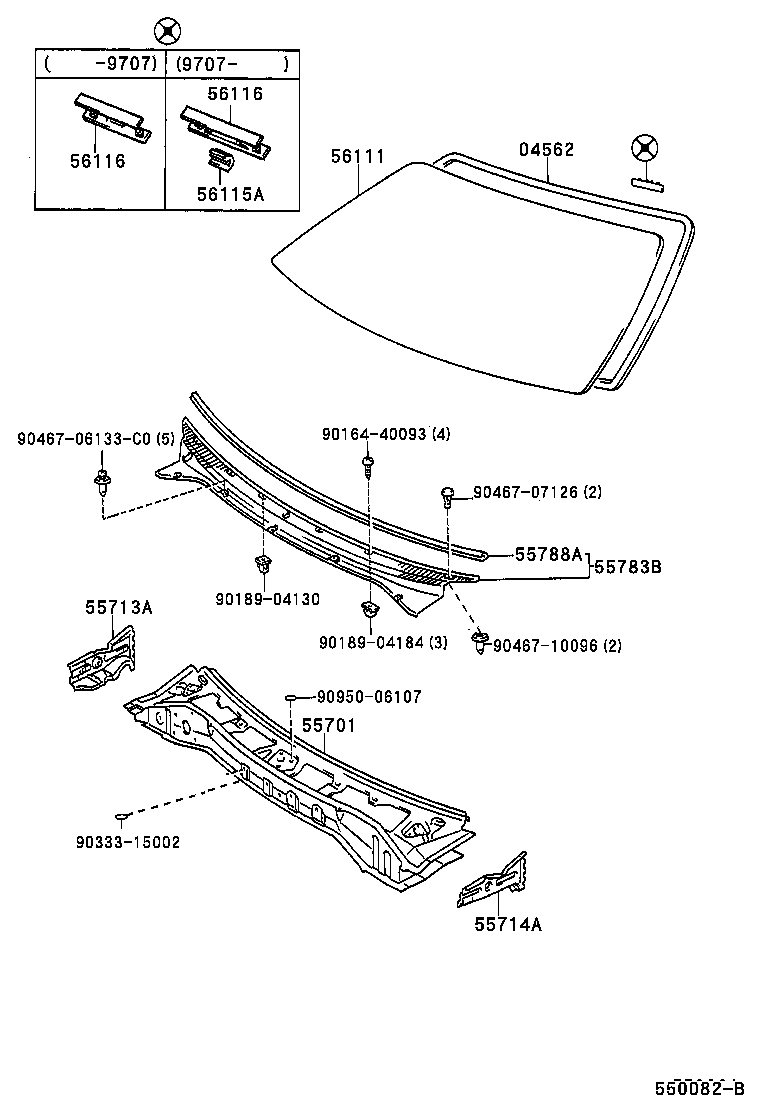

Click highlighted areas on diagram

diagram 04562 55701 55713A 55714A 55783B 55788A 56111 56115A 56116 56116 9016440093 9018904130 9018904184 9033315002 9046706133C0 9046707126 9046710096 9095006107
Part # Description Qty Price
04562 - DAM KIT, WINDSHIELD GLASS
04562-12010

EL54

 1
55701 - PANEL SUB-ASSY, COWL
55700-16330

EL54..RHD

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-16060

EL54

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-16060

EL54

 1
55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1
55708-16100

EL54..RHD

 1
55788A - PROTECTOR, COWL TOP VENTILATOR LOUVER
55788-16091

EL54

 1
56111 - GLASS, WINDSHIELD
56111-16410

EL54

*LAM,T=4.7,GREEN

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-12050

EL54

 2
56116 - SPACER, WINDSHIELD GLASS
56116-16050

EL54

 2
56116-22050

EL54

 2
56116 - SPACER, WINDSHIELD GLASS
56116-16050

EL54

 2
56116-22050

EL54

 2
Common parts
90164-40093
90189-04130
90189-04184
90333-15002
90467-06133C0
90467-07126
90467-10096
90950-06107
