EL54L-DCMSK (1995)
Toyota Paseo
Production
Aug 1995
-
Feb 1997
Engine
5EFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

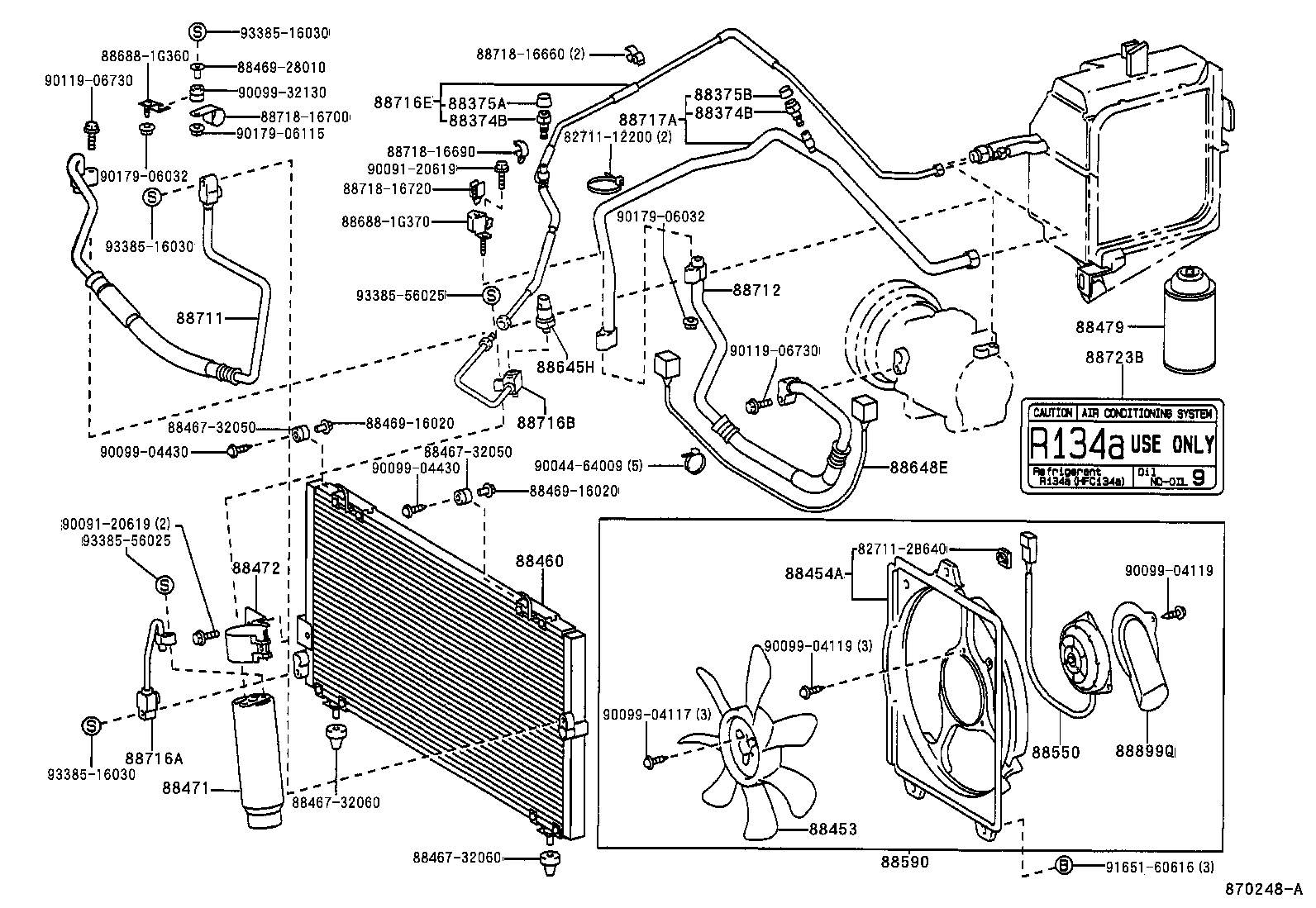

ILLUST NO. 1 OF 2(9508-9608)LHD
Click highlighted areas on diagram
MAKER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
EL54 |
2 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
EL54 |
2 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
EL54 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
EL54 |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-20080 |
EL54 |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-16140 |
EL54 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-16400 |
EL54..LHD |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-20050 |
EL54 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-16170 |
EL54..LHD |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 16363-74180 |
EL54 |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-16070 |
EL54 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-20050 |
EL54 |
1 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-16220 |
EL54 |
1 | ||
| 88648-16310 |
EL54..LHD |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-16281 |
EL54..LHD MAKER OPTION |
1 | ||
| 88711-16351 |
EL54..LHD DEALER OPTION |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-16460 |
EL54..LHD |
1 | ||
| 88712-16570 |
EL54..LHD |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-1G200 |
EL54..LHD |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-1G220 |
EL54..LHD MAKER OPTION |
1 | ||
| 88716-1G370 |
EL54..LHD MAKER OPTION |
1 | ||
| 88716-1G400 |
EL54..LHD DEALER OPTION |
1 | ||
| 88716-1G280 |
EL54..LHD DEALER OPTION |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-16250 |
EL54..LHD |
1 | ||
| 88717-16300 |
EL54..LHD |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-16050 |
EL54 |
1 | ||
| 88723-20040 |
EL54 |
1 | ||
| 88899Q - PLATE, COVER | ||||
| 88899-16020 |
EL54 |
1 | ||
| Common parts | ||||
| 82711-2B640 | ||||
| 88467-32050 | ||||
| 88467-32060 | ||||
| 88469-16020 | ||||
| 88469-28010 | ||||
| 88688-1G360 | ||||
| 88688-1G370 | ||||
| 88718-16660 | ||||
| 88718-16690 | ||||
| 88718-16700 | ||||
| 88718-16720 | ||||
| 90044-64009 | ||||
| 90091-20609 | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90099-32130 | ||||
| 90105-06035 | ||||
| 90179-06032 | ||||
| 90179-06115 | ||||
| 90464-00520 | ||||
| 91511-60614 | ||||
| 91511-G0622 | ||||
| 91631-60630 | ||||
| 91635-60630 | ||||
| 91651-60616 | ||||
| 93385-16030 | ||||
| 93385-56025 | ||||
ILLUST NO. 1 OF 2(9508-9608)LHD
Click highlighted areas on diagram
DEALER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
EL54 |
2 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
EL54 |
2 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
EL54 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
EL54 |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-20080 |
EL54 |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-16140 |
EL54 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-16400 |
EL54..LHD |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-20050 |
EL54 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-16170 |
EL54..LHD |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02008 |
EL54..GEN 200G |
2 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 16363-74180 |
EL54 |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-16070 |
EL54 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-20050 |
EL54 |
1 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-16220 |
EL54 |
1 | ||
| 88648-16310 |
EL54..LHD |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-16281 |
EL54..LHD MAKER OPTION |
1 | ||
| 88711-16351 |
EL54..LHD DEALER OPTION |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-16460 |
EL54..LHD |
1 | ||
| 88712-16570 |
EL54..LHD |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-1G200 |
EL54..LHD |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-1G220 |
EL54..LHD MAKER OPTION |
1 | ||
| 88716-1G370 |
EL54..LHD MAKER OPTION |
1 | ||
| 88716-1G400 |
EL54..LHD DEALER OPTION |
1 | ||
| 88716-1G280 |
EL54..LHD DEALER OPTION |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-16250 |
EL54..LHD |
1 | ||
| 88717-16300 |
EL54..LHD |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-16050 |
EL54 |
1 | ||
| 88723-20040 |
EL54 |
1 | ||
| 88899Q - PLATE, COVER | ||||
| 88899-16020 |
EL54 |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-2B640 | ||||
| 88467-32050 | ||||
| 88467-32060 | ||||
| 88469-16020 | ||||
| 88469-28010 | ||||
| 88688-1G360 | ||||
| 88688-1G370 | ||||
| 88718-16660 | ||||
| 88718-16690 | ||||
| 88718-16700 | ||||
| 88718-16720 | ||||
| 90044-64009 | ||||
| 90091-20619 | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90099-04430 | ||||
| 90099-32130 | ||||
| 90119-06730 | ||||
| 90179-06032 | ||||
| 90179-06115 | ||||
| 91651-60616 | ||||
| 93385-16030 | ||||
| 93385-56025 | ||||
ILLUST NO. 2 OF 2(9508- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90099-14125 | ||||
