EL54L-DCMSK (1995)

Toyota Paseo

Production Aug 1995 - Feb 1997
Engine 5EFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )

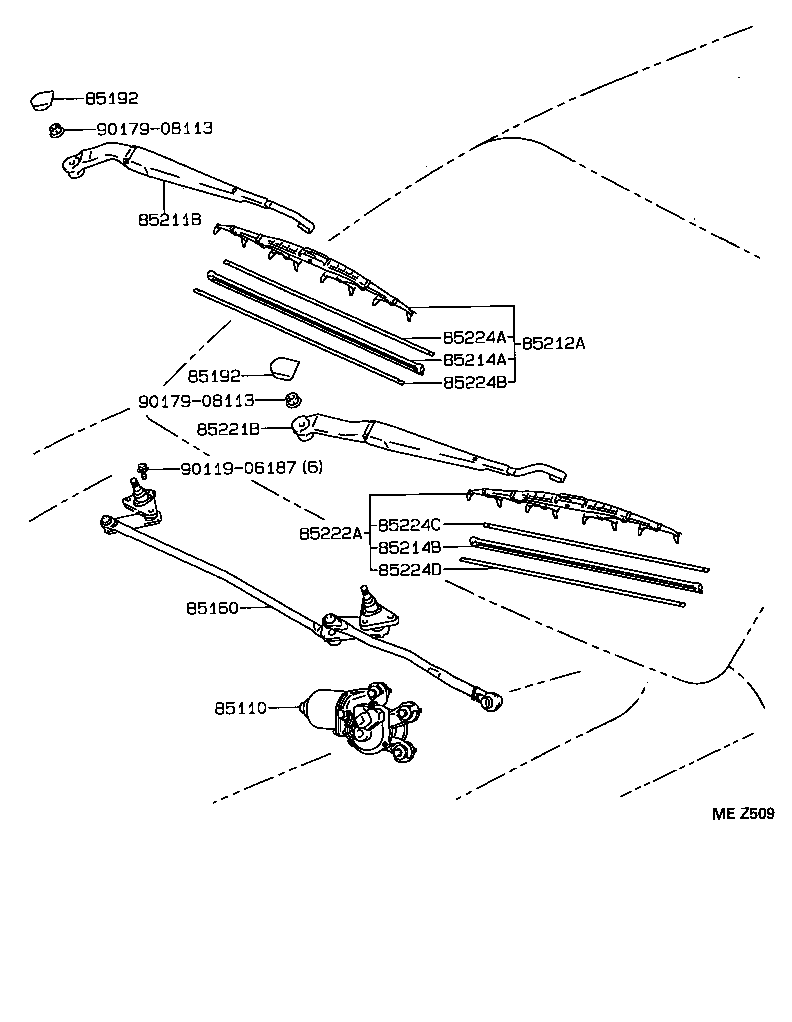

Click highlighted areas on diagram

diagram 85110 85160 85192 85192 85211B 85212A 85214A 85214B 85221B 85222A 85224A 85224B 85224C 85224D 9011906187 9017908113 9017908113
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-16610

EL54..GEN

 1
85110-16650

EL54..GEN

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-16510

EL54..GEN

 1
85192 - COVER, WINDSHIELD WIPER ARM
85292-12020

EL54

 2
85192 - COVER, WINDSHIELD WIPER ARM
85292-12020

EL54

 2
85211B - ARM, FRONT WIPER, RH
85211-16141

EL54..LHD

 1
85211-16140

EL54..LHD

 1
85212A - BLADE, FR WIPER, RH
85212-16120

EL54..LHD

 1
85212-20360

EL54..LHD

 1
85214A - RUBBER, WIPER, RH
85214-20330

EL54..LHD

 1
85214B - RUBBER, WIPER, LH
85214-33050

EL54..GEN

 1
85221B - ARM, FRONT WIPER, LH
85221-16180

EL54..GEN

 1
85221-16181

EL54..GEN

 1
85222A - BLADE, FR WIPER, LH
85222-20330

EL54..GEN

 1
85222-1G090

EL54..GEN

 1
85224A - PLATE, WIPER RUBBER BACKING, NO.1
85224-60050

EL54..LHD

 1
85224B - PLATE, WIPER RUBBER BACKING, NO.2
85224-60050

EL54..LHD

 1
85224C - PLATE, WIPER RUBBER BACKING, NO.3
85224-33050

EL54..GEN

 1
85224D - PLATE, WIPER RUBBER BACKING, NO.4
85224-33050

EL54..GEN

 1
Common parts
90119-06187
90179-08113
