EL54L-DCMSK (1995)

Toyota Paseo

Production Aug 1995 - Feb 1997
Engine 5EFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )CP

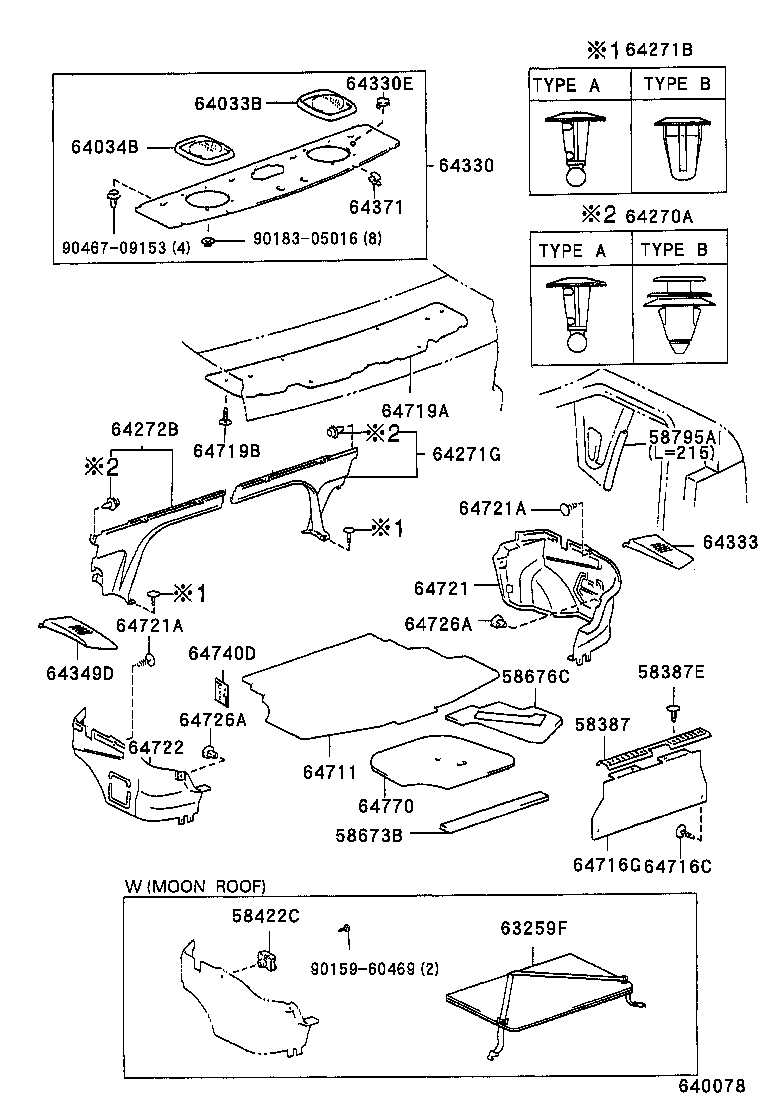

Click highlighted areas on diagram

diagram 58387 58387E 58422C 58673B 58676C 58795A 63259F 64033B 64034B 64270A 64271B 64271G 64272B 64330 64330E 64333 64349D 64371 64711 64716C 64716G 64719A 64719B 64721 64721A 64721A 64722 64726A 64726A 64740D 64770 9015960469 9018305016 9046709153
Part # Description Qty Price
58387 - PLATE, REAR FLOOR FINISH
58387-16050C0

EL54

BLACK,TRIM1#

 1
58387E - CLIP(FOR REAR FLOOR FINISH PLATE)
90467-0605522

EL54

BLACK,TRIM1#

 4
58422C - ANCHOR, LUGGAGE HOLD BELT
58422-1602022

EL54..CP

BLACK,TRIM1#

 2
58673B - PAD, REAR FLOOR SILENCER, NO.1
58673-16010

EL54

 1
58676C - PAD, REAR FLOOR SILENCER
58676-16050

EL54

 1
58795A - TRIM, JACK HOUSE OPENING
58795-16020

EL54

 1
63259F - CASE, REMOVABLE ROOF
63259-1604022

EL54..CP

BLACK,TRIM1#

 1
64033B - GRILLE SUB-ASSY, REAR SPEAKER, RH
64383-16040B1

EL54

SHADOW GRAY,TRIM1#

 1
64034B - GRILLE SUB-ASSY, REAR SPEAKER, LH
64383-16040B1

EL54

SHADOW GRAY,TRIM1#

 1
64270A - CLIP(FOR ROOM PARTITION BOARD SETTING)
90467-07115C0

EL54..CP

TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1#

 2
90467-10168

EL54..CP

TYPE B:REFER TO ILLUSTRATION

 2
64271B - CLIP(FOR ROOM PARTITION BOARD)
90467-07115C0

EL54

BLACK,TRIM1#

 2
90467-10023

EL54..CP

 3
64271G - BOARD, ROOM PARTITION, RH
64271-16070C0

EL54..CP

BLACK,TRIM1#

 1
64272B - BOARD, ROOM PARTITION, LH
64272-16070C0

EL54..CP

BLACK,TRIM1#

 1
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-16650B1

EL54..EUR,GEN

W/O(HIGH MOUNT STOP LAMP;IN ROOM & W(REAR SPEAKER),SHADOW GRAY,TRIM1#

 1
64330-16770B1

EL54..GEN

W(HIGH MOUNT STOP LAMP),SHADOW GRAY,TRIM1#

 1
64330-1G030B0

EL54..GEN

W(2 SPEAKER & REAR SPOILER),SHADOW GRAY,TRIM1#

 1
64330-1G020B0

EL54..GEN

W(2 SPEAKER),SHADOW GRAY,TRIM1#

 1
64330-1G040B0

EL54..CP..(EUR,GEN)

SHADOW GRAY,TRIM1#

 1
64330-1G050B0

EL54..CP..(EUR,GEN)

W(REAR SPOILER),SHADOW GRAY,TRIM1#

 1
64330-16790B1

EL54..EUR,GEN

SHADOW GRAY,TRIM1#

 1
64330-16780B1

EL54..GEN

W/O(HIGH MOUNT STOP LAMP;IN ROOM),SHADOW GRAY,TRIM1#

 1
64333 - COVER, PACKAGE TRAY TRIM, SIDE
64333-16090B0

EL54..CP

SHADOW GRAY,TRIM1#

 1
64349D - COVER, PACKAGE TRAY TRIM SIDE, LH
64349-16070B0

EL54..CP

SHADOW GRAY,TRIM1#

 1
64371 - RETAINER, PACKAGE TRAY TRIM
64371-16010

EL54..CP

 4
64711 - MAT, LUGGAGE COMPARTMENT FLOOR
64711-16220C0

EL54

BLACK,TRIM1#

 1
64711-16140C0

EL54

BLACK,TRIM1#

 1
64716C - CLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
90467-0509622

EL54

BLACK,TRIM1#

 1
64716G - COVER, LUGGAGE COMPARTMENT TRIM, REAR
64716-16100B0

EL54..CP

SHADOW GRAY,TRIM1#

 1
64719A - COVER, LUGGAGE COMPARTMENT DOOR
64719-16040C0

EL54

BLACK,TRIM1#

 1
64719B - CLIP(FOR LUGGAGE COMPARTMENT DOOR)
90467-0509622

EL54

BLACK,TRIM1#

 6
64721 - COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
64721-16080B0

EL54

SHADOW GRAY,TRIM1#

 1
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-0509622

EL54

BLACK,TRIM1#

 4
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-0509622

EL54

BLACK,TRIM1#

 4
64722 - COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
64722-16080B0

EL54..ARL,GEN

SHADOW GRAY,TRIM1#

 1
64722-16130B0

EL54..ARL,GEN

SHADOW GRAY,TRIM1#

 1
64726A - CLIP, LUGGAGE TRIM, REAR
64726-16020C0

EL54

BLACK,TRIM1#

 4
64726A - CLIP, LUGGAGE TRIM, REAR
64726-16020C0

EL54

BLACK,TRIM1#

 4
64770 - COVER ASSY, SPARE WHEEL
64770-16310

EL54

 1
64770-16311

EL54

 1
Common parts
90159-60469
90183-05016
90467-09153
