EL54L-DCMSK (1995)
Toyota Paseo
Production
Aug 1995
-
Feb 1997
Engine
5EFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9508- )

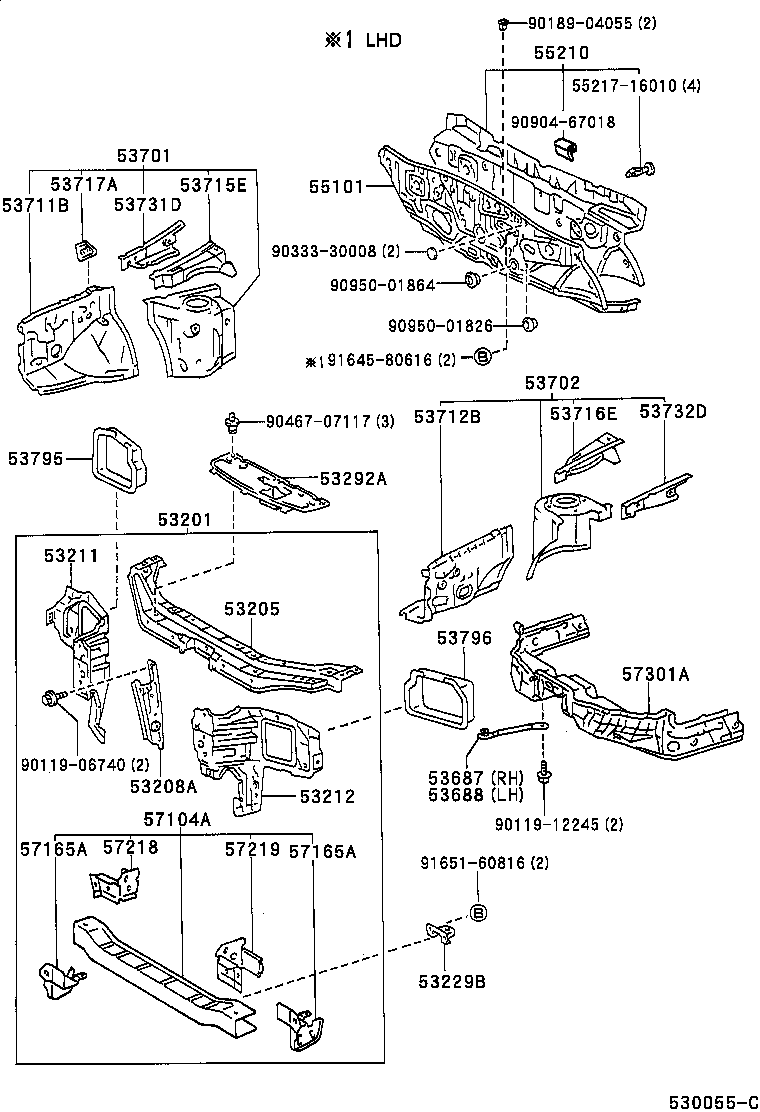

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53201-16340 |
EL54..MTM |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-16130 |
EL54 |
1 | ||
| 53208A - SUPPORT SUB-ASSY, HOOD LOCK | ||||
| 53215-16100 |
EL54 |
1 | ||
| 53211 - SUPPORT, RADIATOR, RH | ||||
| 53211-16130 |
EL54 |
1 | ||
| 53212 - SUPPORT, RADIATOR, LH | ||||
| 53212-16130 |
EL54 |
1 | ||
| 53229B - BRACKET, RADIATOR MOUNTING, LOWER NO.2 | ||||
| 53229-16060 |
EL54..MTM |
1 | ||
| 53292A - SEAL, RADIATOR SUPPORT, UPPER | ||||
| 53292-16030 |
EL54 |
1 | ||
| 53687 - BRACE, FRONT SUSPENSION LOWER TO STEERING MEMBER, RH | ||||
| 53687-10030 |
EL54 |
1 | ||
| 53688 - BRACE, FRONT SUSPENSION LOWER TO STEERING MEMBER, LH | ||||
| 53687-10030 |
EL54 |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-16191 |
EL54 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-16121 |
EL54 |
1 | ||
| 53711B - APRON, FRONT FENDER, FRONT RH | ||||
| 53711-16141 |
EL54 |
1 | ||
| 53712B - APRON, FRONT FENDER, FRONT LH | ||||
| 53712-16071 |
EL54 |
1 | ||
| 53715E - EXTENSION, FRONT FENDER APRON, REAR RH | ||||
| 53715-10050 |
EL54 |
1 | ||
| 53716E - EXTENSION, FRONT FENDER APRON, REAR LH | ||||
| 53716-10050 |
EL54 |
1 | ||
| 53717A - PLATE, FENDER APRON | ||||
| 53717-10040 |
EL54 |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-16030 |
EL54 |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-16030 |
EL54 |
1 | ||
| 53795 - COVER, HEADLAMP WIRE HARNESS HOLE, RH | ||||
| 53795-16020 |
EL54 |
1 | ||
| 53796 - COVER, HEADLAMP WIRE HARNESS HOLE, LH | ||||
| 53796-16020 |
EL54 |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-16550 |
EL54..LHD..MTM |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-16170 |
EL54..LHD |
1 | ||
| 55210-16190 |
EL54..LHD |
1 | ||
| 57104A - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-16110 |
EL54..MTM |
1 | ||
| 57165A - REINFORCEMENT, FRONT CROSSMEMBER, NO.2 | ||||
| 57166-16010 |
EL54 LH |
1 | ||
| 57165-16020 |
EL54 RH |
1 | ||
| 57165A - REINFORCEMENT, FRONT CROSSMEMBER, NO.2 | ||||
| 57166-16010 |
EL54 LH |
1 | ||
| 57165-16020 |
EL54 RH |
1 | ||
| 57218 - GUSSET, FRONT SIDE MEMBER, NO.1 | ||||
| 57218-16030 |
EL54 |
1 | ||
| 57219 - GUSSET, FRONT SIDE MEMBER, NO.2 | ||||
| 57219-16030 |
EL54 |
1 | ||
| 57301A - MEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT | ||||
| 57301-16090 |
EL54 |
1 | ||
| Common parts | ||||
| 55217-16010 | ||||
| 90119-06740 | ||||
| 90119-12245 | ||||
| 90189-04055 | ||||
| 90333-30008 | ||||
| 90467-07117 | ||||
| 90904-67018 | ||||
| 90950-01826 | ||||
| 90950-01864 | ||||
| 91645-80616 | ||||
| 91651-60816 | ||||
