EL44R-DCPSKQ (1991)
Toyota Paseo
Production
Apr 1991
-
Aug 1995
Engine
5EFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

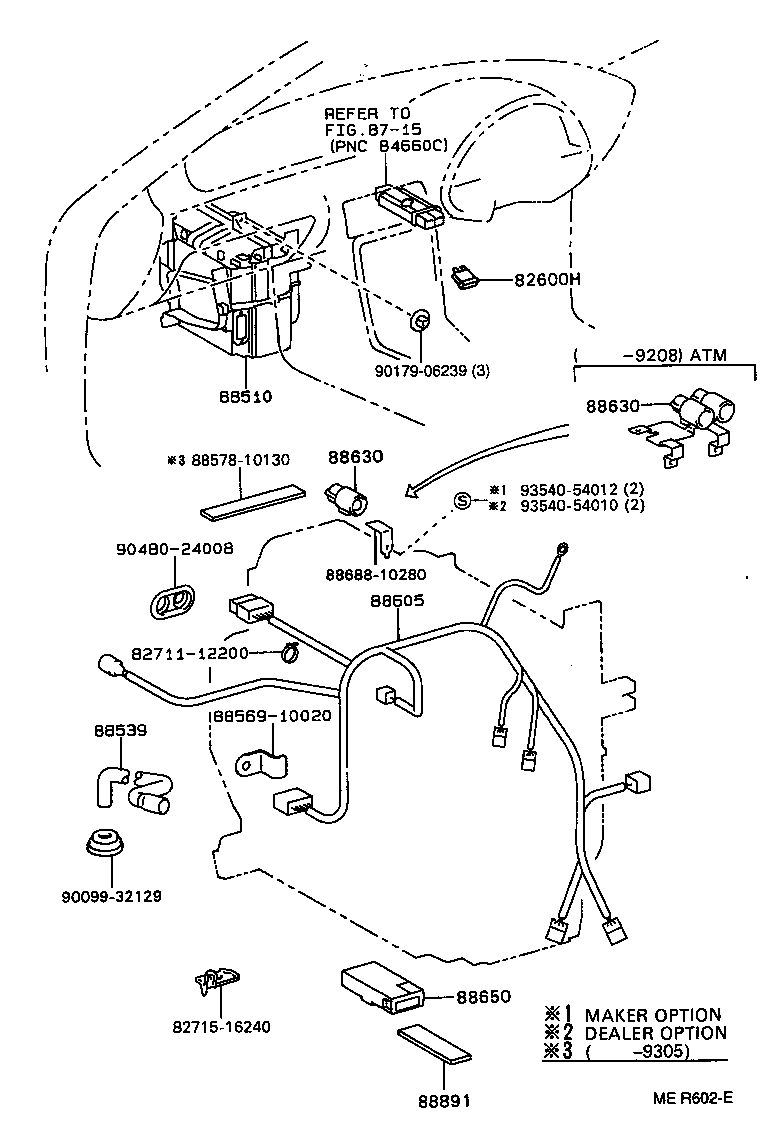

ILLUST NO. 1 OF 2(9104- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600H - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
EL44 10A |
1 | ||
| 90982-09002 |
EL44..ATM 10A |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-16480 |
EL44 |
1 | ||
| 88510-10240 |
EL44 |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-10090 |
EL44..ATM |
1 | ||
| 88539-10090 |
EL44 |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-1G560 |
EL44..ATM |
1 | ||
| 88605-1G830 |
EL44..ATM |
1 | ||
| 88605-1G831 |
EL44..ATM |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 88630-16120 |
EL44..ATM |
1 | ||
| 88630-95702 |
EL44 |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 88630-16120 |
EL44..ATM |
1 | ||
| 88630-95702 |
EL44 |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-16540 |
EL44..ATM |
1 | ||
| 88650-16500 |
EL44..ATM |
1 | ||
| 88891 - PACKING (FOR COOLER) | ||||
| 88578-16190 |
EL44 |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82715-16240 | ||||
| 88569-10020 | ||||
| 88578-10130 | ||||
| 88688-10280 | ||||
| 90099-32129 | ||||
| 90179-06239 | ||||
| 90480-24008 | ||||
| 93540-54010 | ||||
| 93540-54012 | ||||
| Linked diagrams | ||||
| 8715 | ||||

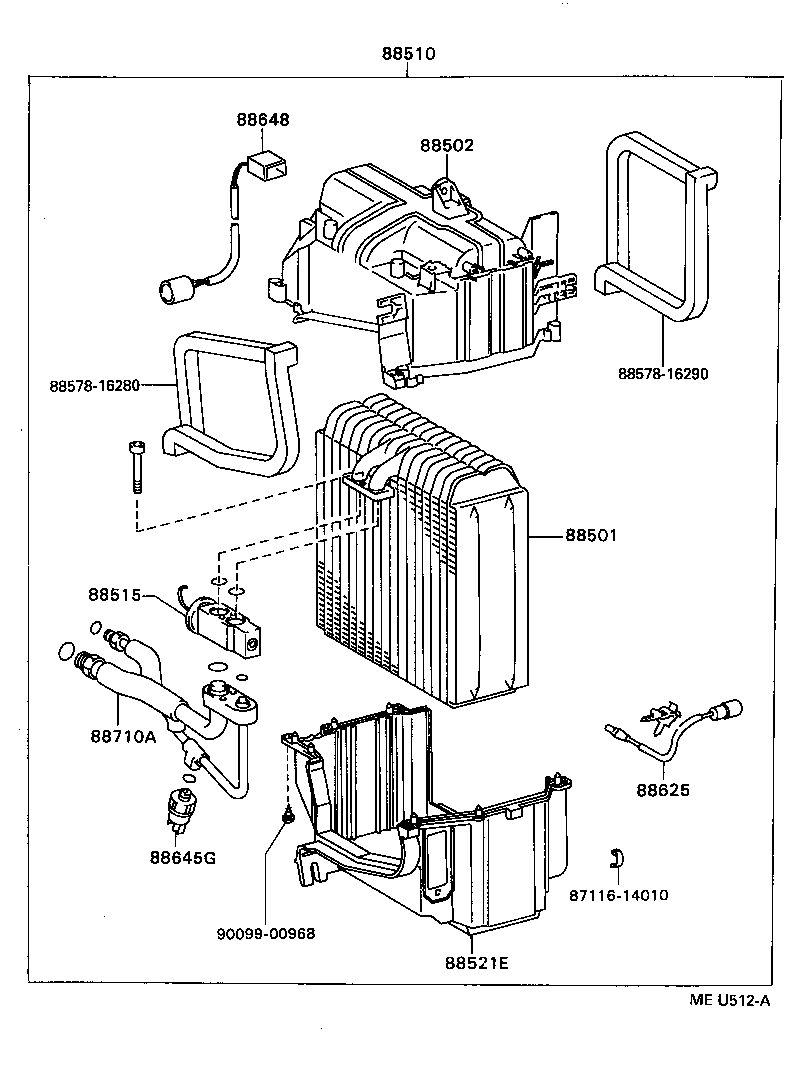

ILLUST NO. 2 OF 2(9104- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-10100 |
EL44 |
1 | ||
| 88501-16111 |
EL44 |
1 | ||
| 88501-16110 |
EL44 |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-10010 |
EL44 |
1 | ||
| 88502-16150 |
EL44 |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-16480 |
EL44 |
1 | ||
| 88510-10240 |
EL44 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-20100 |
EL44 |
1 | ||
| 88515-14062 |
EL44 |
1 | ||
| 88521E - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-10020 |
EL44 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-24050 |
EL44 |
1 | ||
| 88645G - SWITCH, PRESSURE | ||||
| 88645-30320 |
EL44 |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-10290 |
EL44 |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-16230 |
EL44 |
1 | ||
| 88710-10060 |
EL44 |
1 | ||
| Common parts | ||||
| 87116-14010 | ||||
| 88578-16280 | ||||
| 88578-16290 | ||||
| 90099-00968 | ||||
