EL44R-DCPSKQ (1991)
Toyota Paseo

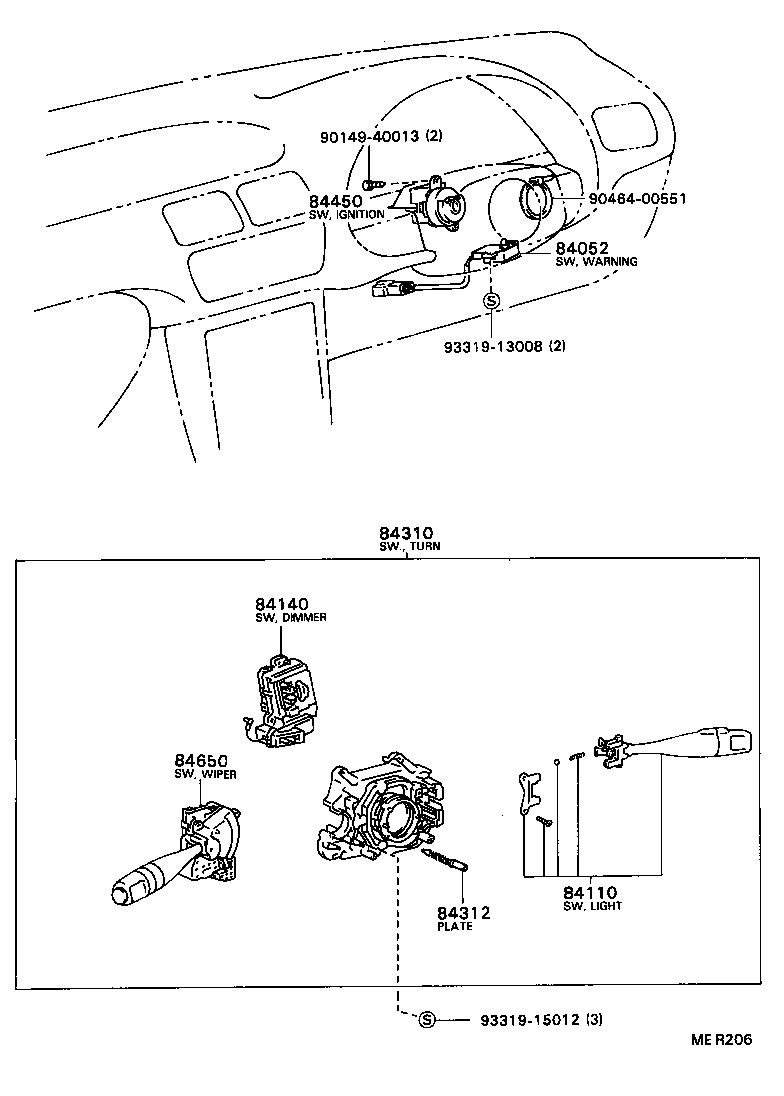

ILLUST NO. 4 OF 7(9104- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-16020 |
EL44 |
1 | ||
| 84052-20030 |
EL44 |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80053 |
EL44 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-10160 |
EL44 |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-16440 |
EL44 W(INTERMITTENT RR WIPER) |
1 | ||
| 84310-16260 |
EL44 |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-10040 |
EL44 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-10110 |
EL44 |
1 | ||
| 84450-16080 |
EL44 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-16430 |
EL44 |
1 | ||
| 84652-16470 |
EL44 W(INTERMITTENT RR WIPER) |
1 | ||
| Common parts | ||||
| 90149-40013 | ||||
| 90464-00551 | ||||
| 93319-13008 | ||||
| 93319-15012 | ||||

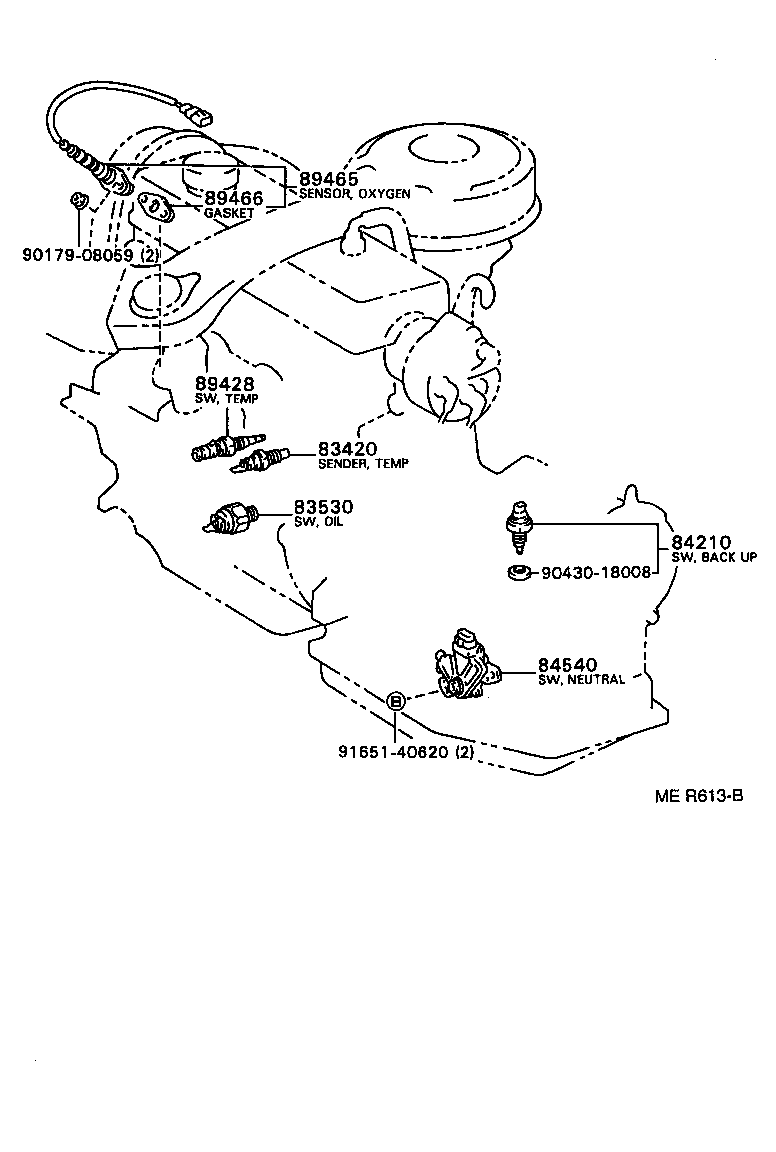

ILLUST NO. 1 OF 7(9104- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16020 |
EL44 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30080 |
EL44 |
1 | ||
| 83530-30090 |
EL44 |
1 | ||
| 83530-14060 |
EL44 |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-16040 |
EL44..ATM |
1 | ||
| 84540-16050 |
EL44..ATM |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-20060 |
EL44 |
1 | ||
| 89428-12160 |
EL44 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-19405 |
EL44 |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
EL44 |
1 | ||
| Common parts | ||||
| 90179-08059 | ||||
| 90430-18008 | ||||
| 91651-40620 | ||||

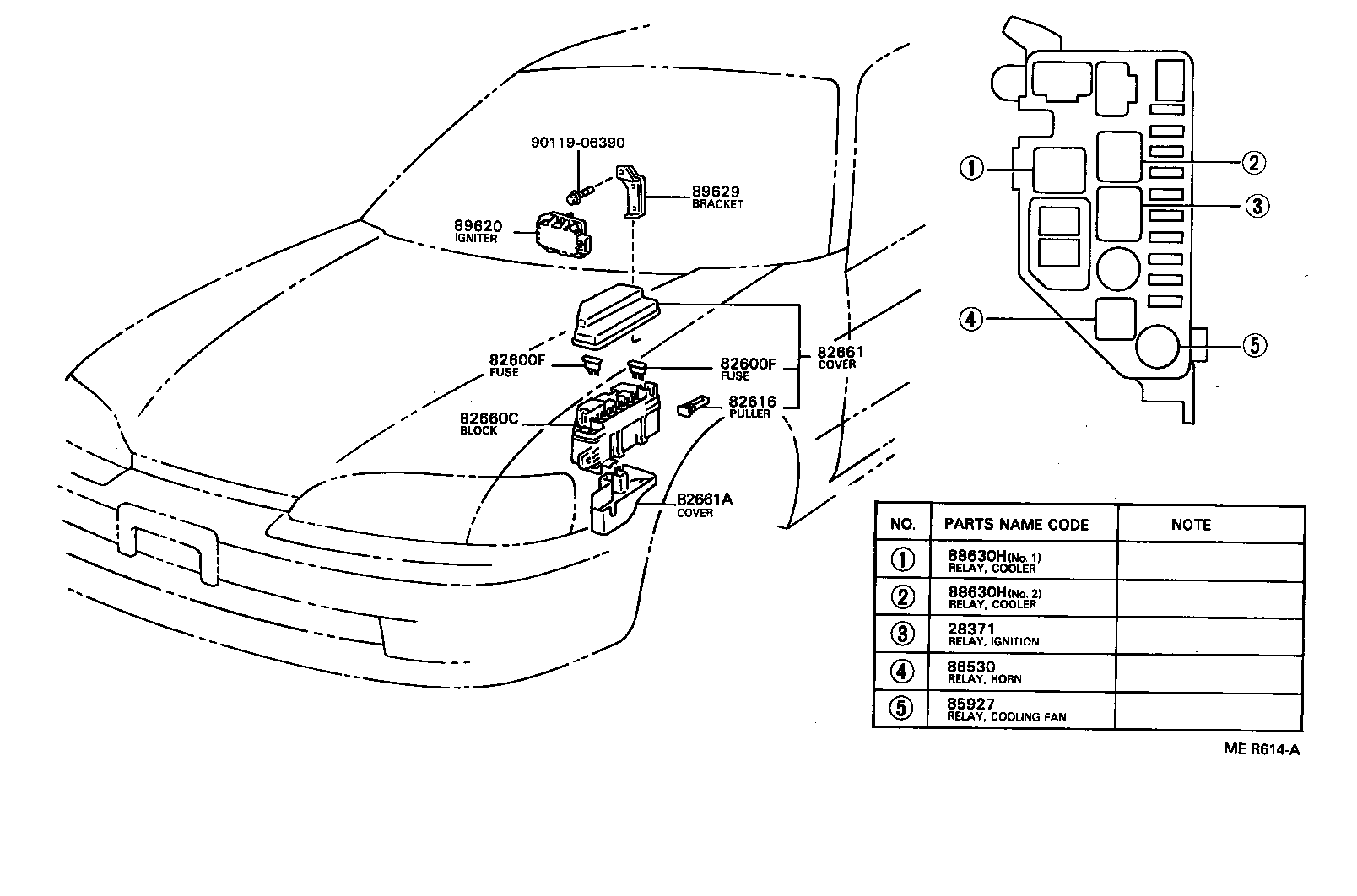

ILLUST NO. 2 OF 7(9104-9208)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-04002 |
5EFE..EL44 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
EL44 15A,MINI FUSE,BLUE |
1 | ||
| 90982-07011 |
EL44 30A,GREEN |
2 | ||
| 90982-09003 |
EL44 15A |
4 | ||
| 90982-09002 |
EL44 10A |
2 | ||
| 90982-09008 |
EL44 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-07011 |
EL44 30A,GREEN |
1 | ||
| 90982-09003 |
EL44 15A |
3 | ||
| 90982-09004 |
EL44 20A,YELLOW |
1 | ||
| 90982-09003 |
EL44 15A |
1 | ||
| 90982-09007 |
EL44 5A,MINI FUSE,TAN |
1 | ||
| 90982-09005 |
EL44 7.5A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
EL44 15A,MINI FUSE,BLUE |
1 | ||
| 90982-07011 |
EL44 30A,GREEN |
2 | ||
| 90982-09003 |
EL44 15A |
4 | ||
| 90982-09002 |
EL44 10A |
2 | ||
| 90982-09008 |
EL44 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-07011 |
EL44 30A,GREEN |
1 | ||
| 90982-09003 |
EL44 15A |
3 | ||
| 90982-09004 |
EL44 20A,YELLOW |
1 | ||
| 90982-09003 |
EL44 15A |
1 | ||
| 90982-09007 |
EL44 5A,MINI FUSE,TAN |
1 | ||
| 90982-09005 |
EL44 7.5A |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
EL44 |
1 | ||
| 82616-20010 |
EL44 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-10110 |
EL44 |
1 | ||
| 82660-10130 |
EL44 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82662-16060 |
EL44 |
1 | ||
| 82662-16080 |
EL44 |
1 | ||
| 82661A - COVER, RELAY BLOCK, NO.2 | ||||
| 82663-10020 |
EL44 |
1 | ||
| 82663-10040 |
EL44 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03001 |
EL44 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 86530-20070 |
EL44 |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-04002 |
EL44 NO.2 |
1 | ||
| 90987-02006 |
EL44 NO.1 |
1 | ||
| 90987-04002 |
EL44..ATM NO.2 |
1 | ||
| 90987-02006 |
EL44..ATM NO.1 |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-04002 |
EL44 NO.2 |
1 | ||
| 90987-02006 |
EL44 NO.1 |
1 | ||
| 90987-04002 |
EL44..ATM NO.2 |
1 | ||
| 90987-02006 |
EL44..ATM NO.1 |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89621-16020 |
EL44 |
1 | ||
| 89629 - BRACKET, IGNITER ASSY | ||||
| 89629-16030 |
EL44 |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||

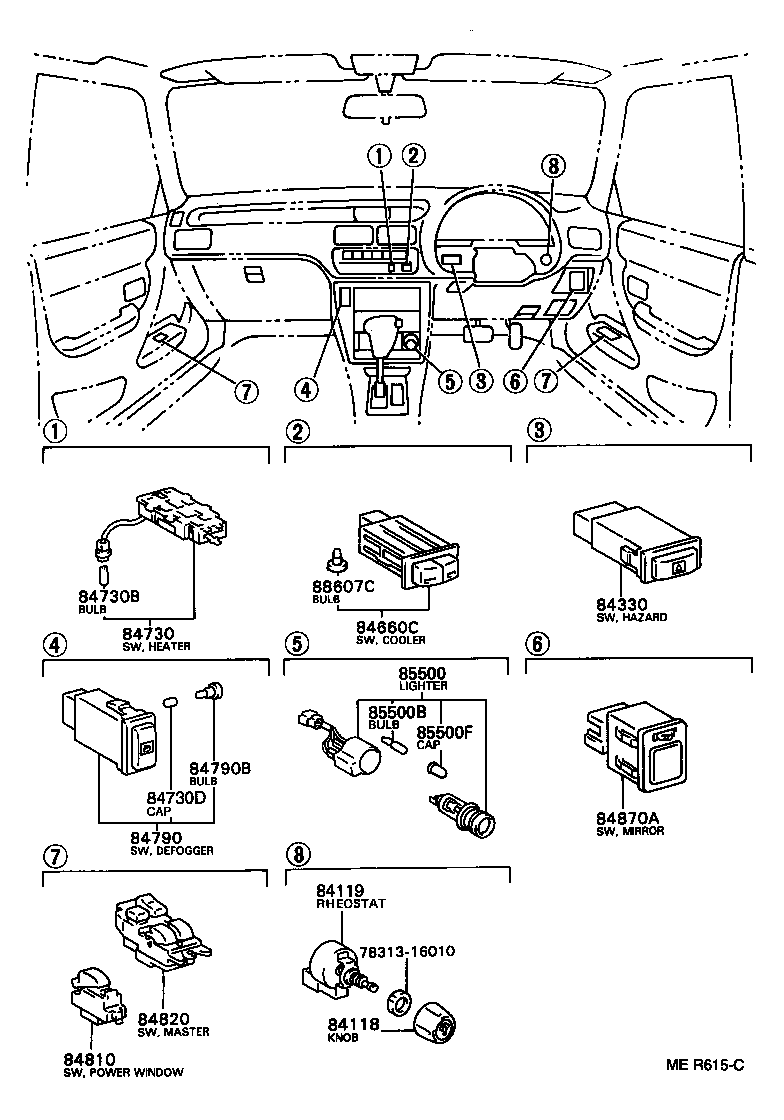

ILLUST NO. 3 OF 7(9104- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-16010 |
EL44 |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-16050 |
EL44 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-20210 |
EL44 |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-1609001 |
EL44 BLACK,TRIM2# |
1 | ||
| 84660-16080C0 |
EL44 BLACK,TRIM2# |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-16120 |
EL44 |
1 | ||
| 84732-16121 |
EL44 |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
EL44 14V 1.4W |
1 | ||
| 84730D - CAP, HEATER BLOWER SWITCH BULB | ||||
| 84998-10050 |
EL44 |
1 | ||
| 84998-10710 |
EL44 |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-16100 |
EL44 |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10320 |
EL44 14V 0.84W |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32070 |
EL44 |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-16050 |
EL44 |
1 | ||
| 84820-10030 |
EL44 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-16020 |
EL44 |
1 | ||
| 84870-20080 |
EL44 |
1 | ||
| 84870-89101 |
EL44 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-16170 |
EL44 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
EL44 14V 1.4W |
1 | ||
| 85500F - CAP, CIGARETTE LIGHTER BULB | ||||
| 90339-04014 |
EL44 |
1 | ||
| 88607C - LAMP SUB-ASSY, INDICATOR | ||||
| 88607-20060 |
EL44 14V 0.08A |
1 | ||
| 88607-10020 |
EL44 14V 0.08A |
1 | ||
| Common parts | ||||
| 78313-16010 | ||||

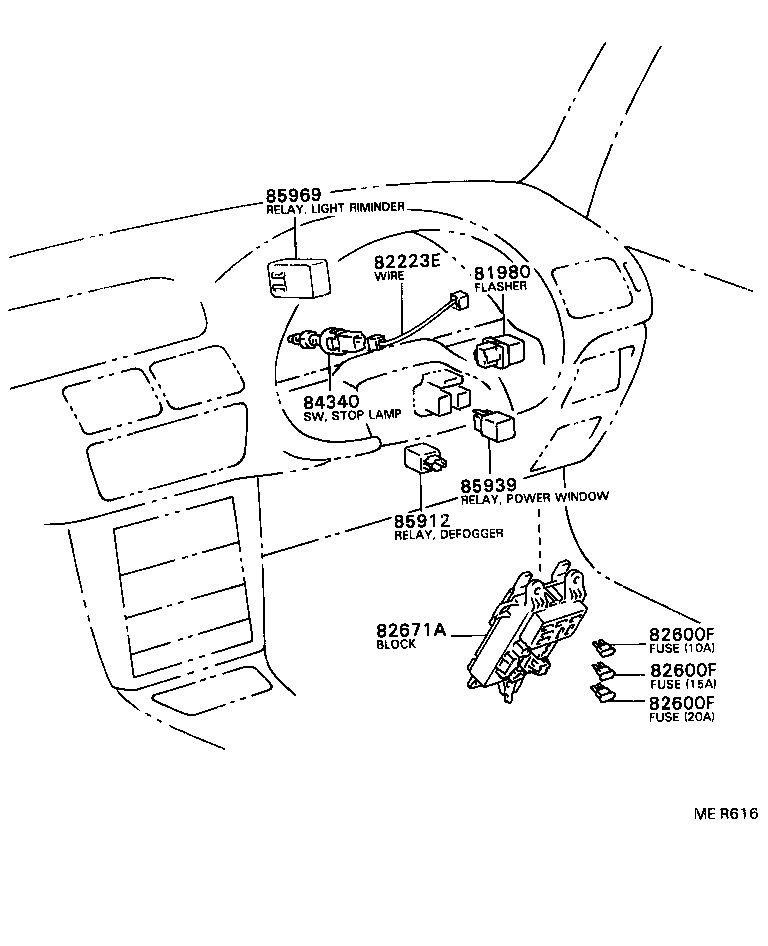

ILLUST NO. 5 OF 7(9104- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
EL44 |
1 | ||
| 82223E - WIRE, CLUTCH START SWITCH | ||||
| 82223-12530 |
EL44 |
1 | ||
| 82223-16020 |
EL44 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
EL44 15A,MINI FUSE,BLUE |
1 | ||
| 90982-07011 |
EL44 30A,GREEN |
2 | ||
| 90982-09003 |
EL44 15A |
4 | ||
| 90982-09002 |
EL44 10A |
2 | ||
| 90982-09008 |
EL44 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-07011 |
EL44 30A,GREEN |
1 | ||
| 90982-09003 |
EL44 15A |
3 | ||
| 90982-09004 |
EL44 20A,YELLOW |
1 | ||
| 90982-09003 |
EL44 15A |
1 | ||
| 90982-09007 |
EL44 5A,MINI FUSE,TAN |
1 | ||
| 90982-09005 |
EL44 7.5A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
EL44 15A,MINI FUSE,BLUE |
1 | ||
| 90982-07011 |
EL44 30A,GREEN |
2 | ||
| 90982-09003 |
EL44 15A |
4 | ||
| 90982-09002 |
EL44 10A |
2 | ||
| 90982-09008 |
EL44 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-07011 |
EL44 30A,GREEN |
1 | ||
| 90982-09003 |
EL44 15A |
3 | ||
| 90982-09004 |
EL44 20A,YELLOW |
1 | ||
| 90982-09003 |
EL44 15A |
1 | ||
| 90982-09007 |
EL44 5A,MINI FUSE,TAN |
1 | ||
| 90982-09005 |
EL44 7.5A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
EL44 15A,MINI FUSE,BLUE |
1 | ||
| 90982-07011 |
EL44 30A,GREEN |
2 | ||
| 90982-09003 |
EL44 15A |
4 | ||
| 90982-09002 |
EL44 10A |
2 | ||
| 90982-09008 |
EL44 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-07011 |
EL44 30A,GREEN |
1 | ||
| 90982-09003 |
EL44 15A |
3 | ||
| 90982-09004 |
EL44 20A,YELLOW |
1 | ||
| 90982-09003 |
EL44 15A |
1 | ||
| 90982-09007 |
EL44 5A,MINI FUSE,TAN |
1 | ||
| 90982-09005 |
EL44 7.5A |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-16061 |
EL44 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32050 |
EL44 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02004 |
EL44 NIPPONDENSO |
1 | ||
| 90987-02002 |
EL44 MARUKO |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90987-02004 |
EL44 NIPPONDENSO |
1 | ||
| 90987-02002 |
EL44 MARUKO |
1 | ||
| 85969 - RELAY, LIGHT REMINDER | ||||
| 85969-26010 |
EL44 |
1 | ||
| 85969-16030 |
EL44 |
1 | ||

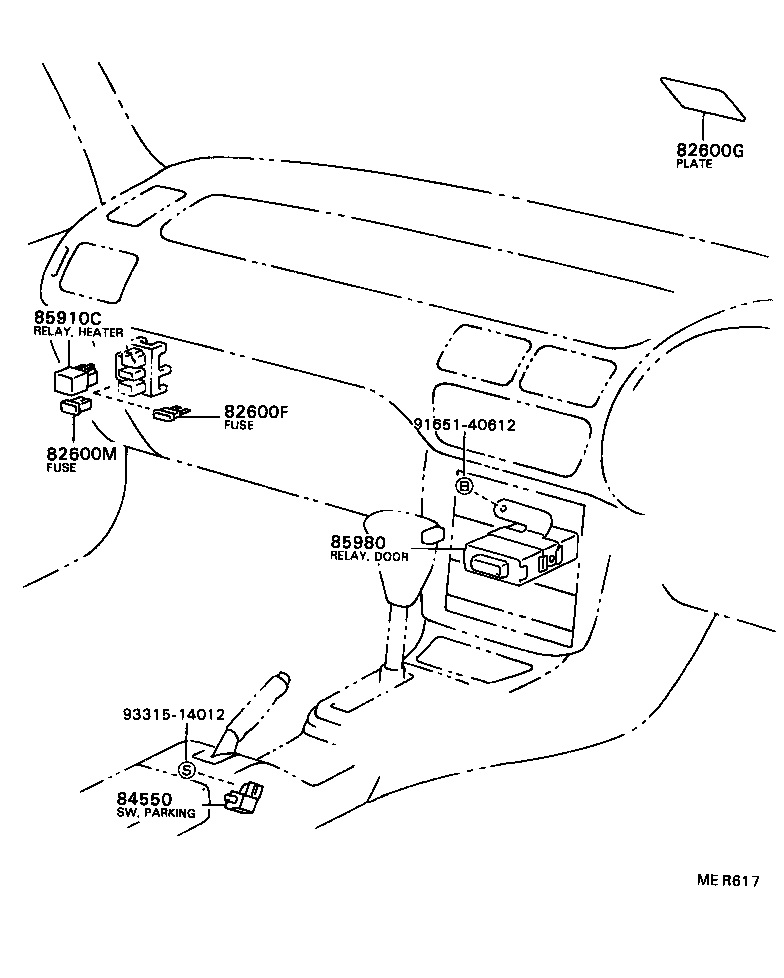

ILLUST NO. 6 OF 7(9104- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
EL44 15A,MINI FUSE,BLUE |
1 | ||
| 90982-07011 |
EL44 30A,GREEN |
2 | ||
| 90982-09003 |
EL44 15A |
4 | ||
| 90982-09002 |
EL44 10A |
2 | ||
| 90982-09008 |
EL44 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-07011 |
EL44 30A,GREEN |
1 | ||
| 90982-09003 |
EL44 15A |
3 | ||
| 90982-09004 |
EL44 20A,YELLOW |
1 | ||
| 90982-09003 |
EL44 15A |
1 | ||
| 90982-09007 |
EL44 5A,MINI FUSE,TAN |
1 | ||
| 90982-09005 |
EL44 7.5A |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82685-16020 |
EL44 |
1 | ||
| 82685-16010 |
EL44 |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
EL44 30A,PINK |
2 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
EL44 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
EL44 |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-16010 |
EL44 |
1 | ||
| Common parts | ||||
| 91651-40612 | ||||
| 93315-14012 | ||||

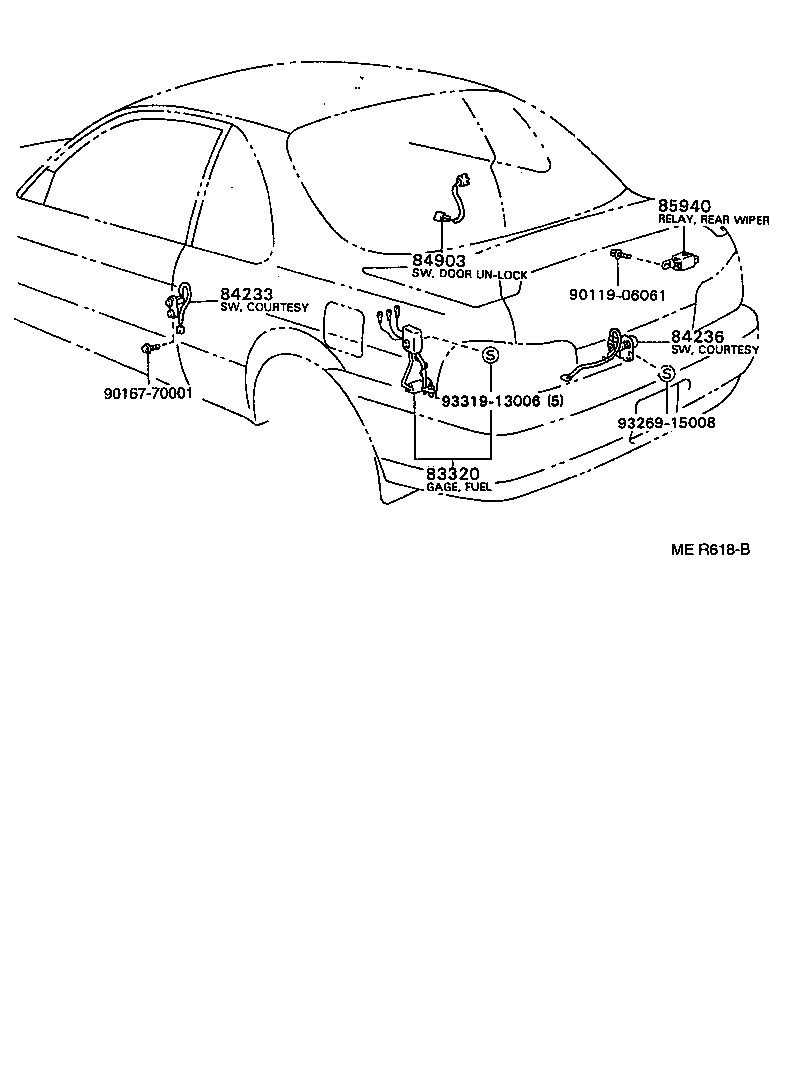

ILLUST NO. 7 OF 7(9104- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80192 |
EL44 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-32040 |
EL44 |
2 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84231-20200 |
EL44 |
1 | ||
| 84903 - SWITCH SUB-ASSY, DOOR UN-LOCK | ||||
| 84903-16120 |
EL44 |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-20130 |
EL44 |
1 | ||
| Common parts | ||||
| 90119-06061 | ||||
| 90167-70001 | ||||
| 93269-15008 | ||||
| 93319-13006 | ||||

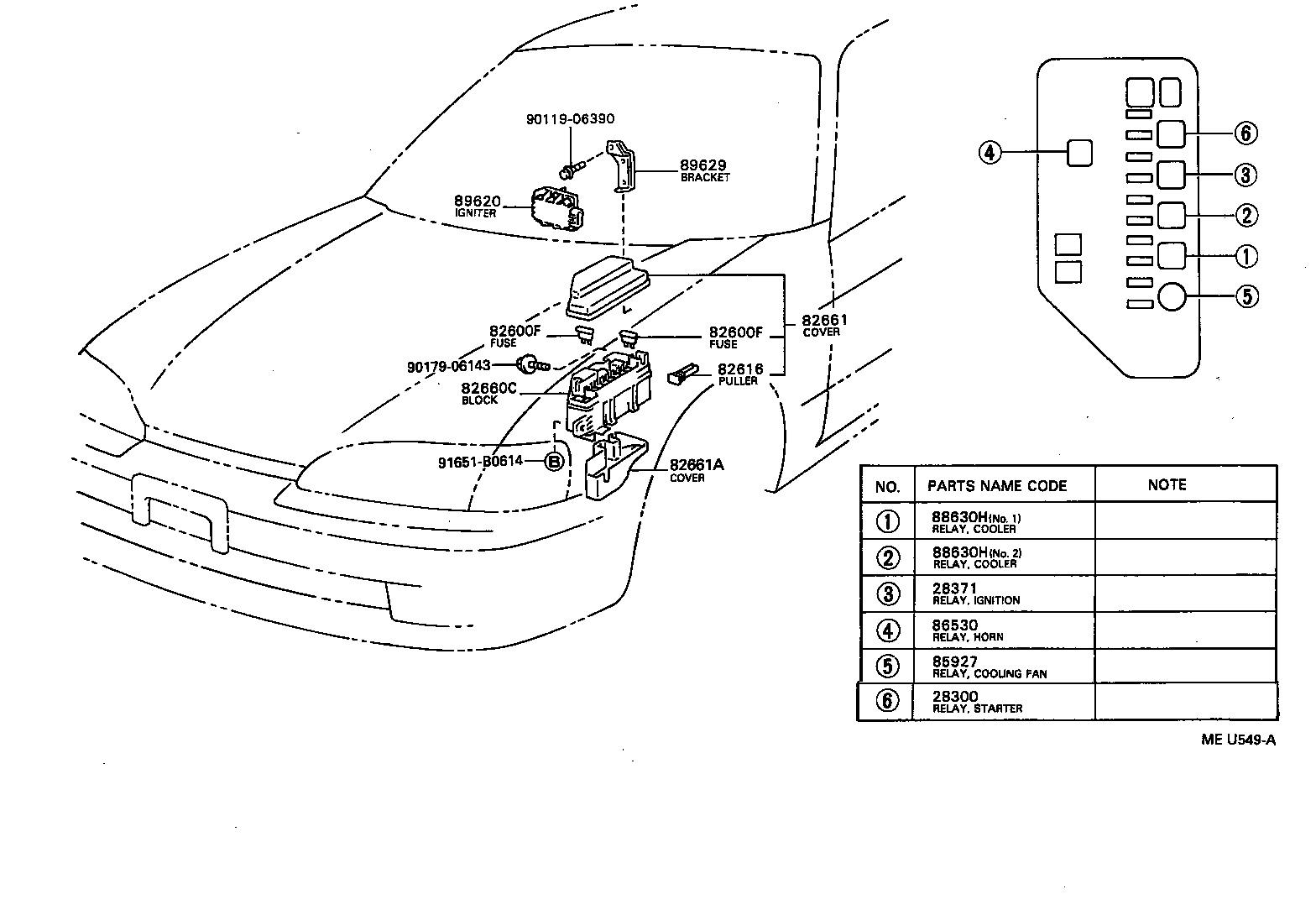

ILLUST NO. 2 OF 7(9208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-10020 |
5EFE..EL44 |
1 | ||
| 28300-10020 |
5EFE..EL44..ATM |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-04002 |
5EFE..EL44 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
EL44 15A,MINI FUSE,BLUE |
1 | ||
| 90982-07011 |
EL44 30A,GREEN |
2 | ||
| 90982-09003 |
EL44 15A |
4 | ||
| 90982-09002 |
EL44 10A |
2 | ||
| 90982-09008 |
EL44 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-07011 |
EL44 30A,GREEN |
1 | ||
| 90982-09003 |
EL44 15A |
3 | ||
| 90982-09004 |
EL44 20A,YELLOW |
1 | ||
| 90982-09003 |
EL44 15A |
1 | ||
| 90982-09007 |
EL44 5A,MINI FUSE,TAN |
1 | ||
| 90982-09005 |
EL44 7.5A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
EL44 15A,MINI FUSE,BLUE |
1 | ||
| 90982-07011 |
EL44 30A,GREEN |
2 | ||
| 90982-09003 |
EL44 15A |
4 | ||
| 90982-09002 |
EL44 10A |
2 | ||
| 90982-09008 |
EL44 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-07011 |
EL44 30A,GREEN |
1 | ||
| 90982-09003 |
EL44 15A |
3 | ||
| 90982-09004 |
EL44 20A,YELLOW |
1 | ||
| 90982-09003 |
EL44 15A |
1 | ||
| 90982-09007 |
EL44 5A,MINI FUSE,TAN |
1 | ||
| 90982-09005 |
EL44 7.5A |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
EL44 |
1 | ||
| 82616-20010 |
EL44 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-10110 |
EL44 |
1 | ||
| 82660-10130 |
EL44 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82662-16060 |
EL44 |
1 | ||
| 82662-16080 |
EL44 |
1 | ||
| 82661A - COVER, RELAY BLOCK, NO.2 | ||||
| 82663-10020 |
EL44 |
1 | ||
| 82663-10040 |
EL44 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03001 |
EL44 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 86530-20070 |
EL44 |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-04002 |
EL44 NO.2 |
1 | ||
| 90987-02006 |
EL44 NO.1 |
1 | ||
| 90987-04002 |
EL44..ATM NO.2 |
1 | ||
| 90987-02006 |
EL44..ATM NO.1 |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-04002 |
EL44 NO.2 |
1 | ||
| 90987-02006 |
EL44 NO.1 |
1 | ||
| 90987-04002 |
EL44..ATM NO.2 |
1 | ||
| 90987-02006 |
EL44..ATM NO.1 |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89621-16020 |
EL44 |
1 | ||
| 89629 - BRACKET, IGNITER ASSY | ||||
| 89629-16030 |
EL44 |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90179-06143 | ||||
| 91651-B0614 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
