EL44R-DCPSKQ (1991)

Toyota Paseo

Production Apr 1991 - Aug 1995
Engine 5EFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9104- )

Click highlighted areas on diagram

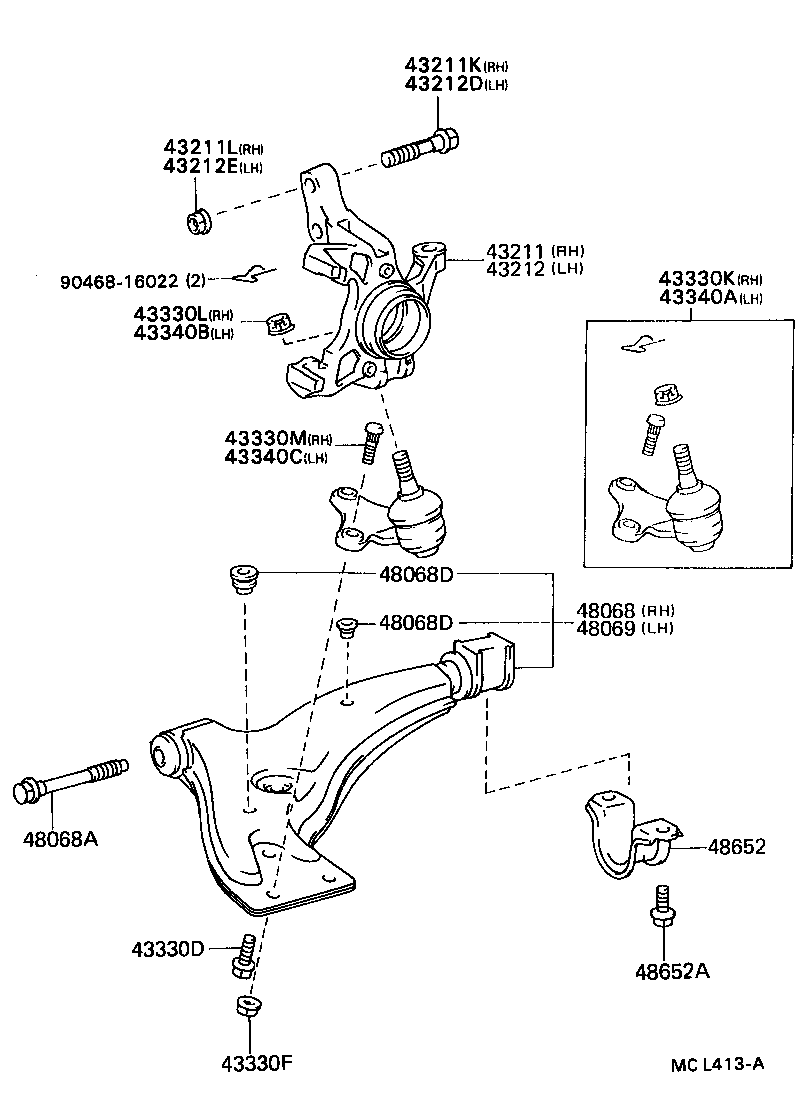

diagram 43211 43211K 43211L 43212 43212D 43212E 43330D 43330F 43330K 43330L 43330M 43340A 43340B 43340C 48068 48068A 48068D 48068D 48069 48652 48652A 9046816022
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-16040

EL44

 1
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-15002

EL44

OD=15.0

 2
90105-15001

EL44

OD=15.0

 2
43211L - NUT (FOR STEERING KNUCKLE RH)
90179-15001

EL44

 2
90179-15007

EL44

 2
90179-15001

EL44

 2
43212 - KNUCKLE, STEERING, LH
43212-16040

EL44

 1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-15001

EL44

OD=15.0

 2
90105-15002

EL44

OD=15.0

 2
43212E - NUT (FOR STEERING KNUCKLE LH)
90179-15001

EL44

 2
90179-15001

EL44

 2
90179-15007

EL44

 2
43330D - BOLT (FOR FRONT LOWER BALL JOINT)
90119-10785

EL44

 2
90119-10407

EL44

 2
43330F - NUT (FOR FRONT LOWER BALL JOINT SETTING)
90179-10088

EL44

 4
90179-10211

EL44

 4
43330K - JOINT ASSY, LOWER BALL, FRONT RH
43330-19085

EL44

 1
43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
90171-12007

EL44

 1
43330M - BOLT (FOR FRONT LOWER BALL JOINT RH)
90114-10036

EL44

 2
43340A - JOINT ASSY, LOWER BALL, FRONT LH
43340-19025

EL44

 1
43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
90171-12007

EL44

 1
43340C - BOLT (FOR FRONT LOWER BALL JOINT LH)
90114-10036

EL44

 2
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-16100

EL44

 1
48068-16060

EL44

 1
48068A - BOLT(FOR FRONT SUSPENSION LOWER ARM)
90119-12099

EL44

 2
48068D - PLUG, HOLE(FOR FRONT SUSPENSION LOWER ARM)
90950-01478

EL44

H=13,OD=21

 6
90950-01414

EL44

H=11,OD=16

 2
90950-01414

EL44

OD=16,H=11

 2
90950-01478

EL44

OD=21,H=13

 6
48068D - PLUG, HOLE(FOR FRONT SUSPENSION LOWER ARM)
90950-01478

EL44

H=13,OD=21

 6
90950-01414

EL44

H=11,OD=16

 2
90950-01414

EL44

OD=16,H=11

 2
90950-01478

EL44

OD=21,H=13

 6
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-16060

EL44

 1
48069-16100

EL44

 1
48652 - BRACKET, FRONT LOWER ARM
48652-10020

EL44

 2
48652A - BOLT(FOR FRONT LOWER ARM BRACKET)
90105-12222

EL44

 4
90901-19018

EL44

 4
Common parts
90468-16022
