EL44R-DCPSKQ (1991)

Toyota Paseo

Production Apr 1991 - Aug 1995
Engine 5EFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9104- )

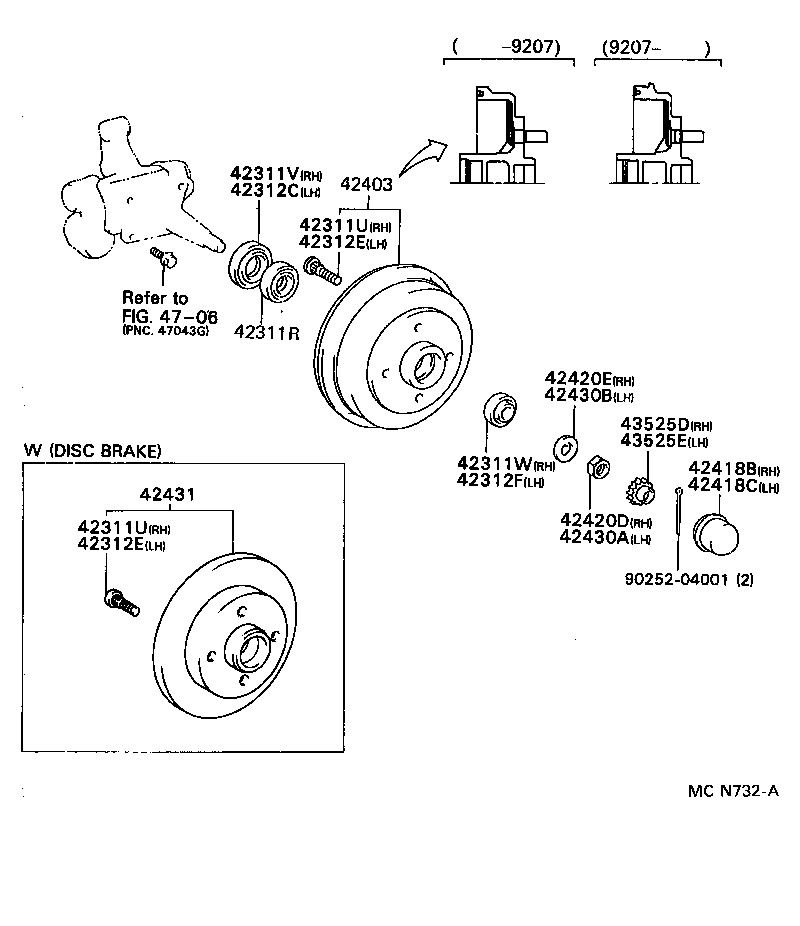

Click highlighted areas on diagram

diagram 42311R 42311U 42311U 42311V 42311W 42312C 42312E 42312E 42312F 42403 42418B 42418C 42420D 42420E 42430A 42430B 42431 43525D 43525E 4706 9025204001
Part # Description Qty Price
42311R - BEARING (FOR REAR AXLE SHAFT INNER)
90366-27001

EL44

 2
42311U - BOLT, HUB (FOR REAR AXLE RH)
90942-02047

EL44

 4
42311U - BOLT, HUB (FOR REAR AXLE RH)
90942-02047

EL44

 4
42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH)
90311-38037

EL44

 1
42311W - BEARING (FOR REAR AXLE SHAFT OUTER RH)
90368-17017

EL44

 1
90366-17010

EL44

 1
42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH)
90311-38037

EL44

 1
42312E - BOLT, HUB (FOR REAR AXLE LH)
90942-02047

EL44

 4
42312E - BOLT, HUB (FOR REAR AXLE LH)
90942-02047

EL44

 4
42312F - BEARING (FOR REAR AXLE SHAFT OUTER LH)
90368-17017

EL44

 1
90366-17010

EL44

 1
42403 - DRUM SUB-ASSY, REAR BRAKE
42403-10060

EL44

 2
42403-10020

EL44

 2
42403-19015

EL44

 2
42418B - CAP, REAR HUB GREASE, RH
43514-10030

EL44

 1
42418C - CAP, REAR HUB GREASE, LH
43514-10030

EL44

 1
42420D - NUT (FOR REAR AXLE SHAFT RH)
90170-16137

EL44

 1
94125-41600

EL44

 1
42420E - WASHER, CLAW (FOR REAR AXLE SHAFT RH)
90214-16010

EL44

 1
42430A - NUT (FOR REAR AXLE SHAFT LH)
94125-41600

EL44

 1
90170-16137

EL44

 1
42430B - WASHER, CLAW (FOR REAR AXLE SHAFT LH)
90214-16010

EL44

 1
42431 - DISC, REAR
42403-19025

EL44

 2
42403-19025

EL44

 2
43525D - CAP, REAR WHEEL ADJUSTING LOCK, RH
43525-20011

EL44

 1
43525E - CAP, REAR WHEEL ADJUSTING LOCK, LH
43525-20011

EL44

 1
Common parts
90252-04001
Linked diagrams
4706
