EL44R-DCPSKQ (1991)

Toyota Paseo

Production Apr 1991 - Aug 1995
Engine 5EFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9104- )ATM

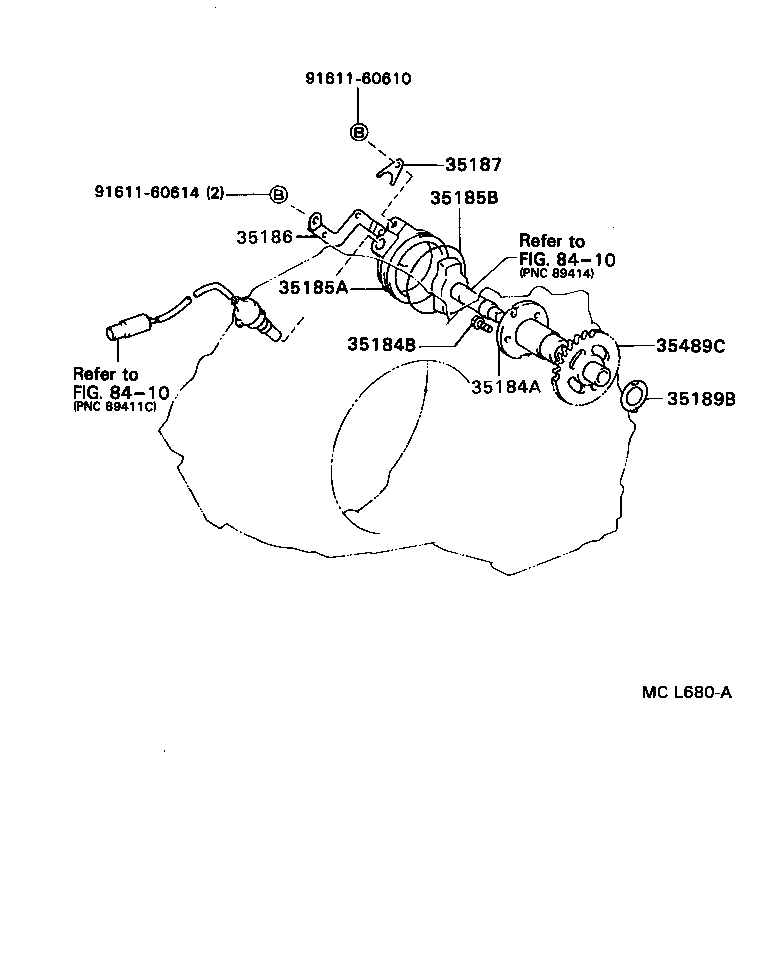

Click highlighted areas on diagram

A244E

diagram 35184A 35184B 35185A 35185B 35186 35187 35189B 35489C 8410 8410 9161160610 9161160614
Part # Description Qty Price
35184A - ADAPTER, SENSOR ROTOR
35184-12010

EL44..ATM

 1
35184B - BOLT(FOR SENSOR ROTOR ADAPTER)
90105-06053

EL44..ATM

 3
35185A - COVER, SPEED SENSOR
35185-12010

EL44..ATM

 1
35185B - RING, O (FOR SPEED SENSOR COVER)
90301-68001

EL44..ATM

 1
35186 - BRACKET, SPEED SENSOR COVER
35186-12010

EL44..ATM

 1
35187 - PLATE, SPEED SENSOR LOCK
35187-12010

EL44..ATM

 1
35189B - WASHER, GOVERNOR THRUST, NO.2
35189-12010

EL44..ATM

 1
35489C - GEAR, GOVERNOR DRIVEN
35489-12010

EL44..ATM

 1
Common parts
91611-60610
91611-60614
Linked diagrams
8410
