EL44R-DCPSKQ (1991)

Toyota Paseo

Production Apr 1991 - Aug 1995
Engine 5EFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9104- )

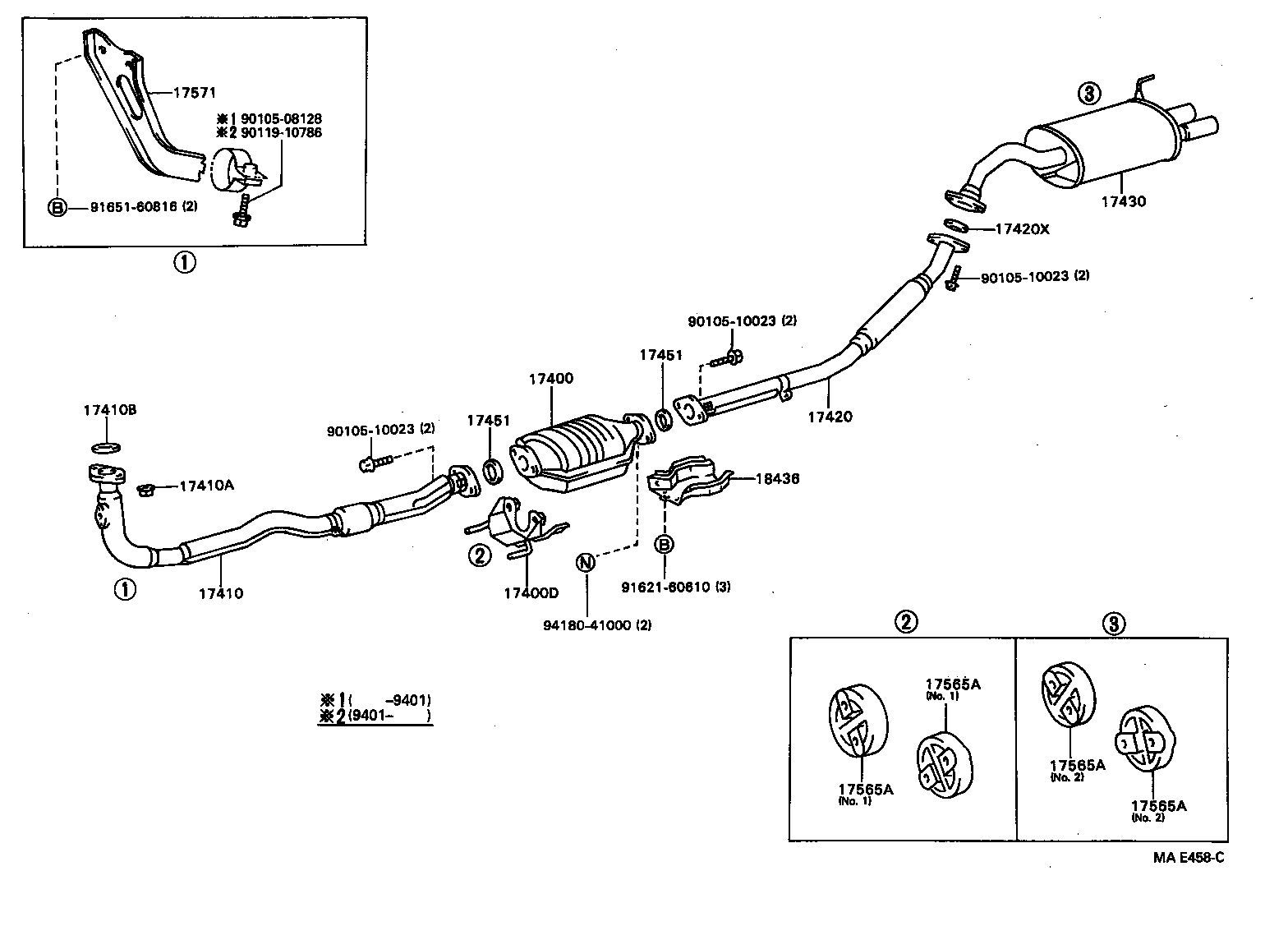

Click highlighted areas on diagram

diagram 17400 17400D 17410 17410A 17410B 17420 17420X 17430 17451 17451 17565A 17565A 17565A 17565A 17571 18436 9010508128 9010510023 9010510023 9010510023 9011910786 9162160610 9165160816 9418041000
Part # Description Qty Price
17400 - CONVERTER ASSY, W/CATALYST
18450-11120

5EFE..EL44

 1
17400D - BRACKET, CATALYTIC CONVERTER SUPPORT
17503-11020

5EFE..EL44

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-11371

5EFE..EL44

 1
17410-11370

5EFE..EL44

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

5EFE..EL44

 2
17410B - GASKET, EXHAUST PIPE
90917-06061

5EFE..EL44

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-11130

5EFE..EL44

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06039

5EFE..EL44

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-11610

5EFE..EL44

 1
17451 - GASKET, EXHAUST PIPE
90917-06045

5EFE..EL44

 2
17451 - GASKET, EXHAUST PIPE
90917-06045

5EFE..EL44

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-11160

5EFE..EL44

NO.1

 2
17565-74290

5EFE..EL44

NO.2

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-11160

5EFE..EL44

NO.1

 2
17565-74290

5EFE..EL44

NO.2

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-11160

5EFE..EL44

NO.1

 2
17565-74290

5EFE..EL44

NO.2

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-11160

5EFE..EL44

NO.1

 2
17565-74290

5EFE..EL44

NO.2

 2
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-11160

5EFE..EL44

 1
17571-11180

5EFE..EL44

 1
18436 - PROTECTOR, MONOLITHIC CONVERTER, NO.1
18436-63010

5EFE..EL44

 1
Common parts
90105-08128
90105-10023
90119-10786
91621-60610
91651-60816
94180-41000
