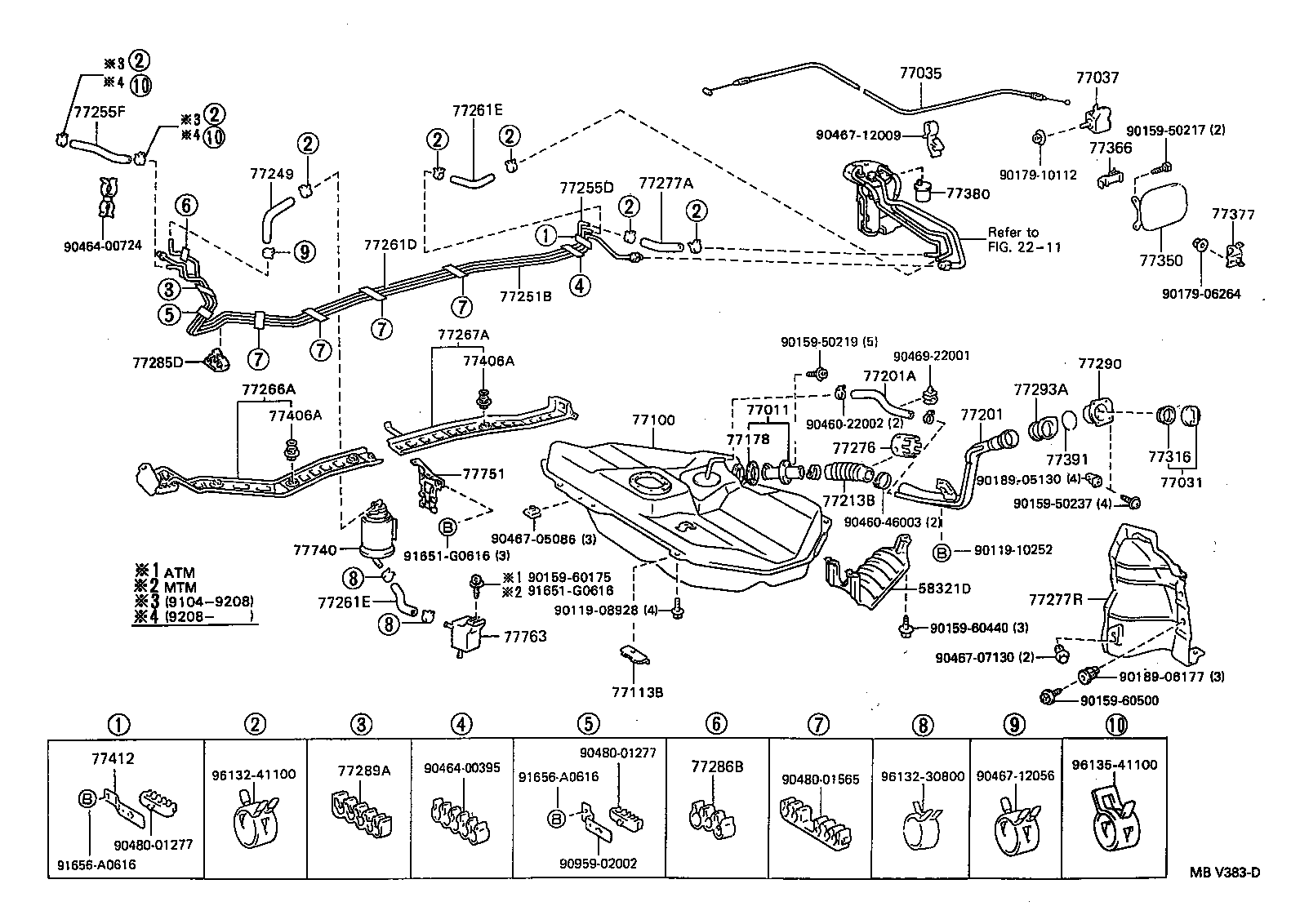

Toyota Paseo EL44 FUEL TANK & TUBE

Part #	Description	Period	Qty
58321D - INSULATOR, REAR FLOOR HEAT, NO.1
58321-10020	EL44	04/1991 - 08/1995	1
77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77011-10060	EL44	08/1992 - 08/1995	1
77011-16080	EL44	04/1991 - 08/1992	1
77031 - CAP ASSY, FUEL TANK
77310-16011	EL44	04/1991 - 08/1995	1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-16180	EL44	04/1991 - 08/1995	1
77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID
77037-16030	EL44	04/1991 - 08/1995	1
77100 - TANK ASSY, FUEL
77001-16220	EL44	04/1991 - 08/1995	1
77113B - PLATE, FUEL TANK SIDE
77113-10020	EL44	04/1991 - 08/1995	4
77178 - GASKET, FUEL TANK FILLER PIPE, LOWER
77178-20030	EL44	08/1992 - 08/1995	1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-16211	EL44	05/1991 - 08/1995	1
77201-16210	EL44	04/1991 - 05/1991	1
77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
95311-13028	EL44 L=280	04/1991 - 08/1995	1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-16070	EL44	04/1991 - 08/1995	1
77249 - HOSE, FUEL EMISSION
77249-16020	EL44	04/1991 - 08/1995	1
77251B - TUBE, FUEL MAIN
77251-16230	EL44	04/1991 - 08/1995	1
77255D - TUBE, FUEL RETURN
77255-16220	EL44	04/1991 - 08/1995	1
77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
23271-11140	EL44 *H,L=420	04/1991 - 08/1995	1
77261D - TUBE, FUEL TANK TO CANISTER
77261-16140	EL44	04/1991 - 08/1995	1
77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
77419-10010	EL44 L=140	04/1991 - 08/1995	1
95333-08020	EL44..MTM L=200,ID=8	04/1991 - 08/1995	1
77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
77419-10010	EL44 L=140	04/1991 - 08/1995	1
95333-08020	EL44..MTM L=200,ID=8	04/1991 - 08/1995	1
77266A - PROTECTOR, FUEL TUBE, NO.1
77266-10030	EL44	04/1991 - 08/1995	1
77267A - PROTECTOR, FUEL TUBE, NO.2
77267-16020	EL44	04/1991 - 08/1995	1
77276 - PROTECTOR, FUEL HOSE
77276-10020	EL44	04/1991 - 08/1995	1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95333-06020	EL44 *H,L=200	01/1993 - 08/1995	1
77279-10020	EL44 L=200	04/1991 - 01/1993	1
77277R - PROTECTOR, FUEL TANK FILLER PIPE
77277-16110	EL44	04/1991 - 08/1995	1
77285D - CLAMP, FUEL TUBE, NO.1
77285-10010	EL44	07/1993 - 09/1994	1
77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2
77286-10020	EL44	04/1991 - 08/1995	1
77289A - CLAMP, FUEL TUBE W/GROMMET, NO.3
77289-10030	EL44	04/1991 - 08/1995	1
77290 - SHIELD ASSY, FUEL TANK FILLER PIPE
77290-16100	EL44	04/1991 - 08/1995	1
77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3
77293-16090	EL44	04/1991 - 08/1995	1
77316 - GASKET, FUEL TANK CAP
77316-16010	EL44	04/1991 - 08/1995	1
77350 - LID ASSY, FUEL FILLER OPENING
77350-16180	EL44	04/1991 - 08/1995	1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77360-20030	EL44	04/1991 - 08/1995	1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-20050	EL44	04/1991 - 08/1995	1
77380 - VALVE ASSY, FUEL CUT OFF
77380-26010	EL44	08/1992 - 08/1995	1
77391 - RING, FUEL INLET BOX
77391-14020	EL44	04/1991 - 08/1995	1
77406A - CLIP(FOR FUEL TUBE PROTECTOR)
90467-16023	EL44	04/1991 - 08/1995	4
77406A - CLIP(FOR FUEL TUBE PROTECTOR)
90467-16023	EL44	04/1991 - 08/1995	4
77412 - SUPPORT, FUEL TUBE GROMMET, NO.2
77412-10010	EL44	04/1991 - 08/1995	1
77740 - CANISTER ASSY, CHARCOAL
77740-16190	EL44	04/1991 - 08/1995	1
77751 - BRACKET, CHARCOAL CANISTER BASE
77751-16150	EL44	04/1991 - 08/1995	1
77763 - CASE, CHARCOAL CANISTER DRAIN
77763-10020	EL44..MTM	04/1991 - 08/1995	1
Common parts
90119-08928
90119-10252
90159-50217
90159-50219
90159-50237
90159-60175
90159-60440
90159-60500
90179-06264
90179-10112
90189-05130
90189-06177
90460-22002
90460-46003
90464-00395
90464-00724
90467-05086
90467-07130
90467-12009
90467-12056
90469-22001
90480-01277
90480-01565
90959-02002
91651-G0616
91656-A0616
96132-30800
96132-41100
96135-41100
Linked diagrams
2211

EL44R-DCMSKQ (1991)

(9104- )
