EL44R-DCMSKQ (1991)
Toyota Paseo
Production
Apr 1991
-
Aug 1995
Engine
5EFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9104- )

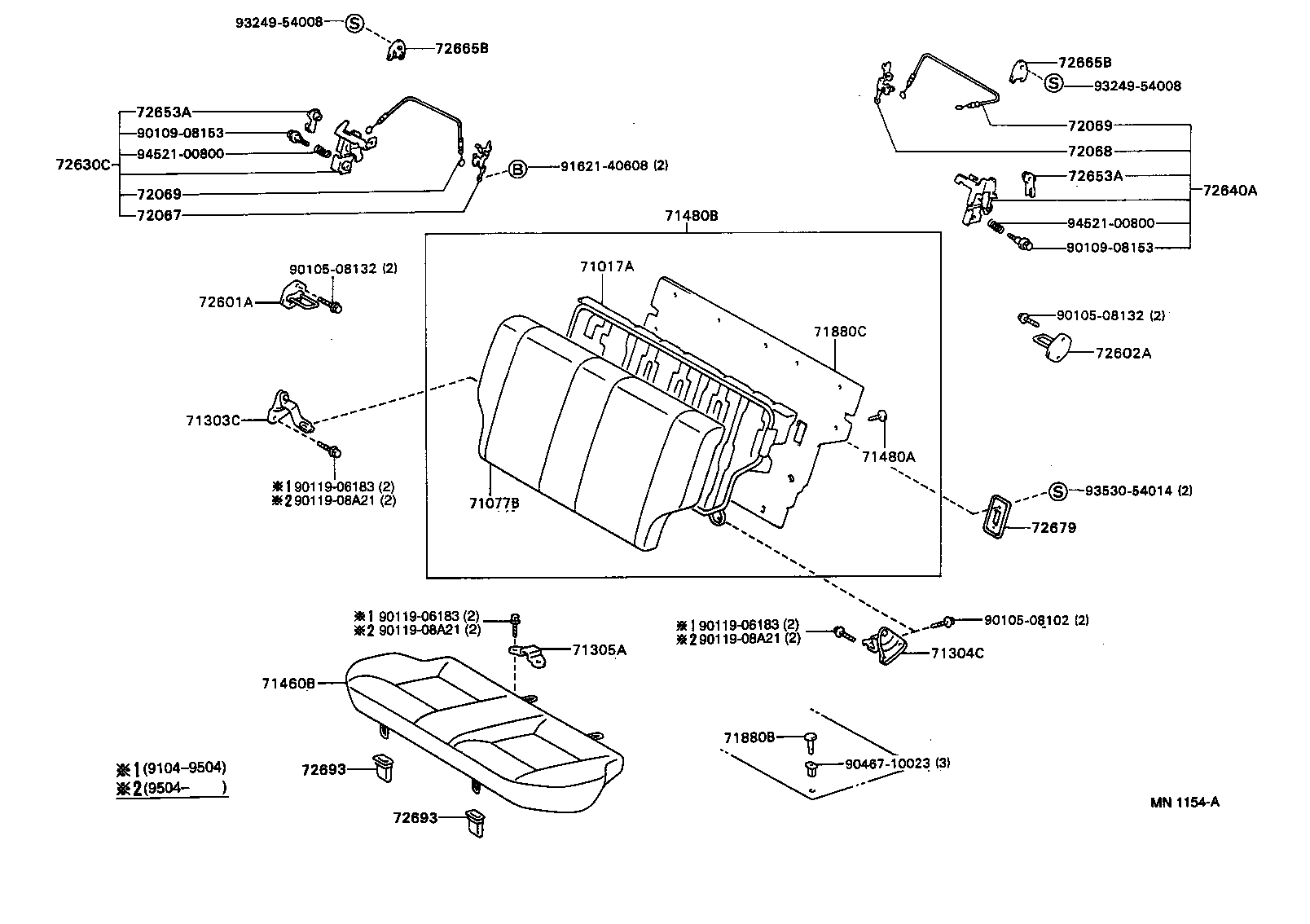

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017A - FRAME SUB-ASSY, REAR SEAT BACK | ||||
| 71017-16170 |
EL44 |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71603-16040C1 |
EL44 GRAY,TRIM2# |
1 | ||
| 71603-1602003 |
EL44 GRAY,TRIM2# |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-16050 |
EL44 |
1 | ||
| 71303-16070 |
EL44 |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71304-16010 |
EL44 |
1 | ||
| 71304-16050 |
EL44 |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71343-16070 |
EL44 |
1 | ||
| 71343-16090 |
EL44 |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71560-1671003 |
EL44 GRAY,TRIM2# |
1 | ||
| 71560-16770C0 |
EL44 GRAY,TRIM2# |
1 | ||
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90467-0704901 |
EL44 BLACK,TRIM2# |
10 | ||
| 90467-07049C0 |
EL44 BLACK,TRIM2# |
10 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-1G750C0 |
EL44 ***,GRAY,TRIM2# |
1 | ||
| 71480-1G67003 |
EL44 ***,GRAY,TRIM2# |
1 | ||
| 71880B - CLIP(FOR REAR SEAT BACK CARPET) | ||||
| 90467-0702622 |
EL44 BLACK,TRIM2# |
3 | ||
| 90467-0702633 |
EL44 GRAY,TRIM2# |
3 | ||
| 71880C - CARPET ASSY, REAR SEAT BACK BOARD | ||||
| 71885-1605001 |
EL44 BLACK,TRIM2# |
1 | ||
| 71885-16050C0 |
EL44 BLACK,TRIM2# |
1 | ||
| 72067 - LEVER SUB-ASSY, REAR BACK LOCK CONTROL, RH | ||||
| 72067-16020 |
EL44 |
1 | ||
| 72067-16021 |
EL44 |
1 | ||
| 72068 - LEVER SUB-ASSY, REAR BACK LOCK CONTROL, LH | ||||
| 72068-16020 |
EL44 |
1 | ||
| 72068-16021 |
EL44 |
1 | ||
| 72069 - CABLE SUB-ASSY, REAR SEAT BACK LOCK CONTROL | ||||
| 72069-16030 |
EL44 |
2 | ||
| 72069 - CABLE SUB-ASSY, REAR SEAT BACK LOCK CONTROL | ||||
| 72069-16030 |
EL44 |
2 | ||
| 72601A - STRIKER SUB-ASSY, REAR SEAT BACK LOOK, RH | ||||
| 72601-16070 |
EL44 |
1 | ||
| 72602A - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH | ||||
| 72601-16070 |
EL44 |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-16131C0 |
EL44 BLACK,TRIM2# |
1 | ||
| 72630-1613001 |
EL44 BLACK,TRIM2# |
1 | ||
| 72630-16130C0 |
EL44 BLACK,TRIM2# |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-16140C0 |
EL44 BLACK,TRIM2# |
1 | ||
| 72640-1614001 |
EL44 BLACK,TRIM2# |
1 | ||
| 72640-16141C0 |
EL44 BLACK,TRIM2# |
1 | ||
| 72653A - SNAP, REAR SEAT BACK LOCK ROD | ||||
| 69759-24020 |
EL44 LH |
1 | ||
| 69759-24010 |
EL44 RH |
1 | ||
| 72653A - SNAP, REAR SEAT BACK LOCK ROD | ||||
| 69759-24020 |
EL44 LH |
1 | ||
| 69759-24010 |
EL44 RH |
1 | ||
| 72665B - COVER, REAR SEAT BACK LOCK | ||||
| 72665-1604022 |
EL44 BLACK,TRIM2# |
2 | ||
| 72665-1604001 |
EL44 BLACK,TRIM2# |
2 | ||
| 72665B - COVER, REAR SEAT BACK LOCK | ||||
| 72665-1604022 |
EL44 BLACK,TRIM2# |
2 | ||
| 72665-1604001 |
EL44 BLACK,TRIM2# |
2 | ||
| 72679 - BEZEL, REAR SEAT BACK LOCK CONTROL | ||||
| 72679-20020C0 |
EL44 BLACK,TRIM2# |
2 | ||
| 72679-16010C0 |
EL44 BLACK,TRIM2# |
2 | ||
| 72679-1601001 |
EL44 BLACK,TRIM2# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-32020 |
EL44 |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-32020 |
EL44 |
2 | ||
| Common parts | ||||
| 90105-08102 | ||||
| 90105-08132 | ||||
| 90109-08153 | ||||
| 90119-06183 | ||||
| 90119-08A21 | ||||
| 90467-10023 | ||||
| 91621-40608 | ||||
| 93249-54008 | ||||
| 93530-54014 | ||||
| 94521-00800 | ||||
