EL44R-DCMSKQ (1991)
Toyota Paseo
Production
Apr 1991
-
Aug 1995
Engine
5EFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

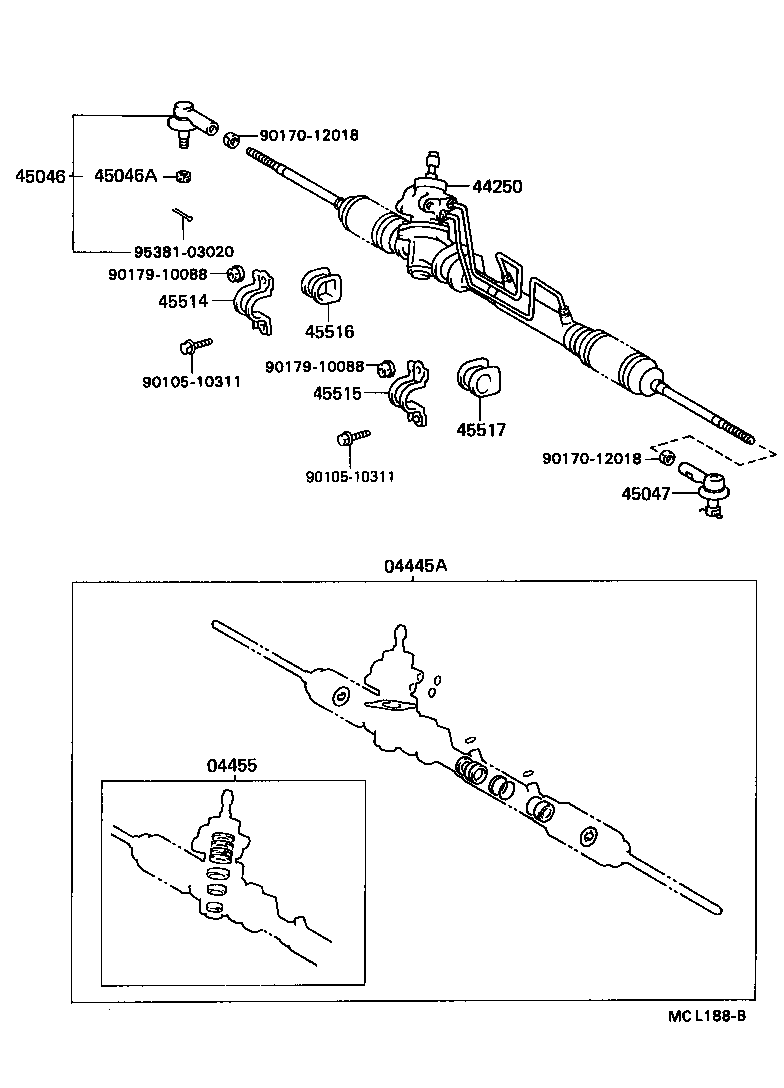

ILLUST NO. 1 OF 2(9104- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-10030 |
EL44 |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-10030 |
EL44 |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-16170 |
EL44 |
1 | ||
| 44250-16171 |
EL44 |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-19206 |
EL44 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
EL44 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-19206 |
EL44 |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-16060 |
EL44 |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45514-16060 |
EL44 |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-16060 |
EL44 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-10070 |
EL44 |
1 | ||
| Common parts | ||||
| 90105-10311 | None epc.PartDetail.None | |||
| 90170-12018 | None epc.PartDetail.None | |||
| 90179-10088 | None epc.PartDetail.None | |||
| 95381-03020 | None epc.PartDetail.None | |||

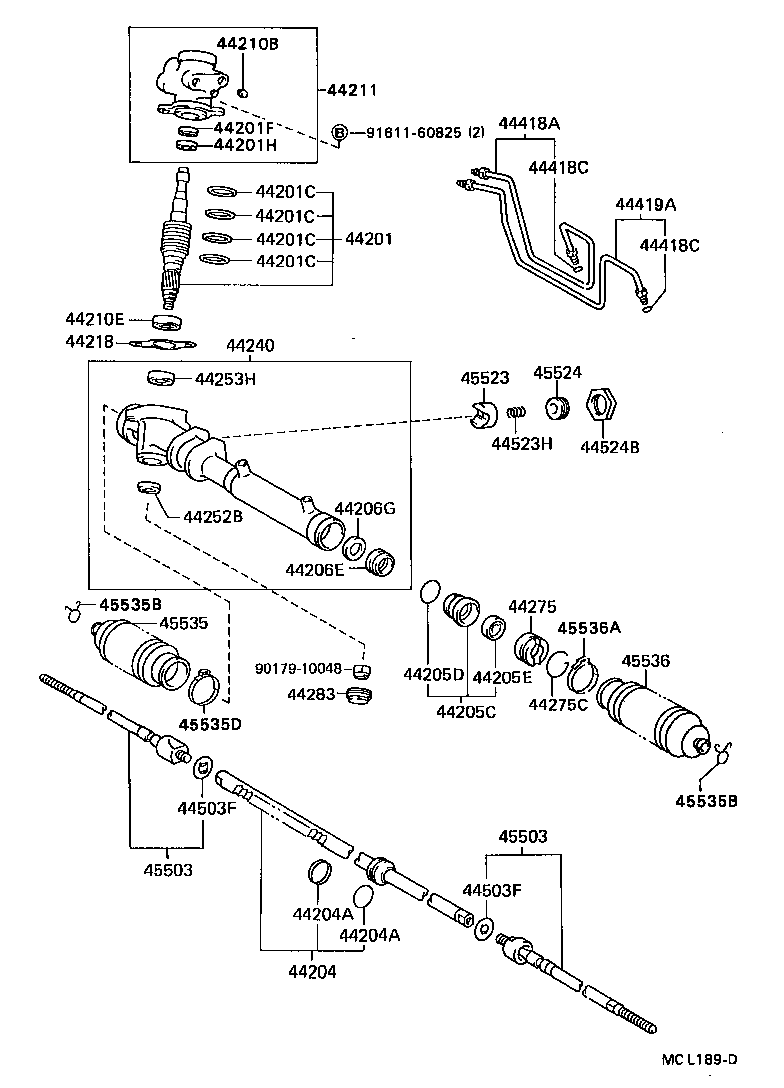

ILLUST NO. 2 OF 2(9104- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-16110 |
EL44 |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90560-33005 |
EL44 |
4 | ||
| 90560-33007 |
EL44 |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90560-33005 |
EL44 |
4 | ||
| 90560-33007 |
EL44 |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90560-33005 |
EL44 |
4 | ||
| 90560-33007 |
EL44 |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90560-33005 |
EL44 |
4 | ||
| 90560-33007 |
EL44 |
4 | ||
| 44201F - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-19010 |
EL44 |
1 | ||
| 44201H - BEARING(FOR POWER STEERING CONTROL VALVE UPPER) | ||||
| 90365-19001 |
EL44 |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-10030 |
EL44 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-29005 |
EL44 INNER |
1 | ||
| 90562-34002 |
EL44 OUTER |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-29005 |
EL44 INNER |
1 | ||
| 90562-34002 |
EL44 OUTER |
1 | ||
| 44205C - BUSH SUB-ASSY, POWER STEERING RACK | ||||
| 44205-10020 |
EL44 |
1 | ||
| 44205D - RING, O(FOR POWER STEERING RACK BUSH) | ||||
| 90301-33004 |
EL44 |
1 | ||
| 44205E - SEAL, OIL(FOR POWER STEERING RACK BUSH) | ||||
| 90311-22014 |
EL44 |
1 | ||
| 44206E - SEAL, OIL, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90311-22013 |
EL44 |
1 | ||
| 90311-22015 |
EL44 |
1 | ||
| 44206G - SPACER, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90560-23011 |
EL44 |
1 | ||
| 44263-16010 |
EL44 |
1 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-05006 |
EL44 |
1 | ||
| 44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-26003 |
EL44 |
1 | ||
| 44211 - HOUSING, CONTROL VALVE | ||||
| 44022-10020 |
EL44 |
1 | ||
| 44218 - GASKET, VALVE HOUSING | ||||
| 44218-12020 |
EL44 |
1 | ||
| 44240 - HOUSING ASSY, POWER STEERING RACK | ||||
| 44240-10040 |
EL44 |
1 | ||
| 44240-16070 |
EL44 |
1 | ||
| 44252B - BEARING(FOR POWER STEERING PINION) | ||||
| 90363-12009 |
EL44 |
1 | ||
| 44253H - BEARING, NO.1(FOR POWER STEERING RACK HOUSING) | ||||
| 90364-22006 |
EL44 |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-16020 |
EL44 |
1 | ||
| 44275C - WIRE(FOR CYLINDER END STOPPER) | ||||
| 90580-18001 |
EL44 |
1 | ||
| 44283 - CAP, RACK HOUSING | ||||
| 44283-16010 |
EL44 |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-10020 |
EL44 |
1 | ||
| 44418C - RING, O(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90301-03001 |
EL44 |
4 | ||
| 44418C - RING, O(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90301-03001 |
EL44 |
4 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-10020 |
EL44 |
1 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-12002 |
EL44 |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-12002 |
EL44 |
2 | ||
| 44523H - SPRING(FOR POWER STEERING RACK GUIDE) | ||||
| 90501-23097 |
EL44 |
1 | ||
| 90501-23075 |
EL44 |
1 | ||
| 44524B - NUT(FOR POWER STEERING RACK GUIDE CAP) | ||||
| 90179-30002 |
EL44 |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19185 |
EL44 |
2 | ||
| 45503-19155 |
EL44 |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19185 |
EL44 |
2 | ||
| 45503-19155 |
EL44 |
2 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-10030 |
EL44 |
1 | ||
| 45523-10040 |
EL44 |
1 | ||
| 45504-16050 |
EL44 |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-10030 |
EL44 |
1 | ||
| 45524-17020 |
EL44 |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-16030 |
EL44 |
1 | ||
| 45535-10050 |
EL44 |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-17021 |
EL44 |
2 | ||
| 90467-18003 |
EL44 |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-17021 |
EL44 |
2 | ||
| 90467-18003 |
EL44 |
2 | ||
| 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) | ||||
| 90460-49003 |
EL44 |
1 | ||
| 90460-52004 |
EL44 |
1 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-16030 |
EL44 |
1 | ||
| 45535-10050 |
EL44 |
1 | ||
| 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) | ||||
| 90460-52004 |
EL44 |
1 | ||
| 90460-49003 |
EL44 |
1 | ||
| Common parts | ||||
| 90179-10048 | None epc.PartDetail.None | |||
| 91611-60825 | None epc.PartDetail.None | |||
