ZRR70R-ARXEP (2010)
Toyota Noah
Production
Apr 2010
-
Jan 2014
Engine
3ZRFAE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1004- )

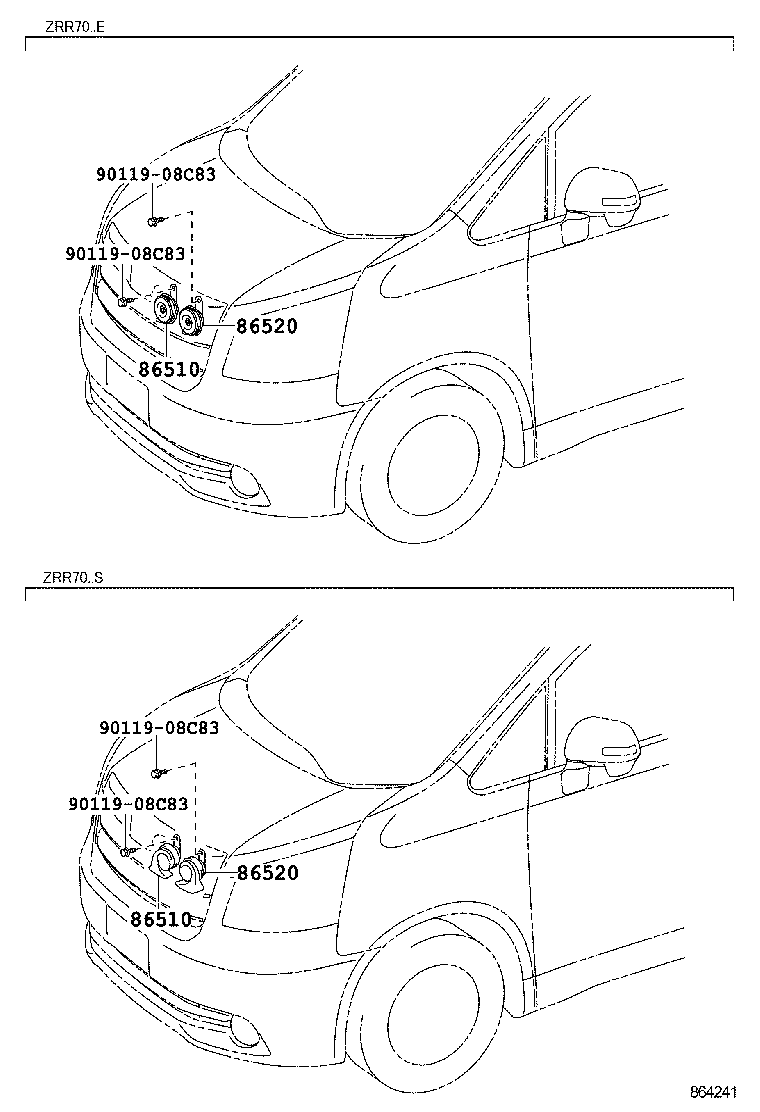

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86510 - HORN ASSY, HIGH PITCHED | ||||
| 86510-28130 |
ZRR70..E..GEN |
1 | ||
| 86510-28130 |
ZRR70 |
1 | ||
| 86510 - HORN ASSY, HIGH PITCHED | ||||
| 86510-28130 |
ZRR70..E..GEN |
1 | ||
| 86510-28130 |
ZRR70 |
1 | ||
| 86520 - HORN ASSY, LOW PITCHED | ||||
| 86520-28180 |
ZRR70 |
1 | ||
| 86520-28180 |
ZRR70..E..GEN |
1 | ||
| 86520 - HORN ASSY, LOW PITCHED | ||||
| 86520-28180 |
ZRR70 |
1 | ||
| 86520-28180 |
ZRR70..E..GEN |
1 | ||
| Common parts | ||||
| 90119-08C83 | ||||
