ZRR70R-ARXEK (2008)

Toyota Noah

Production Aug 2008 - Apr 2010
Engine 3ZRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0808-1004)

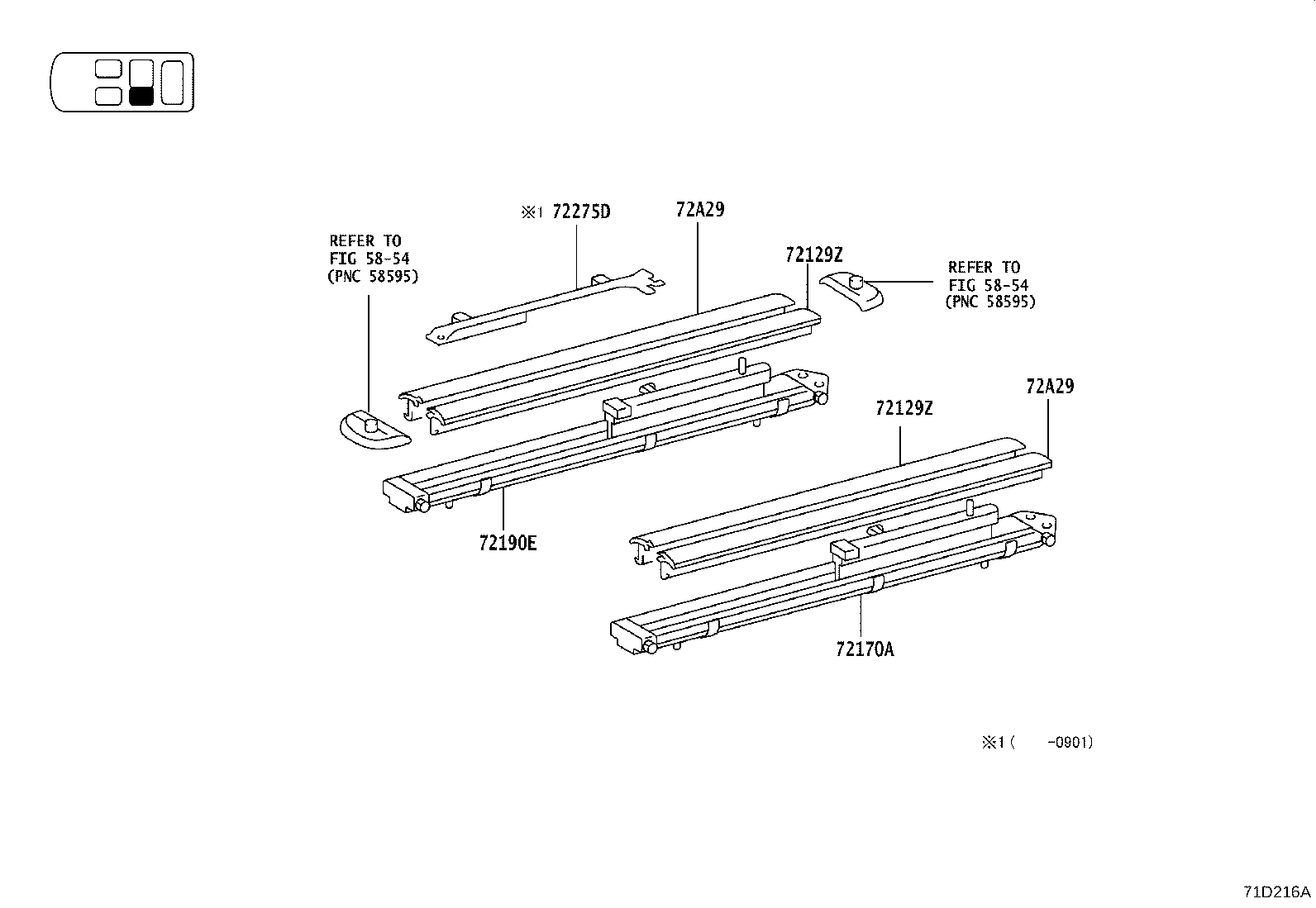

Click highlighted areas on diagram

REAR NO.1 SEAT(LH),HONG KONG SPEC

diagram 5854 5854 72129Z 72129Z 72170A 72190E 72275D 72A29 72A29
Part # Description Qty Price
72129Z - PROTECTOR, SEAT TRACK LOWER RAIL
72129-28240E0

ZRR70

HONG KONG SPEC,GREGE,TRIM4#

 4
72129Z - PROTECTOR, SEAT TRACK LOWER RAIL
72129-28240E0

ZRR70

HONG KONG SPEC,GREGE,TRIM4#

 4
72170A - TRACK ASSY, REAR SEAT, OUTER LH
72170-28640

ZRR70

HONG KONG SPEC

 1
72190E - TRACK ASSY, REAR SEAT, INNER LH
72190-28050

ZRR70

HONG KONG SPEC

 1
72275D - STOPPER, REAR SEAT TRACK SLIDE, RH NO.1
72275-28060

ZRR70

HONG KONG SPEC

 2
72A29 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-28230E0

ZRR70

HONG KONG SPEC,GREGE,TRIM4#

 4
72A29 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-28230E0

ZRR70

HONG KONG SPEC,GREGE,TRIM4#

 4
Linked diagrams
5854
