ZRR70R-ARXEK (2008)
Toyota Noah
Production
Aug 2008
-
Apr 2010
Engine
3ZRFE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0808- )

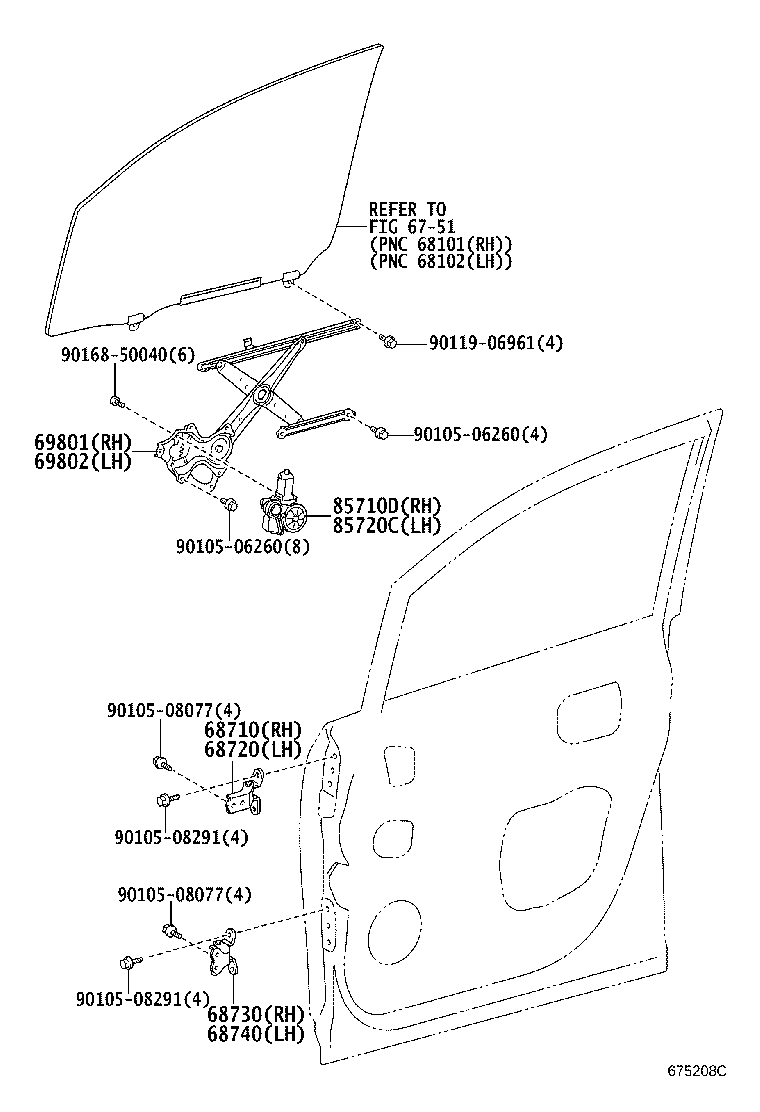

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68710 - HINGE ASSY, FRONT DOOR, UPPER RH | ||||
| 68710-12151 |
ZRR70 |
1 | ||
| 68720 - HINGE ASSY, FRONT DOOR, UPPER LH | ||||
| 68720-12151 |
ZRR70 |
1 | ||
| 68730 - HINGE ASSY, FRONT DOOR, LOWER RH | ||||
| 68730-33021 |
ZRR70 |
1 | ||
| 68740 - HINGE ASSY, FRONT DOOR, LOWER LH | ||||
| 68740-33021 |
ZRR70 |
1 | ||
| 69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH | ||||
| 69801-28100 |
ZRR70 |
1 | ||
| 69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH | ||||
| 69802-28080 |
ZRR70 |
1 | ||
| 85710D - MOTOR ASSY, POWER WINDOW REGULATOR, RH | ||||
| 85710-48060 |
ZRR70 |
1 | ||
| 85710-30400 |
ZRR70 |
1 | ||
| 85720C - MOTOR ASSY, POWER WINDOW REGULATOR, LH | ||||
| 85720-48070 |
ZRR70 |
1 | ||
| 85720-30340 |
ZRR70 |
1 | ||
| Common parts | ||||
| 90105-06260 | ||||
| 90105-08077 | ||||
| 90105-08291 | ||||
| 90119-06961 | ||||
| 90168-50040 | ||||
| Linked diagrams | ||||
| 6751 | ||||
