ZRR70R-ARXEK (2008)
Toyota Noah
Production
Aug 2008
-
Apr 2010
Engine
3ZRFE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)

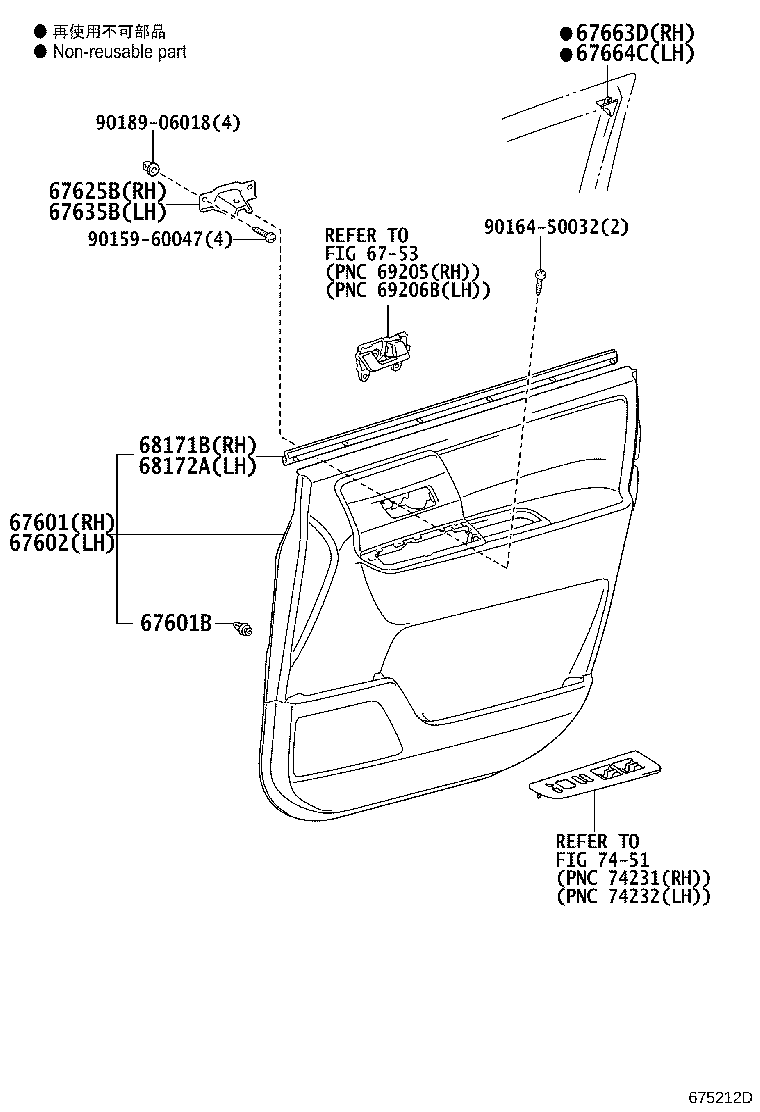

ILLUST NO. 2 OF 2(0808- )
Click highlighted areas on diagram
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-28C60E1 |
ZRR70 GREGE,TRIM4# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
ZRR70 |
22 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-28C80E2 |
ZRR70 GREGE,TRIM4# |
1 | ||
| 67625B - BRACKET, DOOR TRIM, NO.1 RH | ||||
| 67625-28080 |
ZRR70 |
1 | ||
| 67635B - BRACKET, DOOR TRIM, NO.1 LH | ||||
| 67625-28080 |
ZRR70 |
1 | ||
| 67663D - GARNISH, DOOR FRAME, RH | ||||
| 67663-48010 |
ZRR70 |
1 | ||
| 67664C - GARNISH, DOOR FRAME, LH | ||||
| 67664-48010 |
ZRR70 |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-28081 |
ZRR70 |
1 | ||
| 68171-28080 |
ZRR70 |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-28071 |
ZRR70 |
1 | ||
| 68172-28070 |
ZRR70 |
1 | ||
| Common parts | ||||
| 90159-60047 | ||||
| 90164-50032 | ||||
| 90189-06018 | ||||
| Linked diagrams | ||||
| 6753 | ||||
| 7451 | ||||

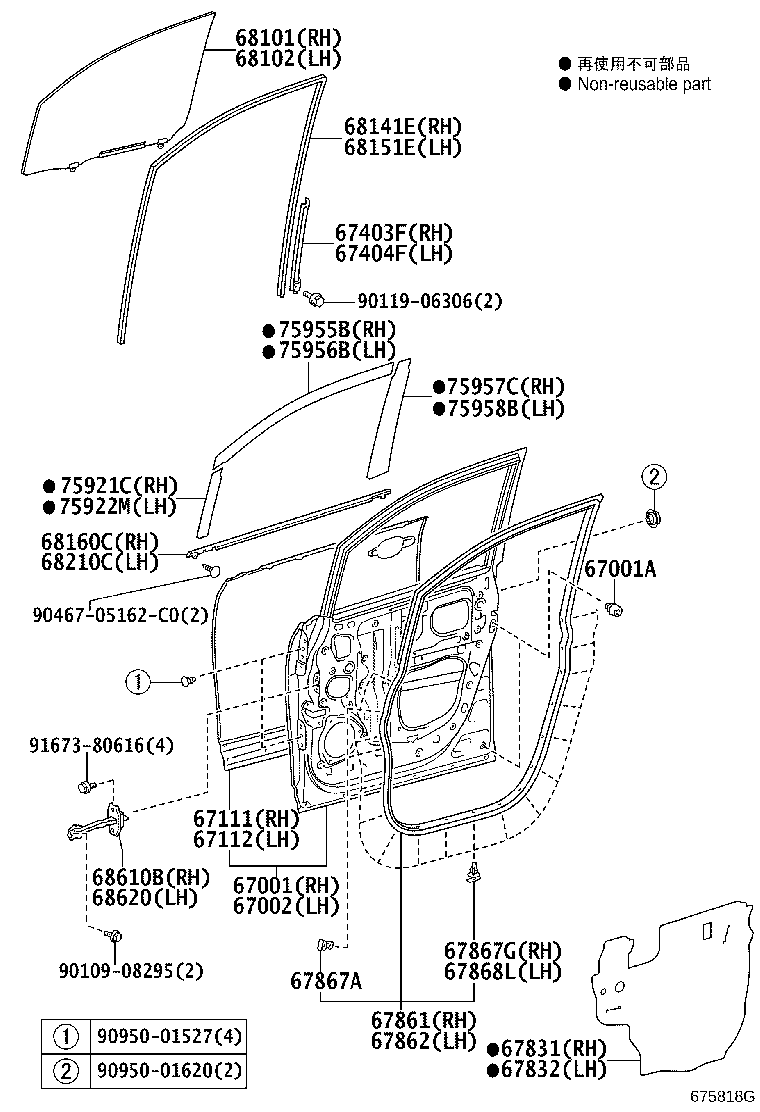

ILLUST NO. 1 OF 2(0808- )
Click highlighted areas on diagram
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-28220 |
ZRR70 |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09069 |
ZRR70 |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-28230 |
ZRR70 |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-28110 |
ZRR70 |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-28120 |
ZRR70 |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-28100 |
ZRR70 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-28100 |
ZRR70 |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-28170 |
ZRR70 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-28100 |
ZRR70 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-28090 |
ZRR70 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-28090 |
ZRR70 |
1 | ||
| 67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 90467-04034 |
ZRR70 |
6 | ||
| 67867G - RETAINER, DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
ZRR70 |
15 | ||
| 67868L - RETAINER, DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
ZRR70 |
15 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-28300 |
ZRR70 *UVCT,T=3.5,GREEN |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-28300 |
ZRR70 *UVCT,T=3.5,GREEN |
1 | ||
| 68141E - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-28150 |
ZRR70 |
1 | ||
| 68141-28130 |
ZRR70 |
1 | ||
| 68151E - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-28100 |
ZRR70 |
1 | ||
| 68151-28120 |
ZRR70 |
1 | ||
| 68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH | ||||
| 68161-28070 |
ZRR70 |
1 | ||
| 68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH | ||||
| 68162-28070 |
ZRR70 |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-28060 |
ZRR70 |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68610-28060 |
ZRR70 |
1 | ||
| 75921C - TAPE, BLACK OUT, NO.1 RH | ||||
| 75935-28040 |
ZRR70 |
1 | ||
| 75922M - TAPE, BLACK OUT, NO.1 LH | ||||
| 75936-28040 |
ZRR70 |
1 | ||
| 75955B - TAPE, BLACK OUT FRONT DOOR, OUTER UPPER RH | ||||
| 75955-28040 |
ZRR70 |
1 | ||
| 75956B - TAPE, BLACK OUT FRONT DOOR, OUTER UPPER LH | ||||
| 75956-28040 |
ZRR70 |
1 | ||
| 75957C - TAPE, BLACK OUT FRONT DOOR, OUTER REAR RH | ||||
| 75957-28040 |
ZRR70 |
1 | ||
| 75958B - TAPE, BLACK OUT FRONT DOOR, OUTER REAR LH | ||||
| 75958-28040 |
ZRR70 |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90119-06306 | ||||
| 90467-05162C0 | ||||
| 90950-01527 | ||||
| 90950-01620 | ||||
| 91673-80616 | ||||
