ZRR70R-ARXEK (2008)

Toyota Noah

Production Aug 2008 - Apr 2010
Engine 3ZRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0808- )

Click highlighted areas on diagram

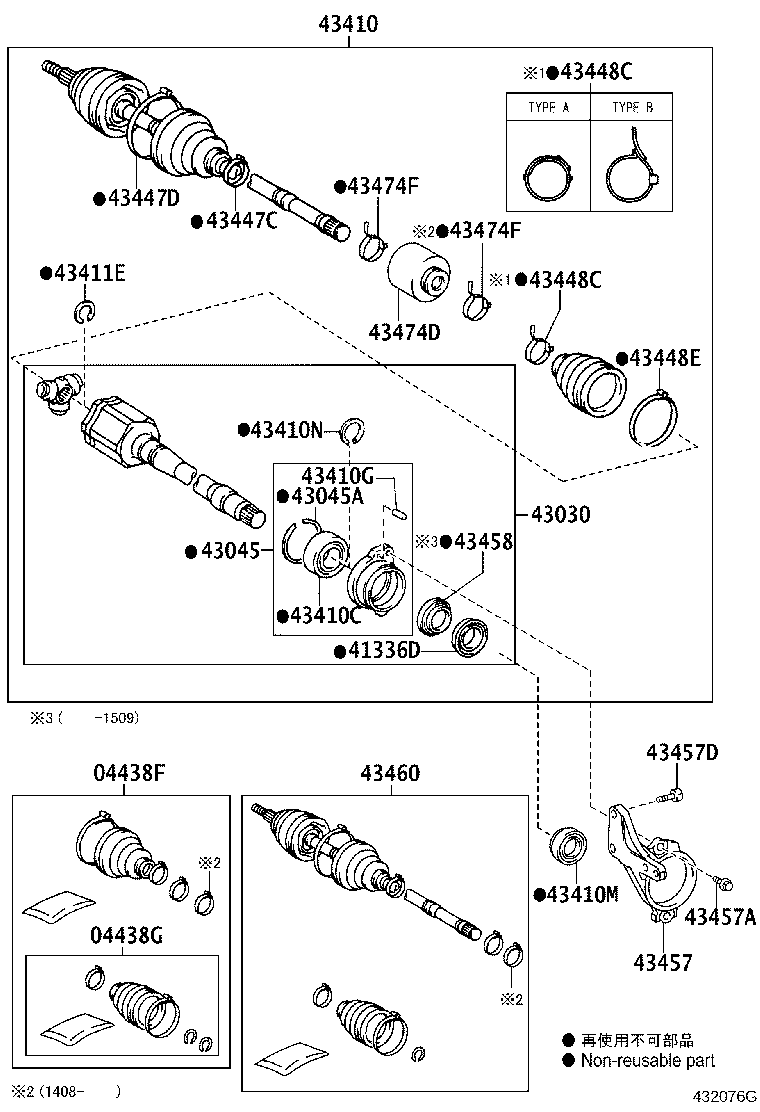

RH

diagram 04438F 04438G 41336D 43030 43045 43045A 43410 43410C 43410G 43410M 43410N 43411E 43447C 43447D 43448C 43448C 43448E 43457 43457A 43457D 43458 43460 43474D 43474F 43474F
Part # Description Qty Price
04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04427-28190

ZRR70

 1
04428-58030

ZRR70

 1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04438-58020

ZRR70

 1
41336D - COVER, FRONT DRIVE SHAFT DUST, RH
41336-12020

ZRR70

 1
43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH
43030-28011

ZRR70

 1
43045 - CASE SUB ASSY, DRIVE SHAFT BEARING
43045-64020

ZRR70

 1
43045A - RING, SNAP (FOR CASE SUB ASSY, DRIVE SHAFT BEARING)
90520-69002

ZRR70

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-28130

ZRR70

 1
43410C - BEARING (FOR FRONT DRIVE SHAFT)
90363-41003

ZRR70

 1
43410G - PIN, STRAIGHT (FOR FRONT DRIVE SHAFT)
90250-06003

ZRR70

 1
43410M - OIL SEAL, FRONT DRIVE SHAFT, RH
90311-40026

ZRR70

 1
43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
90520-38015

ZRR70

 1
43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
43425-28010

ZRR70

 1
43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-20040

ZRR70

 1
42345-42100

ZRR70

 1
43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-28020

ZRR70

 1
42345-42090

ZRR70

 1
43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
90949-01559

ZRR70

TYPE B:REFER ILLUST.

 1
42345-42010

ZRR70

TYPE A:REFER ILLUST.

 1
43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
90949-01559

ZRR70

TYPE B:REFER ILLUST.

 1
42345-42010

ZRR70

TYPE A:REFER ILLUST.

 1
43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-12160

ZRR70

 1
43457 - BRACKET, DRIVE SHAFT BEARING
43457-28060

ZRR70

 1
43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
90105-10361

ZRR70

*10-1.25PX22-19.5

 2
43457D - BOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
90105-10381

ZRR70

 3
43458 - COVER, FRONT DRIVE SHAFT DUST
43458-12010

ZRR70

 1
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43470-80178

ZRR70

 1
43474D - DAMPER, FRONT DRIVE SHAFT, RH
43474-44010

ZRR70

 1
43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
42345-14010

ZRR70

 1
43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
42345-14010

ZRR70

 1

(0808- )

Click highlighted areas on diagram

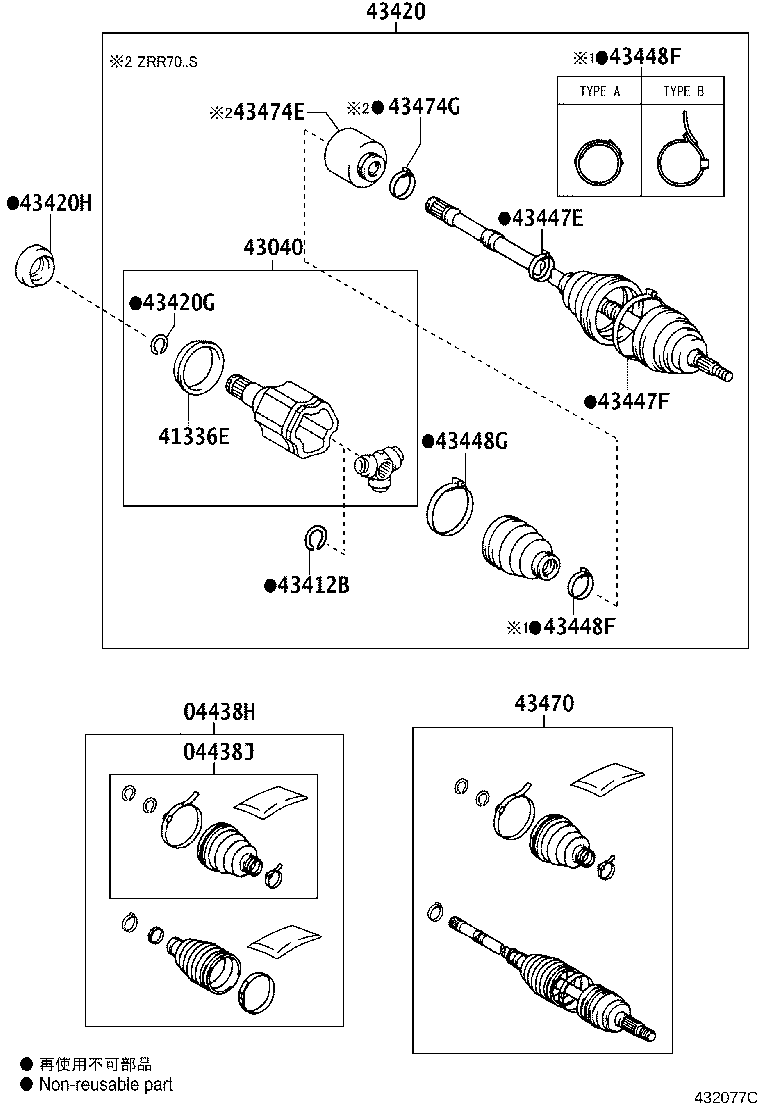

LH

diagram 04438H 04438J 41336E 43040 43412B 43420 43420G 43420H 43447E 43447F 43448F 43448F 43448G 43470 43474E 43474G
Part # Description Qty Price
04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04428-58030

ZRR70

 1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04438-42180

ZRR70

 1
41336E - COVER, FRONT DRIVE SHAFT DUST, LH
41336-28020

ZRR70

 1
43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH
43040-28011

ZRR70

 1
43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
43425-28010

ZRR70

 1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-44120

ZRR70

 1
43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)
90521-33002

ZRR70

 1
43420H - OIL SEAL, FRONT DRIVE SHAFT, LH
90311-50026

ZRR70

 1
43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-20040

ZRR70

 1
42345-42100

ZRR70

 1
43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-28020

ZRR70

 1
42345-42090

ZRR70

 1
43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
90949-01559

ZRR70

TYPE B:REFER ILLUST.

 1
42345-42010

ZRR70

TYPE A:REFER ILLUST.

 1
43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
90949-01559

ZRR70

TYPE B:REFER ILLUST.

 1
42345-42010

ZRR70

TYPE A:REFER ILLUST.

 1
43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-12160

ZRR70

 1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-80167

ZRR70

 1
