ZRR70R-APXSP (2010)

Toyota Noah

Production Apr 2010 - Jan 2014
Engine 3ZRFAE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1004- )

Click highlighted areas on diagram

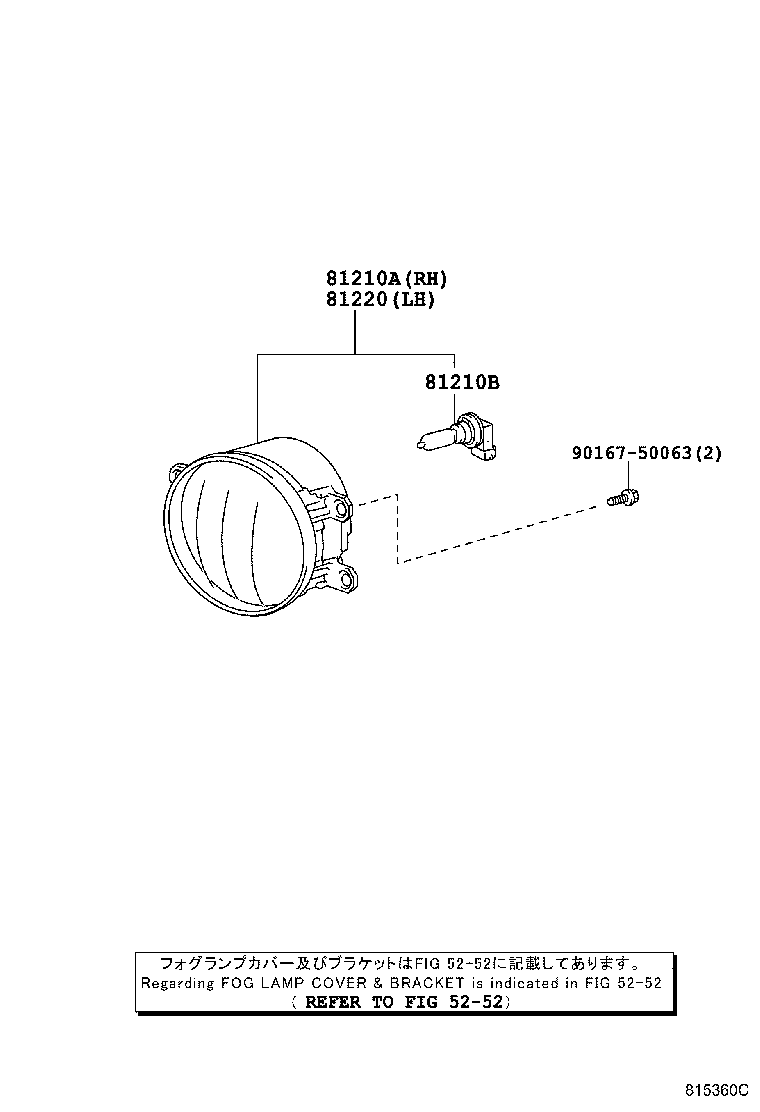

diagram 5252 81210A 81210B 81220 9016750063
Part # Description Qty Price
81210A - LAMP ASSY, FOG, RH
81210-0W050

ZRR70..GEN

 1
81210B - BULB, FOG LAMP
90981-13081

ZRR70..GEN

12V 55W,HALOGEN,OSRAM

 2
90981-13047

ZRR70

12V 51W,HALOGEN

 2
90981-13075

ZRR70..GEN

12V 55W,HALOGEN,PHILIPS

 2
81220 - LAMP ASSY, FOG, LH
81220-0W040

ZRR70..GEN

 1
Common parts
90167-50063
Linked diagrams
5252
