ZRR80R-ARXEP (2014)
Toyota Noah/Voxy
Production
Jan 2014
-
Jun 2017
Engine
3ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1401- )

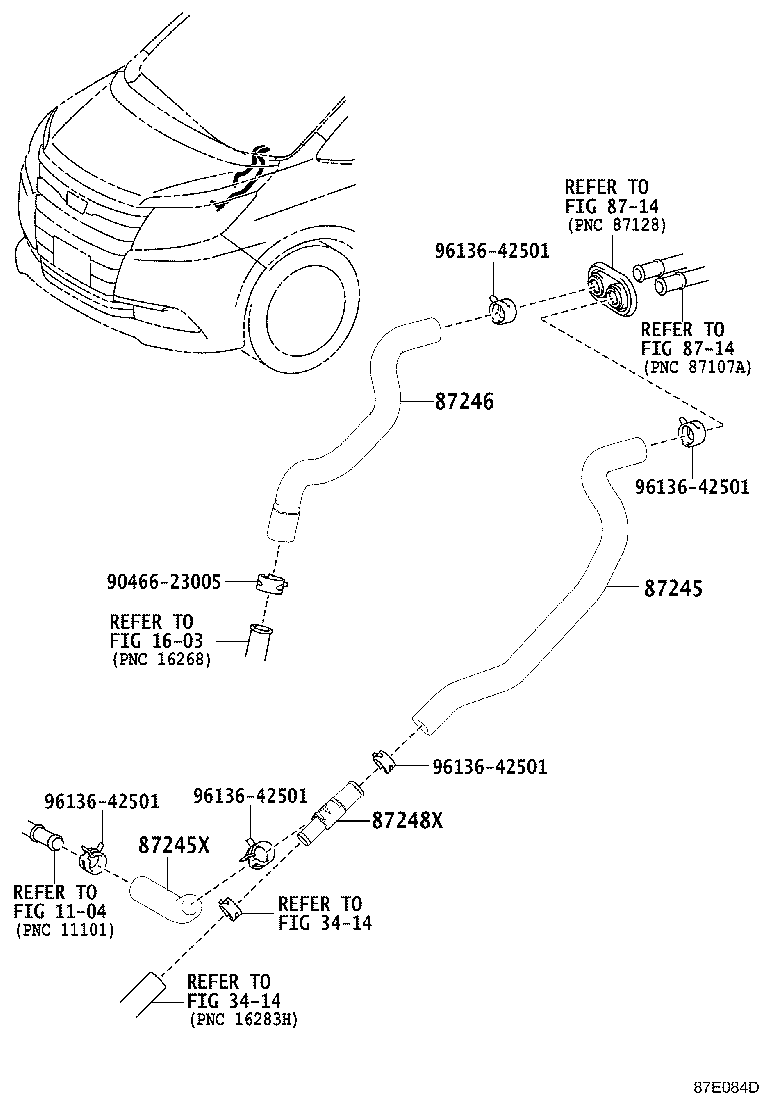

Click highlighted areas on diagram
FRONT,W/O(REAR HEATER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245 - HOSE, HEATER WATER, INLET | ||||
| 87245-28A30 |
ZRR80 |
1 | ||
| 87245X - HOSE, HEATER WATER | ||||
| 87245-28D00 |
ZRR80 |
1 | ||
| 87246 - HOSE, HEATER WATER, OUTLET | ||||
| 87245-28C70 |
ZRR80 |
1 | ||
| 87248X - PIPE, HEATER WATER | ||||
| 87248-33030 |
ZRR80 |
1 | ||
| Common parts | ||||
| 90466-23005 | ||||
| 96136-42501 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1603 | ||||
| 3414 | ||||
| 8714 | ||||
