ZRR80R-ARXEP (2014)
Toyota Noah/Voxy
Production
Jan 2014
-
Jun 2017
Engine
3ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1401- )

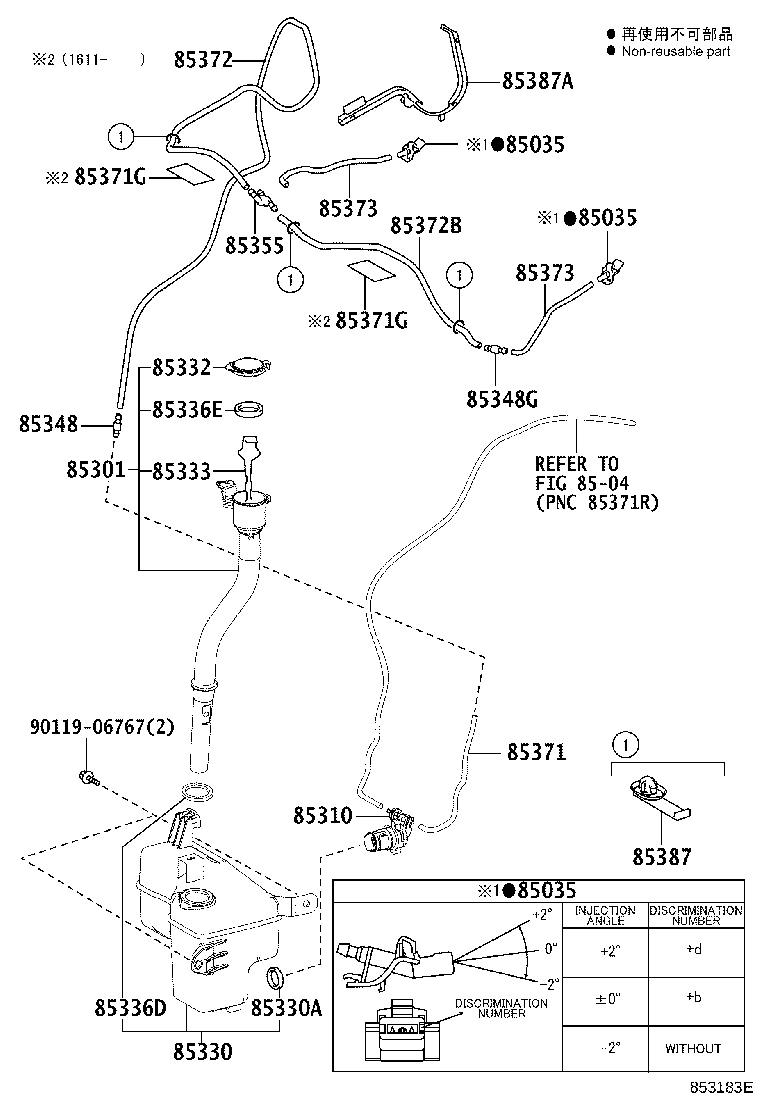

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-30230 |
ZRR80 ANGLE -2 |
2 | ||
| 85381-30240 |
ZRR80 ANGLE +2 |
2 | ||
| 85381-30220 |
ZRR80 ANGLE 0 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-30230 |
ZRR80 ANGLE -2 |
2 | ||
| 85381-30240 |
ZRR80 ANGLE +2 |
2 | ||
| 85381-30220 |
ZRR80 ANGLE 0 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-30230 |
ZRR80 ANGLE -2 |
2 | ||
| 85381-30240 |
ZRR80 ANGLE +2 |
2 | ||
| 85381-30220 |
ZRR80 ANGLE 0 |
2 | ||
| 85301 - INLET SUB-ASSY, WASHER | ||||
| 85301-28110 |
ZRR80 |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-12350 |
ZRR80 |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-28340 |
ZRR80 |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 85336-60300 |
ZRR80 |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-16070 |
ZRR80 |
1 | ||
| 85333 - FILTER, WINDSHIELD WASHER JAR | ||||
| 85312-47020 |
ZRR80 |
1 | ||
| 85336D - PACKING, WINDSHIELD WASHER JAR | ||||
| 85336-30160 |
ZRR80 |
1 | ||
| 85336E - PACKING, WINDSHIELD WASHER INLET HOSE | ||||
| 85336-42320 |
ZRR80 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
ZRR80 |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85349-89122 |
ZRR80 |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85321-28020 |
ZRR80 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33080 |
ZRR80 *H,L=325 |
1 | ||
| 85371G - PROTECTOR, FRONT WASHER | ||||
| 85389-28A60 |
ZRR80 |
2 | ||
| 85371G - PROTECTOR, FRONT WASHER | ||||
| 85389-28A60 |
ZRR80 |
2 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33803 |
ZRR80 *H,L=1510 |
1 | ||
| 90099-33803 |
ZRR80 *H,L=1490 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-33080 |
ZRR80 *H,L=580 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
ZRR80 *H,L=220 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
ZRR80 *H,L=220 |
2 | ||
| 85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER) | ||||
| 82711-52090 |
ZRR80 |
3 | ||
| 85387A - CLAMP, WASHER, NO.2 | ||||
| 85387-28A60 |
ZRR80 |
1 | ||
| Common parts | ||||
| 90119-06767 | ||||
| Linked diagrams | ||||
| 8504 | ||||
