ZRR80R-ARXEP (2014)

Toyota Noah/Voxy

Production Jan 2014 - Jun 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1401- )

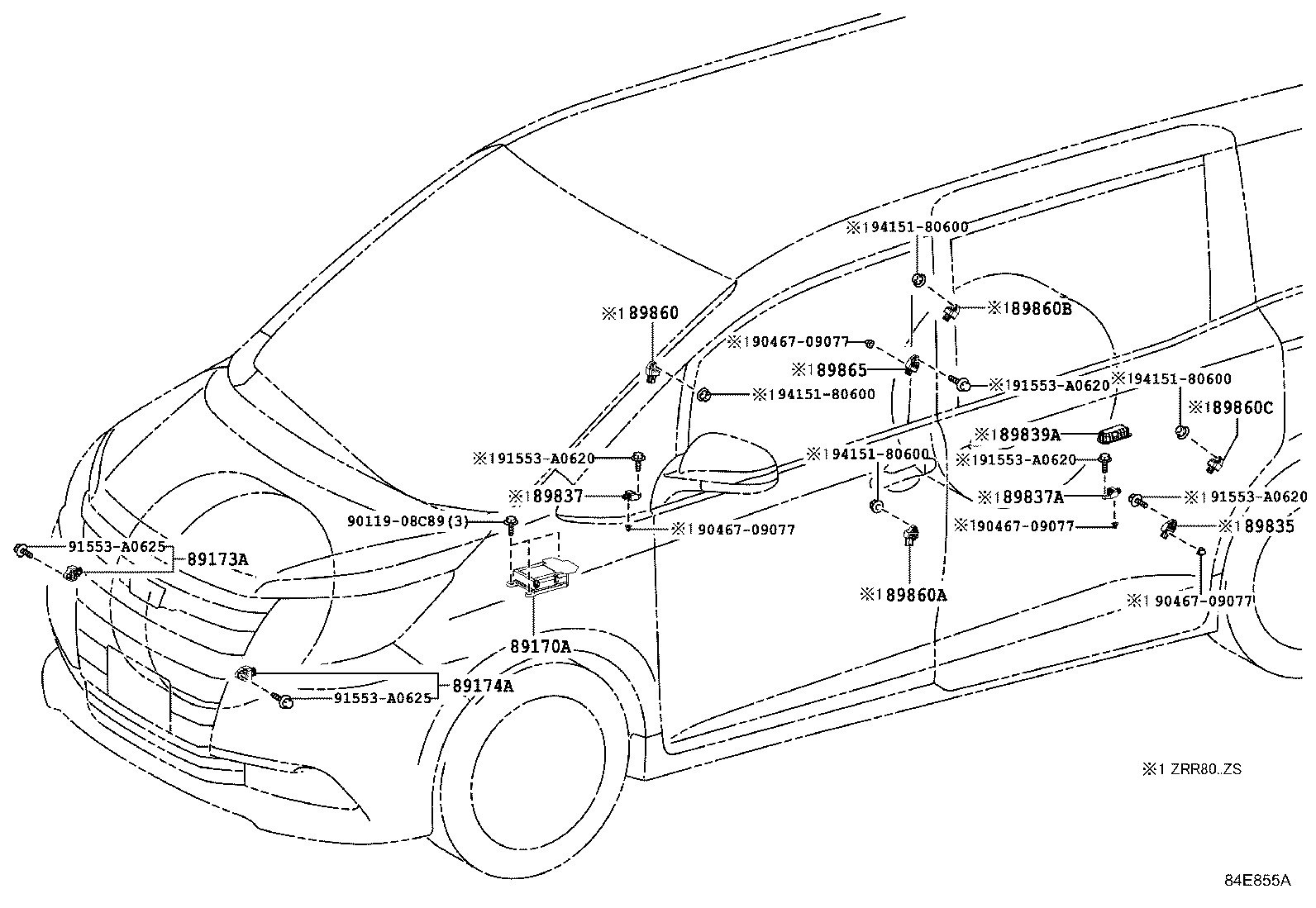

Click highlighted areas on diagram

diagram 89170A 89173A 89174A 89835 89837 89837A 89839A 89860 89860A 89860B 89860C 89865 9011908C89 9046709077 9046709077 9046709077 9046709077 91553A0620 91553A0620 91553A0620 91553A0620 91553A0625 91553A0625 9415180600 9415180600 9415180600 9415180600
Part # Description Qty Price
89170A - COMPUTER ASSY, AIR BAG
89170-28330

ZRR80

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-29265

ZRR80

 1
89174A - SENSOR, AIR BAG, FRONT LH
89173-29265

ZRR80

 1
Common parts
90119-08C89
90467-09077
91553-A0620
91553-A0625
94151-80600
