ZRR80R-ARXEP (2014)

Toyota Noah/Voxy

Production Jan 2014 - Jun 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

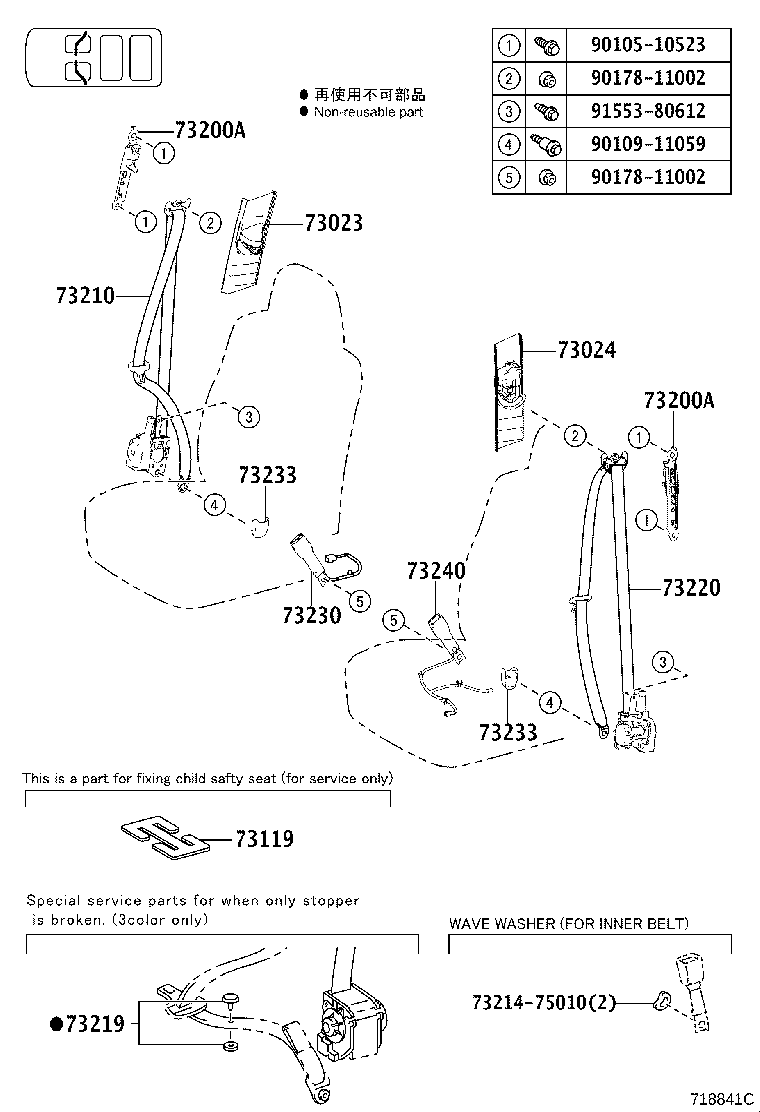

ILLUST NO. 1 OF 4(1401- )

Click highlighted areas on diagram

FRONT SEAT

diagram 73023 73024 73119 73200A 73200A 73210 7321475010 73219 73220 73230 73233 73233 73240 9010510523 9010911059 9017811002 9017811002 9155380612
Part # Description Qty Price
73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
73023-33030B1

ZRR80..X

LT.GRAY,TRIM0#,2#

 1
73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
73024-33030B1

ZRR80..X

LT.GRAY,TRIM0#,2#

 1
73119 - PLATE, SEAT BELT WEBBING CLIP
73119-22010

ZRR80

 1
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-53010

ZRR80

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-53010

ZRR80

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-28850B0

ZRR80..X

LT.GRAY,TRIM0#

 1
73219 - STOPPER, TONGUE PLATE
73219-33010

ZRR80

BLACK

 1
73219-33020

ZRR80

GRAY

 1
73219-33030

ZRR80

BEIGE

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-28840B0

ZRR80..X

LT.GRAY,TRIM0#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-28651C0

ZRR80..X

BLACK,TRIM0#

 1
73230-28652C0

ZRR80..X

BLACK,TRIM0#

 1
73233 - COVER, LAP BELT OUTER ANCHOR
73233-60020C1

ZRR80..X

BLACK,TRIM0#

 2
73233-60020C0

ZRR80..X

BLACK,TRIM0#,2#

 2
73233 - COVER, LAP BELT OUTER ANCHOR
73233-60020C1

ZRR80..X

BLACK,TRIM0#

 2
73233-60020C0

ZRR80..X

BLACK,TRIM0#,2#

 2
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-28210C0

ZRR80..X

BLACK,TRIM0#,2#

 1
73240-28211C0

ZRR80..X

BLACK,TRIM0#

 1
Common parts
73214-75010
90105-10523
90109-11059
90178-11002
91553-80612

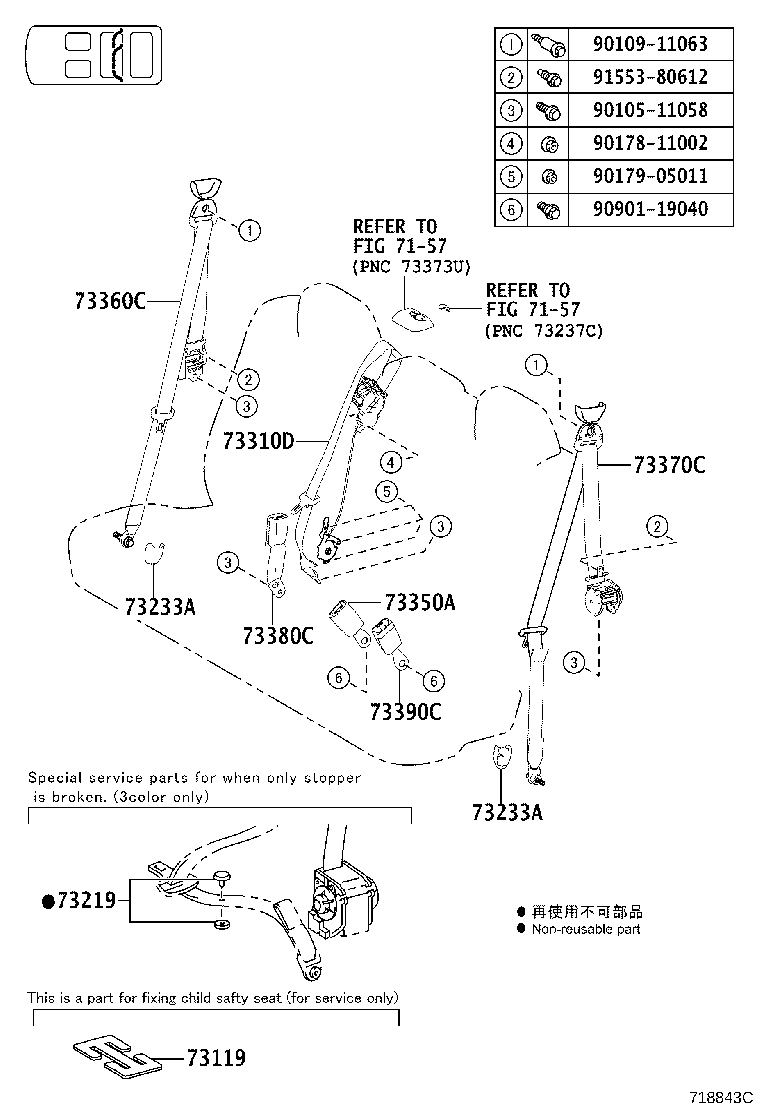

ILLUST NO. 3 OF 4(1401- )X

Click highlighted areas on diagram

REAR NO.1 SEAT

diagram 7157 7157 73119 73219 73233A 73233A 73310D 73350A 73360C 73370C 73380C 73390C 9010511058 9010911063 9017811002 9017905011 9090119040 9155380612
Part # Description Qty Price
73119 - PLATE, SEAT BELT WEBBING CLIP
73119-22010

ZRR80

 1
73219 - STOPPER, TONGUE PLATE
73219-33010

ZRR80

BLACK

 1
73219-33020

ZRR80

GRAY

 1
73219-33030

ZRR80

BEIGE

 1
73233A - COVER, LAP BELT OUTER ANCHOR, REAR NO.1 SEAT
73233-60020C1

ZRR80..X

BLACK,TRIM0#

 2
73233-60020C0

ZRR80..X

BLACK,TRIM0#,2#

 2
73233A - COVER, LAP BELT OUTER ANCHOR, REAR NO.1 SEAT
73233-60020C1

ZRR80..X

BLACK,TRIM0#

 2
73233-60020C0

ZRR80..X

BLACK,TRIM0#,2#

 2
73310D - BELT ASSY, REAR SEAT 3 POINT TYPE, CENTER
73310-28290C0

ZRR80..X

BLACK,TRIM0#,2#

 1
73350A - BELT ASSY, REAR NO.1 SEAT LAP TYPE, CENTER
73350-28310C0

ZRR80..X

BLACK,TRIM0#,2#

 1
73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH
73360-28730B0

ZRR80..X

LT.GRAY,TRIM0#,2#

 1
73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH
73370-28670B0

ZRR80..X

LT.GRAY,TRIM0#,2#

 1
73380C - BELT ASSY, REAR NO.1 SEAT, INNER RH
73380-28540C1

ZRR80..X

BLACK,TRIM0#

 1
73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH
73390-28370C0

ZRR80..X

BLACK,TRIM0#,2#

 1
Common parts
90105-11058
90109-11063
90178-11002
90179-05011
90901-19040
91553-80612
Linked diagrams
7157

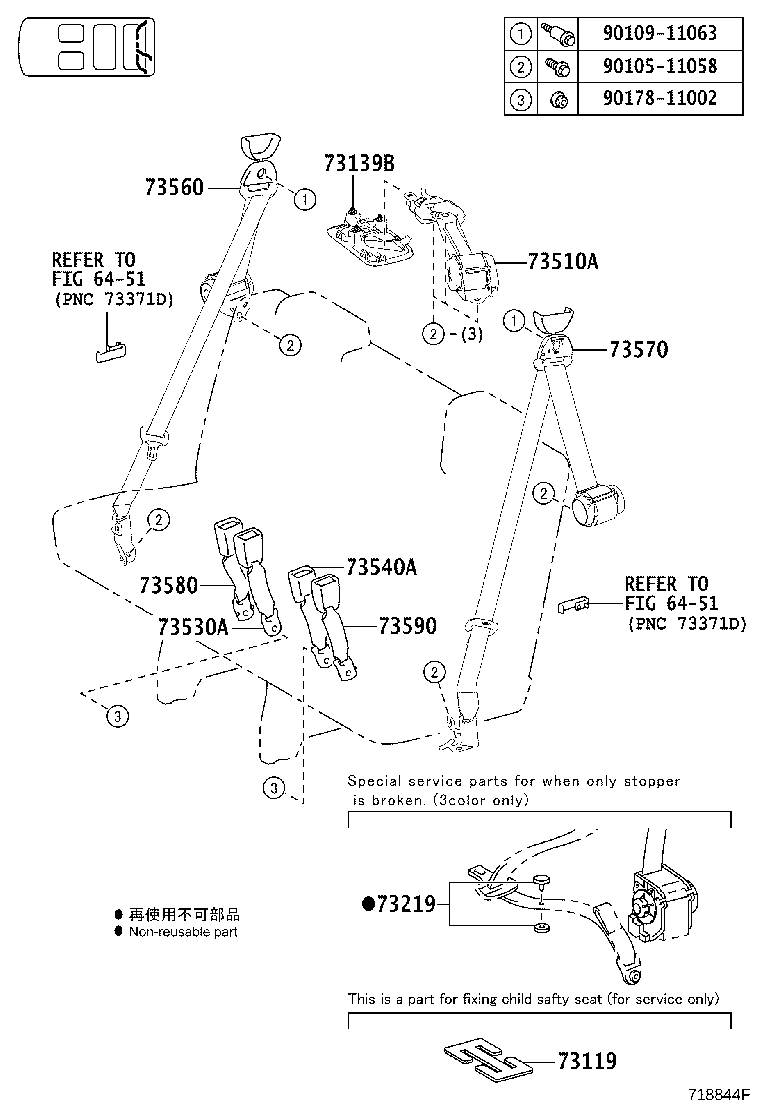

ILLUST NO. 4 OF 4(1401- )

Click highlighted areas on diagram

REAR NO.2 SEAT

diagram 6451 6451 73119 73139B 73219 73510A 73530A 73540A 73560 73570 73580 73590 9010511058 9010911063 9017811002
Part # Description Qty Price
73119 - PLATE, SEAT BELT WEBBING CLIP
73119-22010

ZRR80

 1
73139B - COVER, SEAT BELT ANCHOR
73139-28060B0

ZRR80..X

LT.GRAY,TRIM0#,2#

 1
73219 - STOPPER, TONGUE PLATE
73219-33010

ZRR80

BLACK

 1
73219-33020

ZRR80

GRAY

 1
73219-33030

ZRR80

BEIGE

 1
73510A - BELT ASSY, REAR NO.2 SEAT, 3 POINT TYPE
73510-28170C1

ZRR80..X

BLACK/LT.GRAY,TRIM0#

 1
73530A - BELT ASSY, REAR NO.2 SEAT LAP TYPE, RH
73530-28130C1

ZRR80..X

BLACK,TRIM0#,2#

 1
73540A - BELT ASSY, REAR NO.2 SEAT LAP TYPE, LH
73540-28130C1

ZRR80..X

BLACK,TRIM0#,2#

 1
73560 - BELT ASSY, REAR NO.2 SEAT, OUTER RH
73560-28450B0

ZRR80..X

LT.GRAY,TRIM0#,2#

 1
73570 - BELT ASSY, REAR NO.2 SEAT, OUTER LH
73570-28510B0

ZRR80..X

LT.GRAY,TRIM0#,2#

 1
73580 - BELT ASSY, REAR NO.2 SEAT, INNER RH
73580-28240C1

ZRR80..X

BLACK,TRIM0#,2#

 1
73590 - BELT ASSY, REAR NO.2 SEAT, INNER LH
73580-28240C1

ZRR80..X

BLACK,TRIM0#,2#

 1
Common parts
90105-11058
90109-11063
90178-11002
Linked diagrams
6451
