ZRR80R-ARXEP (2014)

Toyota Noah/Voxy

Production Jan 2014 - Jun 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1401- )

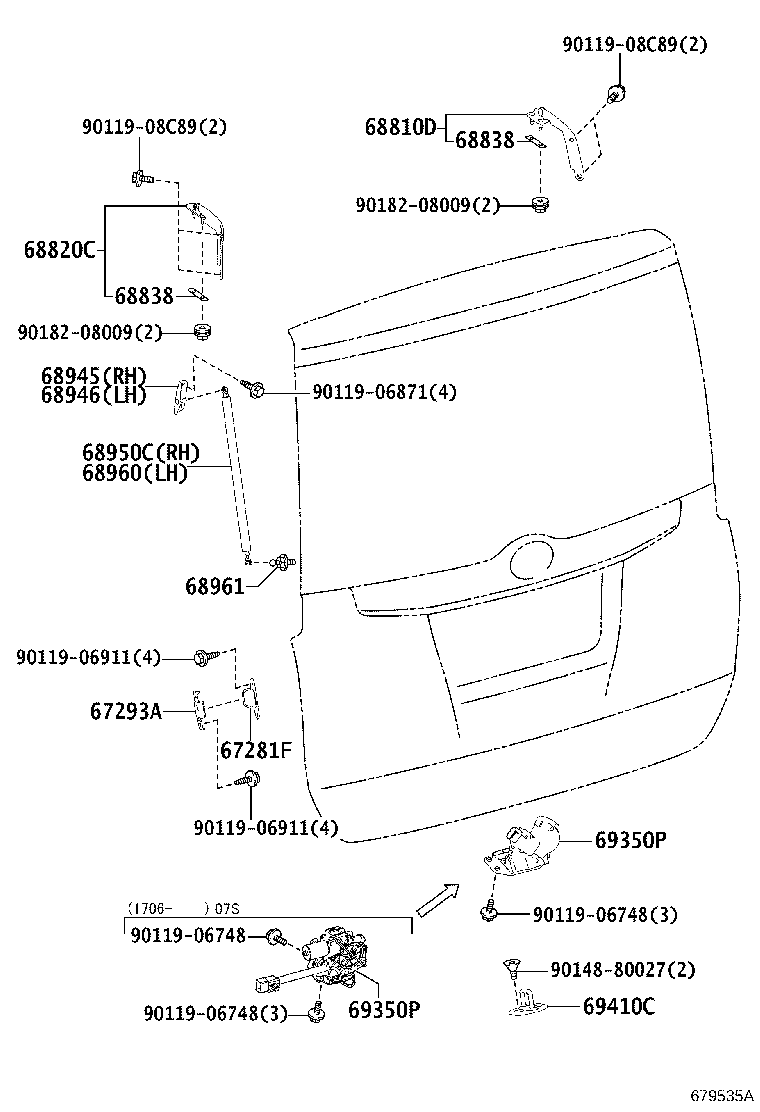

Click highlighted areas on diagram

diagram 67281F 67293A 68810D 68820C 68838 68838 68945 68946 68950C 68960 68961 69350P 69350P 69410C 9011906748 9011906748 9011906748 9011906871 9011906911 9011906911 9011908C89 9011908C89 9014880027 9018208009 9018208009
Part # Description Qty Price
67281F - STOPPER, BACK DOOR, LOWER
67281-28020

ZRR80

 2
67293A - CUSHION, BACK DOOR STOPPER
67293-28040

ZRR80

 2
68810D - HINGE ASSY, BACK DOOR, RH
68810-28050

ZRR80

 1
68820C - HINGE ASSY, BACK DOOR, LH
68820-28040

ZRR80

 1
68838 - PAD, BACK DOOR HINGE, NO.1
68838-28020

ZRR80

T=1.0

 2
68838 - PAD, BACK DOOR HINGE, NO.1
68838-28020

ZRR80

T=1.0

 2
68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68945-28030

ZRR80

 1
68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68946-28020

ZRR80

 1
68950C - STAY ASSY, BACK DOOR, RH
68950-0W600

ZRR80

 1
68960 - STAY ASSY, BACK DOOR, LH
68960-0W680

ZRR80

 1
68961 - BOLT, BACK DOOR STAY
68961-20140

ZRR80

 2
69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69350-28170

ZRR80

 1
69350-58040

ZRR80

 1
69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69350-28170

ZRR80

 1
69350-58040

ZRR80

 1
69410C - PLATE ASSY, BACK DOOR LOCK STRIKER
69410-60030

ZRR80

 1
Common parts
90119-06748
90119-06871
90119-06911
90119-08C89
90148-80027
90182-08009
