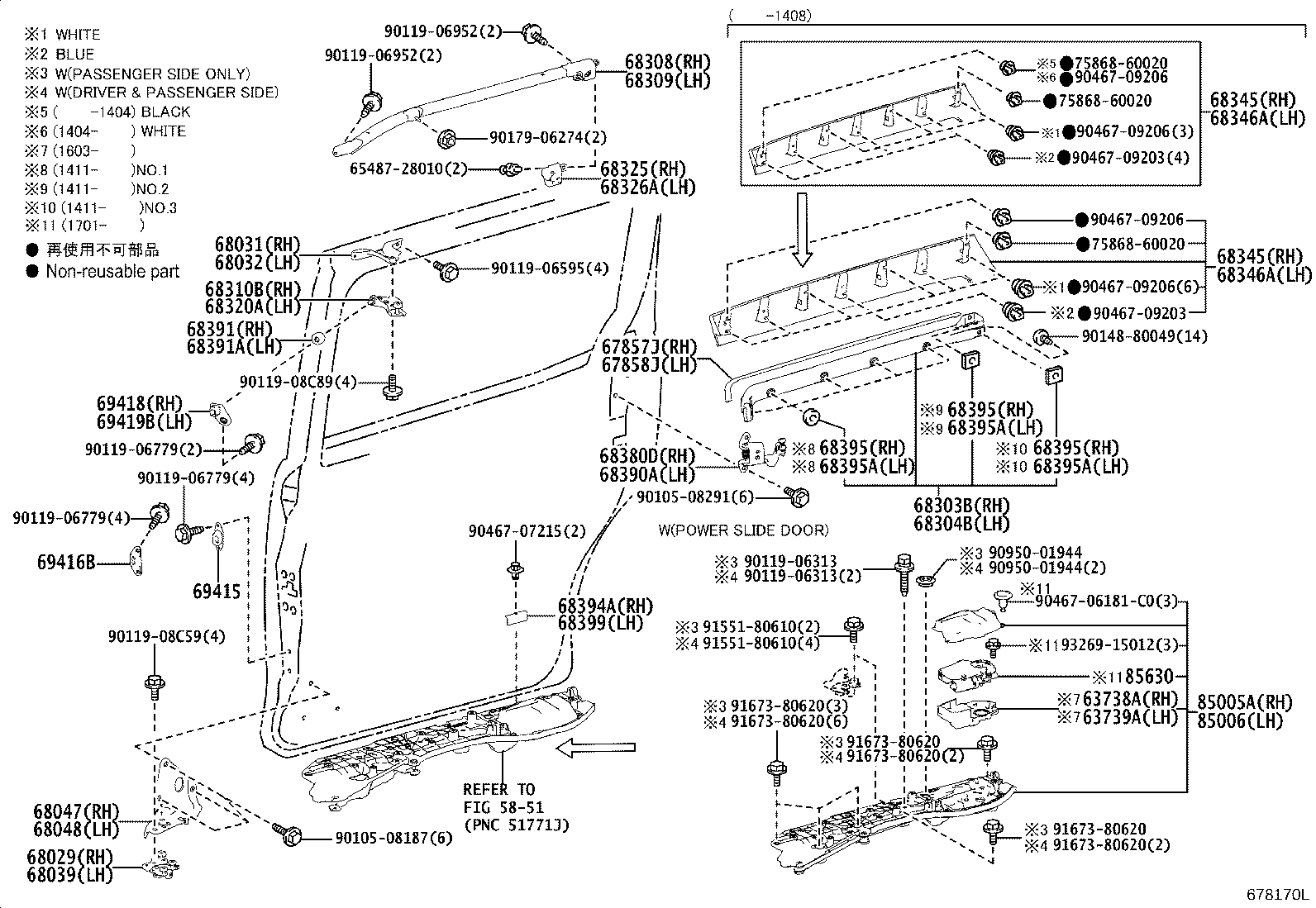

ZRR80R-ARXEP (2014)
Toyota Noah/Voxy
(1401- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63739A - COVER, MOULDING, LH | ||||
| 63739-28020 |
ZRR80 |
1 | ||
| 67857J - PROTECTOR, SLIDE DOOR RAIL, RH | ||||
| 67857-28030 |
ZRR80 |
1 | ||
| 67857-28031 |
ZRR80 |
1 | ||
| 67857-28032 |
ZRR80 |
1 | ||
| 67858J - PROTECTOR, SLIDE DOOR RAIL, LH | ||||
| 67858-28030 |
ZRR80 |
1 | ||
| 67858-28032 |
ZRR80 |
1 | ||
| 67858-28031 |
ZRR80 |
1 | ||
| 68029 - BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER | ||||
| 68029-28090 |
ZRR80 |
1 | ||
| 68031 - ARM SUB-ASSY, SLIDE DOOR UPPER ROLLER, RH | ||||
| 68381-28040 |
ZRR80 |
1 | ||
| 68032 - ARM SUB-ASSY, SLIDE DOOR UPPER ROLLER, LH | ||||
| 68382-28040 |
ZRR80 |
1 | ||
| 68039 - BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER, LH | ||||
| 68039-28100 |
ZRR80 |
1 | ||
| 68047 - ARM SUB-ASSY, SLIDE DOOR LOWER ROLLER, RH | ||||
| 68335-28070 |
ZRR80 |
1 | ||
| 68048 - ARM SUB-ASSY, SLIDE DOOR LOWER ROLLER, LH | ||||
| 68336-28090 |
ZRR80 |
1 | ||
| 68303B - RAIL SUB-ASSY, SLIDE DOOR, CENTER RH | ||||
| 68303-28110 |
ZRR80 |
1 | ||
| 68303-28111 |
ZRR80 |
1 | ||
| 68304B - RAIL SUB-ASSY, SLIDE DOOR, CENTER LH | ||||
| 68304-28140 |
ZRR80 |
1 | ||
| 68304-28141 |
ZRR80 |
1 | ||
| 68308 - RAIL SUB-ASSY, SLIDE DOOR, UPPER RH | ||||
| 68308-28070 |
ZRR80 |
1 | ||
| 68309 - RAIL SUB-ASSY, SLIDE DOOR, UPPER LH | ||||
| 68309-28070 |
ZRR80 |
1 | ||
| 68310B - ROLLER ASSY, SLIDE DOOR, UPPER RH | ||||
| 68301-28061 |
ZRR80 |
1 | ||
| 68301-28060 |
ZRR80 |
1 | ||
| 68320A - ROLLER ASSY, SLIDE DOOR, UPPER, LH | ||||
| 68302-28051 |
ZRR80 |
1 | ||
| 68302-28050 |
ZRR80 |
1 | ||
| 68325 - CUSHION, SLIDE DOOR UPPER RAIL, RH | ||||
| 68325-28050 |
ZRR80 |
1 | ||
| 68326A - CUSHION, SLIDE DOOR UPPER RAIL, LH | ||||
| 68326-28050 |
ZRR80 |
1 | ||
| 68345 - COVER, SLIDE DOOR CENTER RAIL | ||||
| 60835-28040C0 |
ZRR80 BLACK,202 |
1 | ||
| 60835-28040A0 |
ZRR80 WHITE PEARL CS.,070 |
1 | ||
| 60835-28040B0 |
ZRR80 SILVER ME.,1F7 |
1 | ||
| 60835-28040D0 |
ZRR80 DEEP RED M.M.,3R9 |
1 | ||
| 60835-28040E0 |
ZRR80..X ROSE CHAMPAGNE M.M.,4W4 |
1 | ||
| 60835-28040H0 |
ZRR80 OCEAN MINT ME.,789 |
1 | ||
| 68345 - COVER, SLIDE DOOR CENTER RAIL | ||||
| 60835-28040C0 |
ZRR80 BLACK,202 |
1 | ||
| 60835-28040A0 |
ZRR80 WHITE PEARL CS.,070 |
1 | ||
| 60835-28040B0 |
ZRR80 SILVER ME.,1F7 |
1 | ||
| 60835-28040D0 |
ZRR80 DEEP RED M.M.,3R9 |
1 | ||
| 60835-28040E0 |
ZRR80..X ROSE CHAMPAGNE M.M.,4W4 |
1 | ||
| 60835-28040H0 |
ZRR80 OCEAN MINT ME.,789 |
1 | ||
| 68346A - COVER, SLIDE DOOR CENTER RAIL, LH | ||||
| 60836-28040C0 |
ZRR80 BLACK,202 |
1 | ||
| 60836-28040A0 |
ZRR80 WHITE PEARL CS.,070 |
1 | ||
| 60836-28040D0 |
ZRR80 DEEP RED M.M.,3R9 |
1 | ||
| 60836-28040B0 |
ZRR80 SILVER ME.,1F7 |
1 | ||
| 60836-28040H0 |
ZRR80 OCEAN MINT ME.,789 |
1 | ||
| 60836-28040E0 |
ZRR80..X ROSE CHAMPAGNE M.M.,4W4 |
1 | ||
| 68346A - COVER, SLIDE DOOR CENTER RAIL, LH | ||||
| 60836-28040C0 |
ZRR80 BLACK,202 |
1 | ||
| 60836-28040A0 |
ZRR80 WHITE PEARL CS.,070 |
1 | ||
| 60836-28040D0 |
ZRR80 DEEP RED M.M.,3R9 |
1 | ||
| 60836-28040B0 |
ZRR80 SILVER ME.,1F7 |
1 | ||
| 60836-28040H0 |
ZRR80 OCEAN MINT ME.,789 |
1 | ||
| 60836-28040E0 |
ZRR80..X ROSE CHAMPAGNE M.M.,4W4 |
1 | ||
| 68380D - HINGE ASSY, SLIDE DOOR, CENTER RH | ||||
| 68380-28121 |
ZRR80 |
1 | ||
| 68380-28122 |
ZRR80 |
1 | ||
| 68380-28120 |
ZRR80 |
1 | ||
| 68390A - HINGE ASSY, SLIDE DOOR, CENTER LH | ||||
| 68390-28141 |
ZRR80 |
1 | ||
| 68390-28140 |
ZRR80 |
1 | ||
| 68390-28142 |
ZRR80 |
1 | ||
| 68391 - CUSHION, SLIDE DOOR UPPER ROLLER, RH | ||||
| 68391-28040 |
ZRR80 |
1 | ||
| 68391A - CUSHION, SLIDE DOOR UPPER ROLLER, LH | ||||
| 68391-28040 |
ZRR80 |
1 | ||
| 68394A - PLATE, SLIDE DOOR LOWER RAIL, RH | ||||
| 68394-28040 |
ZRR80 |
1 | ||
| 68395 - PACKING, SLIDE DOOR CENTER RAIL | ||||
| 68395-28100 |
ZRR80 NO.1:REFER ILLUST. |
5 | ||
| 68395-28120 |
ZRR80 NO.3:REFER ILLUST. |
1 | ||
| 68395-28110 |
ZRR80 NO.2:REFER ILLUST. |
1 | ||
| 68395 - PACKING, SLIDE DOOR CENTER RAIL | ||||
| 68395-28100 |
ZRR80 NO.1:REFER ILLUST. |
5 | ||
| 68395-28120 |
ZRR80 NO.3:REFER ILLUST. |
1 | ||
| 68395-28110 |
ZRR80 NO.2:REFER ILLUST. |
1 | ||
| 68395 - PACKING, SLIDE DOOR CENTER RAIL | ||||
| 68395-28100 |
ZRR80 NO.1:REFER ILLUST. |
5 | ||
| 68395-28120 |
ZRR80 NO.3:REFER ILLUST. |
1 | ||
| 68395-28110 |
ZRR80 NO.2:REFER ILLUST. |
1 | ||
| 68395A - PACKING, SLIDE DOOR CENTER RAIL | ||||
| 68395-28120 |
ZRR80 NO.3:REFER ILLUST. |
1 | ||
| 68395-28100 |
ZRR80 NO.1:REFER ILLUST. |
5 | ||
| 68395-28110 |
ZRR80 NO.2:REFER ILLUST. |
1 | ||
| 68395A - PACKING, SLIDE DOOR CENTER RAIL | ||||
| 68395-28120 |
ZRR80 NO.3:REFER ILLUST. |
1 | ||
| 68395-28100 |
ZRR80 NO.1:REFER ILLUST. |
5 | ||
| 68395-28110 |
ZRR80 NO.2:REFER ILLUST. |
1 | ||
| 68395A - PACKING, SLIDE DOOR CENTER RAIL | ||||
| 68395-28120 |
ZRR80 NO.3:REFER ILLUST. |
1 | ||
| 68395-28100 |
ZRR80 NO.1:REFER ILLUST. |
5 | ||
| 68395-28110 |
ZRR80 NO.2:REFER ILLUST. |
1 | ||
| 68399 - PLATE, SLIDE DOOR LOWER RAIL, LH | ||||
| 68394-28040 |
ZRR80 |
1 | ||
| 69415 - STOPPER, SLIDE DOOR DOWN FEMALE | ||||
| 69415-28021 |
ZRR80 |
2 | ||
| 69416B - STOPPER, SLIDE DOOR DOWN MALE | ||||
| 69046-28020 |
ZRR80 |
2 | ||
| 69418 - STOP, SLIDE DOOR OPEN | ||||
| 69418-28120 |
ZRR80 |
1 | ||
| 69418-28121 |
ZRR80 |
1 | ||
| 69419B - STOP, SLIDE DOOR OPEN, LH | ||||
| 69419-28061 |
ZRR80 |
1 | ||
| 69419-28060 |
ZRR80 |
1 | ||
| 85006 - MOTOR UNIT, SLIDE DOOR, LH | ||||
| 85006-28174 |
ZRR80 |
1 | ||
| 85006-28173 |
ZRR80 |
1 | ||
| 85006-28176 |
ZRR80 |
1 | ||
| 85006-28171 |
ZRR80 |
1 | ||
| 85006-28170 |
ZRR80 |
1 | ||
| 85006-28177 |
ZRR80 |
1 | ||
| 85006-28172 |
ZRR80 |
1 | ||
| 85006-28175 |
ZRR80 |
1 | ||
| 85630 - MOTOR ASSY, SLIDE DOOR | ||||
| 85480-28010 |
ZRR80..X #, LH |
1 | ||
| Common parts | ||||
| 65487-28010 | ||||
| 75868-60020 | ||||
| 90105-08187 | ||||
| 90105-08291 | ||||
| 90119-06313 | ||||
| 90119-06595 | ||||
| 90119-06779 | ||||
| 90119-06952 | ||||
| 90119-08C59 | ||||
| 90119-08C89 | ||||
| 90148-80049 | ||||
| 90179-06274 | ||||
| 90467-06181C0 | ||||
| 90467-07215 | ||||
| 90467-09203 | ||||
| 90467-09206 | ||||
| 90950-01944 | ||||
| 91551-80610 | ||||
| 91673-80620 | ||||
| 93269-15012 | ||||
| Linked diagrams | ||||
| 5851 | ||||
