ZRR80R-ARXEP (2014)
Toyota Noah/Voxy
Production
Jan 2014
-
Jun 2017
Engine
3ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1401- )
Click highlighted areas on diagram

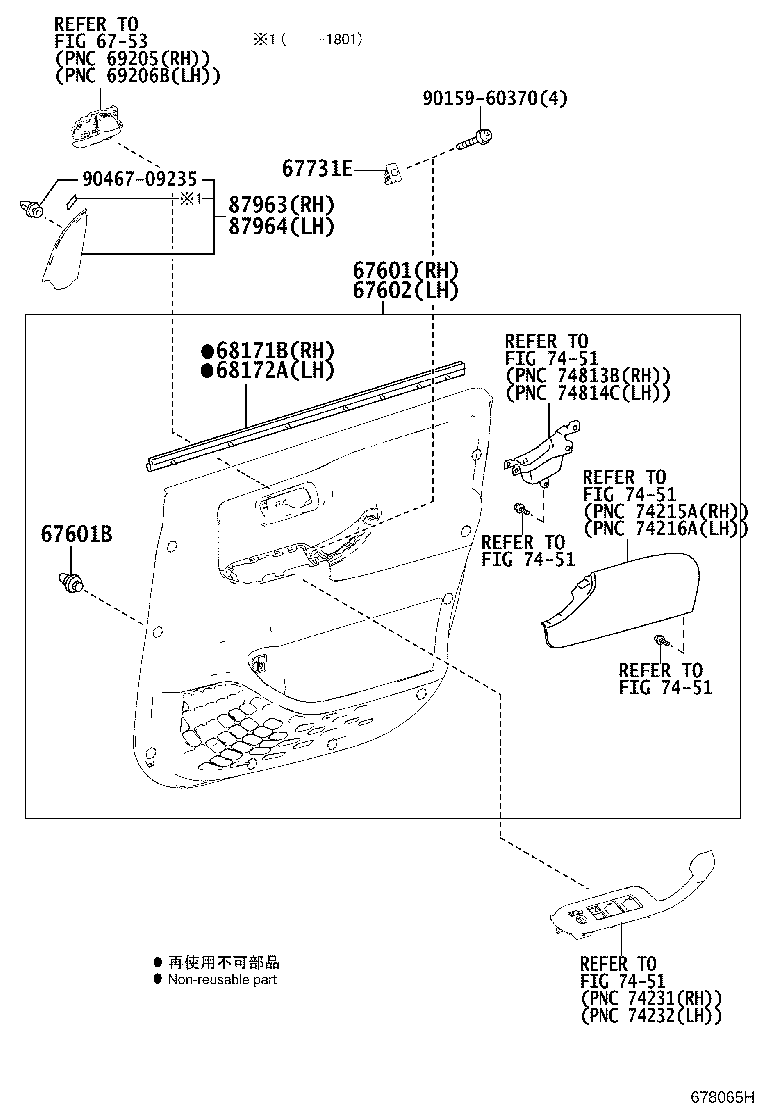

DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-28E81A7 |
ZRR80..X IVORY,TRIM0# |
1 | ||
| 67610-28E80A7 |
ZRR80..X IVORY,TRIM0# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
ZRR80 |
18 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-28E80A7 |
ZRR80..X IVORY,TRIM0# |
1 | ||
| 67620-28E81A7 |
ZRR80..X IVORY,TRIM0# |
1 | ||
| 67731E - SPACER, SIDE TRIM, NO.1 | ||||
| 67731-53030 |
ZRR80 |
4 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-28091 |
ZRR80 |
1 | ||
| 68171-28090 |
ZRR80 |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-28081 |
ZRR80 |
1 | ||
| 68172-28080 |
ZRR80 |
1 | ||
| 87963 - COVER, OUTER MIRROR INSTALL HOLE, RH | ||||
| 87963-28010 |
ZRR80 |
1 | ||
| 87964 - COVER, OUTER MIRROR INSTALL HOLE, LH | ||||
| 87964-28010 |
ZRR80 |
1 | ||
| Common parts | ||||
| 90159-60370 | ||||
| 90467-09235 | ||||
| Linked diagrams | ||||
| 6753 | ||||
| 7451 | ||||
(1401- )
Click highlighted areas on diagram

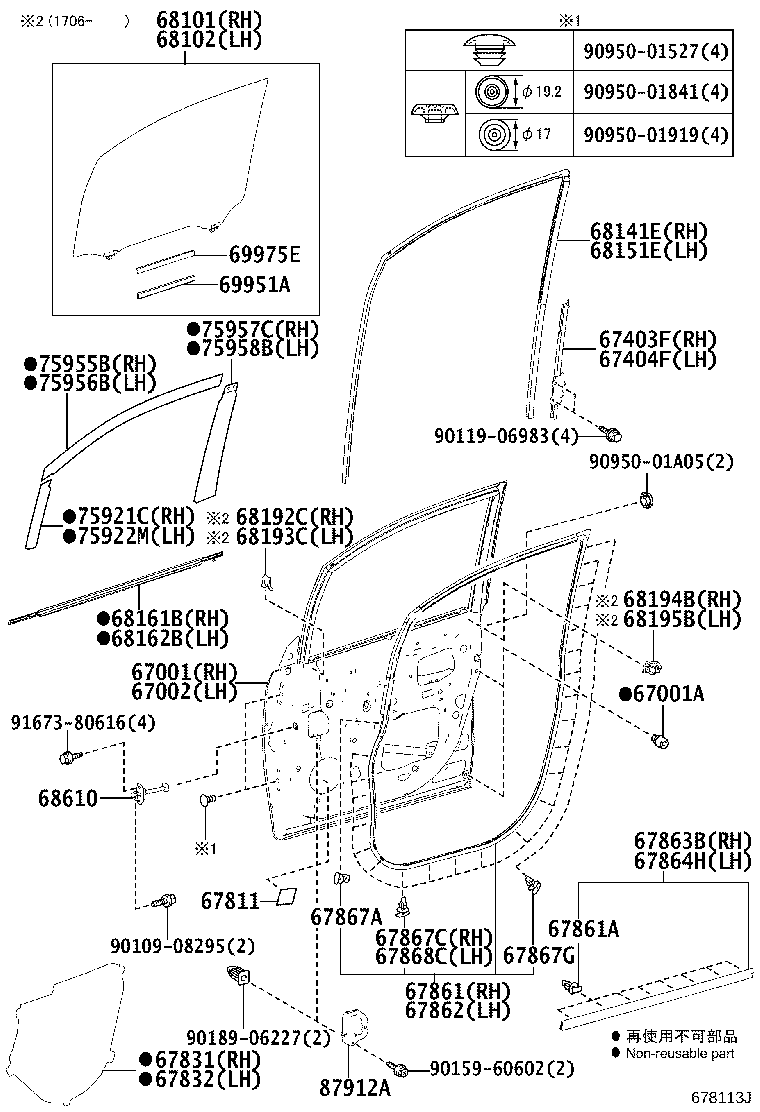

DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-28250 |
ZRR80..X |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09124 |
ZRR80 |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-28270 |
ZRR80..X |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-28120 |
ZRR80 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-28120 |
ZRR80 |
1 | ||
| 67811 - PAD, FRONT DOOR SILENCER | ||||
| 67811-12190 |
ZRR80 |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-28210 |
ZRR80 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-28140 |
ZRR80 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-28100 |
ZRR80 |
1 | ||
| 67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP) | ||||
| 67867-52030 |
ZRR80 |
16 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-28100 |
ZRR80 |
1 | ||
| 67863B - WEATHERSTRIP, FRONT DOOR, NO.2 RH | ||||
| 67863-28040 |
ZRR80 |
1 | ||
| 67864H - WEATHERSTRIP, FRONT DOOR, NO.2 LH | ||||
| 67863-28040 |
ZRR80 |
1 | ||
| 67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 90467-04034 |
ZRR80 |
2 | ||
| 90467-04034 |
ZRR80 |
4 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
ZRR80 |
22 | ||
| 67867G - RETAINER, DOOR WEATHERSTRIP, RH | ||||
| 67867-52040 |
ZRR80 |
2 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
ZRR80 |
22 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-28390 |
ZRR80 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-28380 |
ZRR80 |
1 | ||
| 68141E - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-28170 |
ZRR80 |
1 | ||
| 68141-28171 |
ZRR80 |
1 | ||
| 68151E - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-28140 |
ZRR80 |
1 | ||
| 68151-28141 |
ZRR80 |
1 | ||
| 68161B - WEATHERSTRIP, FRONT DOOR GLASS, OUTER RH | ||||
| 68161-28081 |
ZRR80 |
1 | ||
| 68161-28080 |
ZRR80 |
1 | ||
| 68162B - WEATHERSTRIP, FRONT DOOR GLASS, OUTER LH | ||||
| 68162-28081 |
ZRR80 |
1 | ||
| 68162-28080 |
ZRR80 |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-28060 |
ZRR80 |
2 | ||
| 69951A - CHANNEL, FRONT DOOR GLASS | ||||
| 69955-47010 |
ZRR80 |
2 | ||
| 69975E - FILLER, FRONT DOOR GLASS CHANNEL, NO.1 | ||||
| 69975-47010 |
ZRR80 |
2 | ||
| 75921C - TAPE, BLACK OUT, NO.1 RH | ||||
| 75935-28060 |
ZRR80 |
1 | ||
| 75922M - TAPE, BLACK OUT, NO.1 LH | ||||
| 75936-28050 |
ZRR80 |
1 | ||
| 75955B - TAPE, BLACK OUT FRONT DOOR, OUTER UPPER RH | ||||
| 75955-28050 |
ZRR80 |
1 | ||
| 75956B - TAPE, BLACK OUT FRONT DOOR, OUTER UPPER LH | ||||
| 75956-28050 |
ZRR80 |
1 | ||
| 75957C - TAPE, BLACK OUT FRONT DOOR, OUTER REAR RH | ||||
| 75957-28050 |
ZRR80 |
1 | ||
| 75958B - TAPE, BLACK OUT FRONT DOOR, OUTER REAR LH | ||||
| 75958-28050 |
ZRR80 |
1 | ||
| 87912A - PROTECTOR, OUTER MIRROR | ||||
| 87912-28090 |
ZRR80 LH |
1 | ||
| 87912-28080 |
ZRR80 RH |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90119-06983 | ||||
| 90159-60602 | ||||
| 90189-06227 | ||||
| 90950-01527 | ||||
| 90950-01841 | ||||
| 90950-01919 | ||||
| 90950-01A05 | ||||
| 91673-80616 | ||||
