ZRR80R-ARXEP (2014)

Toyota Noah/Voxy

Production Jan 2014 - Jun 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

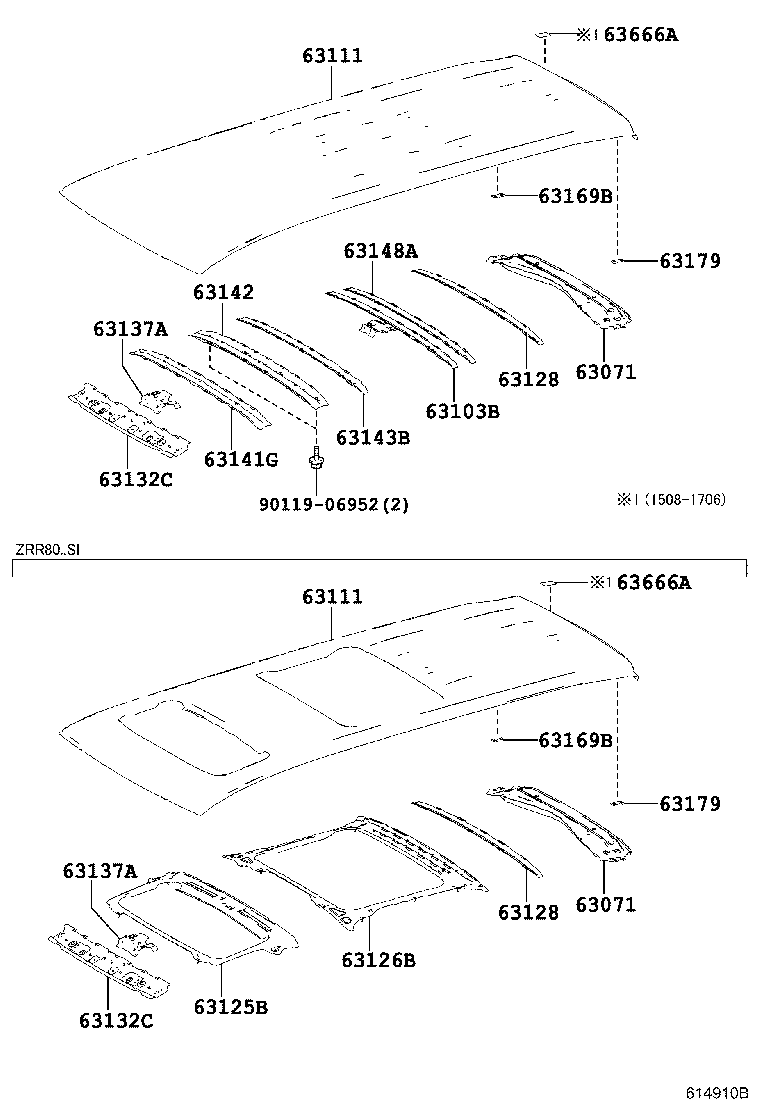

ILLUST NO. 1 OF 3(1401- )

Click highlighted areas on diagram

ROOF PANEL

diagram 63071 63071 63103B 63111 63111 63125B 63126B 63128 63128 63132C 63132C 63137A 63137A 63141G 63142 63143B 63148A 63169B 63169B 63179 63179 63666A 63666A 9011906952
Part # Description Qty Price
63071 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER
63071-28080

ZRR80

 1
63071 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER
63071-28080

ZRR80

 1
63103B - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER
63103-28090

ZRR80..X

 1
63111 - PANEL, ROOF
63111-28300

ZRR80..X

 1
63111 - PANEL, ROOF
63111-28300

ZRR80..X

 1
63128 - REINFORCEMENT, ROOF PANEL, NO.6
63128-28030

ZRR80

 1
63128 - REINFORCEMENT, ROOF PANEL, NO.6
63128-28030

ZRR80

 1
63132C - PANEL, WINDSHIELD HEADER, INNER
63132-28120

ZRR80

 1
63132C - PANEL, WINDSHIELD HEADER, INNER
63132-28120

ZRR80

 1
63137A - BRACKET, DOME LAMP, NO.1
63137-28070

ZRR80

 1
63137A - BRACKET, DOME LAMP, NO.1
63137-28070

ZRR80

 1
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63141-28160

ZRR80..X

 1
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63142-28110

ZRR80..X

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-28110

ZRR80..X

 1
63148A - REINFORCEMENT, ROOF PANEL, NO.7
63148-28010

ZRR80..X

 1
63169B - PLATE, ROOF PANEL REINFORCEMENT, RH
63169-28030

ZRR80

 1
63169B - PLATE, ROOF PANEL REINFORCEMENT, RH
63169-28030

ZRR80

 1
63179 - PLATE, ROOF PANEL REINFORCEMENT, LH
63169-28030

ZRR80

 1
63179 - PLATE, ROOF PANEL REINFORCEMENT, LH
63169-28030

ZRR80

 1
63666A - PROTECTOR, ROOF, REAR
76587-28060

ZRR80

 1
63666A - PROTECTOR, ROOF, REAR
76587-28060

ZRR80

 1
Common parts
90119-06952
