ZRR80R-ARXEP (2014)
Toyota Noah/Voxy
Production
Jan 2014
-
Jun 2017
Engine
3ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1401- )X

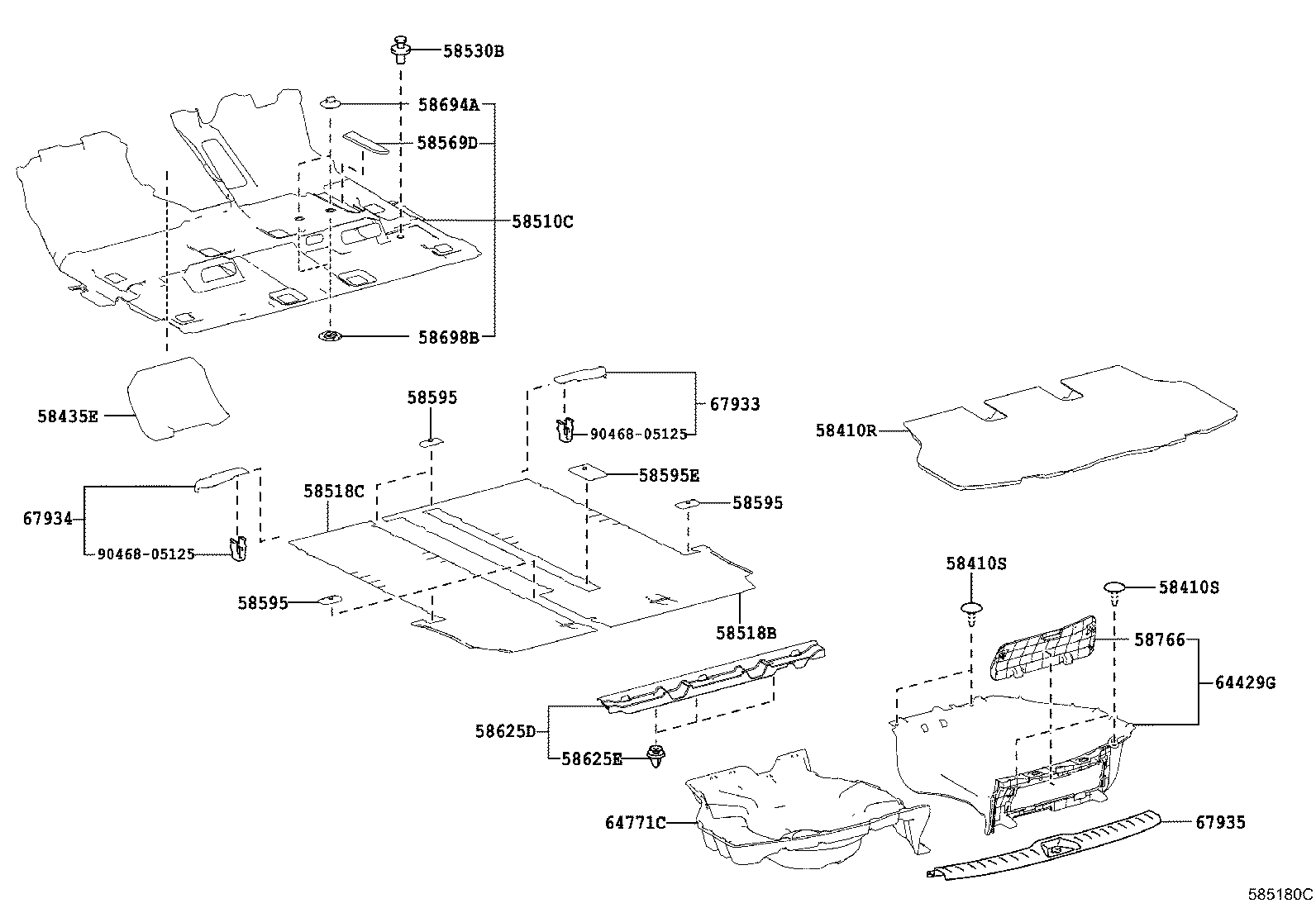

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58410R - BOARD ASSY, DECK | ||||
| 58410-28090C1 |
ZRR80..X FLOOR CARPET,TRIM0# |
1 | ||
| 58410S - CLIP, DECK BOARD | ||||
| 67771-26230E0 |
ZRR80 CREAM YELLOW |
4 | ||
| 58410S - CLIP, DECK BOARD | ||||
| 67771-26230E0 |
ZRR80 CREAM YELLOW |
4 | ||
| 58435E - SILENCER, FRONT FLOOR, CENTER | ||||
| 58435-28090 |
ZRR80 |
1 | ||
| 58510C - CARPET ASSY, FRONT FLOOR, FRONT | ||||
| 58510-28F40B0 |
ZRR80..X GRAY,TRIM0#,2# |
1 | ||
| 58518B - MAT, REAR FLOOR, NO.2 | ||||
| 58518-28B70C0 |
ZRR80..X FLOOR CARPET,TRIM0# |
1 | ||
| 58518C - MAT, REAR FLOOR, NO.2 | ||||
| 58518-28C00C0 |
ZRR80..X FLOOR CARPET,TRIM0# |
1 | ||
| 58530B - CLIP(FOR FRONT FLOOR CARPET) | ||||
| 90467-07215 |
ZRR80 |
1 | ||
| 58569D - COVER, FRONT FLOOR CAUTION PLATE | ||||
| 58569-28020B0 |
ZRR80..X GRAY,TRIM0# |
1 | ||
| 58595 - MOULDING, FLOOR CARPET, NO.3 | ||||
| 58595-28100C0 |
ZRR80..X BLACK,TRIM0# |
5 | ||
| 58595 - MOULDING, FLOOR CARPET, NO.3 | ||||
| 58595-28100C0 |
ZRR80..X BLACK,TRIM0# |
5 | ||
| 58595 - MOULDING, FLOOR CARPET, NO.3 | ||||
| 58595-28100C0 |
ZRR80..X BLACK,TRIM0# |
5 | ||
| 58595E - MOULDING, FLOOR CARPET, NO.4 | ||||
| 58595-28110C0 |
ZRR80..X BLACK,TRIM0# |
1 | ||
| 58625D - PLATE, REAR FLOOR MAT, NO.1 | ||||
| 58625-28100C0 |
ZRR80..X BLACK,TRIM0# |
1 | ||
| 58625E - CLIP(FOR REAR FLOOR MAT PLATE) | ||||
| 62217-13010 |
ZRR80 |
3 | ||
| 58694A - PLATE, MAT SET, UPPER | ||||
| 58694-76010 |
ZRR80 |
2 | ||
| 58698B - PLATE, MAT SET, LOWER | ||||
| 58698-76010 |
ZRR80 |
2 | ||
| 58766 - COVER, JACK BOX HOLE | ||||
| 64786-28010 |
ZRR80 |
1 | ||
| 64429G - BOX, LUGGAGE COMPARTMENT TRIM | ||||
| 64993-28030 |
ZRR80 |
1 | ||
| 64993-28031 |
ZRR80 |
1 | ||
| 64771C - COVER, SPARE WHEEL | ||||
| 64771-28010 |
ZRR80 |
1 | ||
| 64771-28011 |
ZRR80 |
1 | ||
| 67933 - PLATE, QUARTER SCUFF, INNER RH | ||||
| 67933-28060C0 |
ZRR80..X BLACK,TRIM0#,2# |
1 | ||
| 67934 - PLATE, QUARTER SCUFF, INSIDE LH | ||||
| 67934-28050C0 |
ZRR80..X BLACK,TRIM0#,2# |
1 | ||
| 67935 - PLATE, BACK DOOR SCUFF | ||||
| 67935-28100C0 |
ZRR80..X BLACK,TRIM0#,2# |
1 | ||
| Common parts | ||||
| 90468-05125 | ||||
