ZRR80R-ARXEP (2014)
Toyota Noah/Voxy
Production
Jan 2014
-
Jun 2017
Engine
3ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

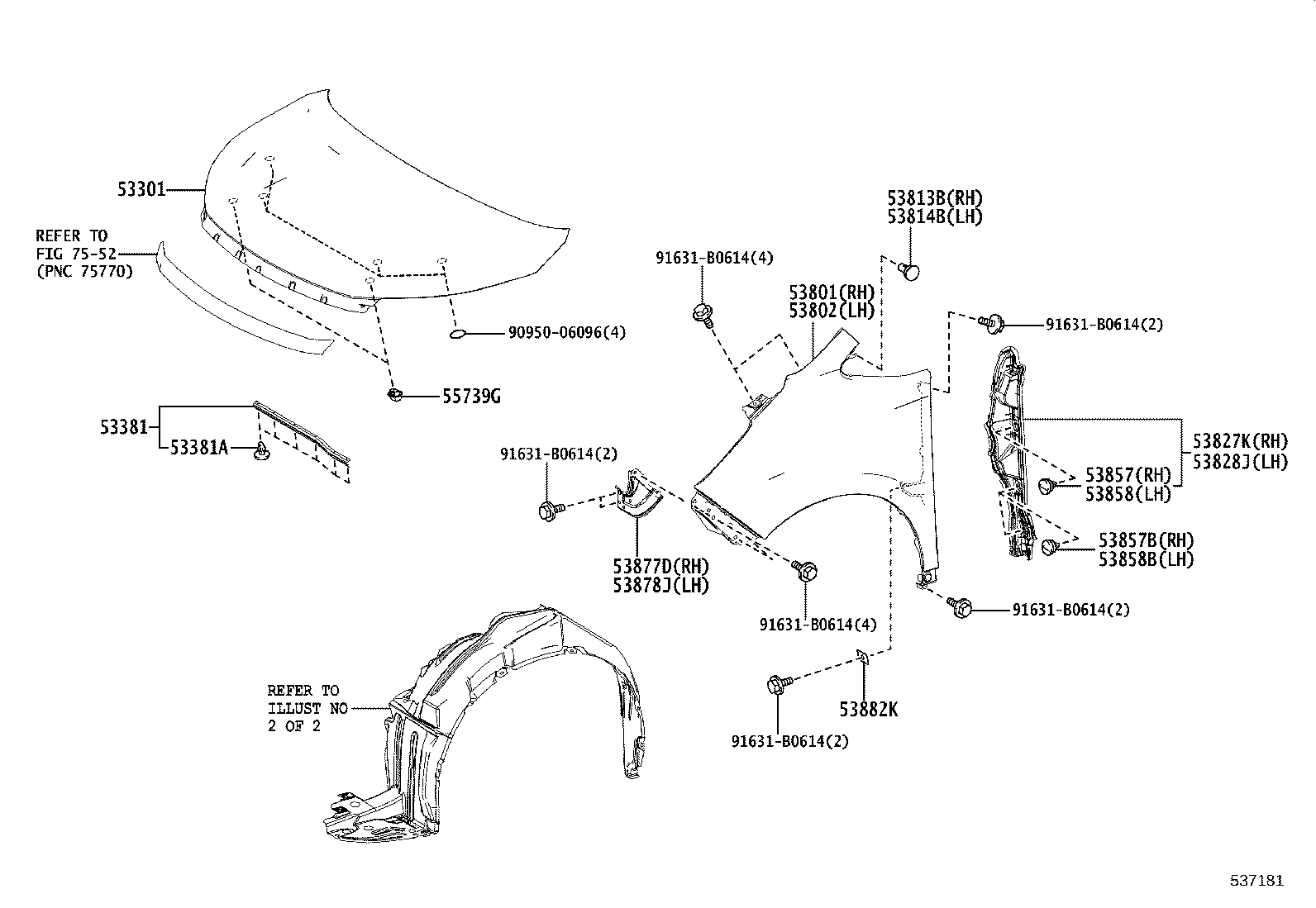

ILLUST NO. 1 OF 2(1401- )NOAH
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-28160 |
ZRR80 |
1 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-28111 |
ZRR80 |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08011 |
ZRR80 |
6 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53811-28180 |
ZRR80..X |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53812-28240 |
ZRR80..X |
1 | ||
| 53813B - EXTENSION, FRONT FENDER, RH | ||||
| 53813-47040 |
ZRR80 |
1 | ||
| 53813-28140 |
ZRR80 |
1 | ||
| 53814B - EXTENSION, FRONT FENDER, LH | ||||
| 53813-28140 |
ZRR80 |
1 | ||
| 53813-47040 |
ZRR80 |
1 | ||
| 53827K - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-28140 |
ZRR80 |
1 | ||
| 53828J - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53828-28160 |
ZRR80 |
1 | ||
| 53857 - RETAINER, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53857-47020 |
ZRR80 |
1 | ||
| 53857-28030 |
ZRR80 |
1 | ||
| 53857B - RETAINER, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53857-28030 |
ZRR80 |
2 | ||
| 53857-47011 |
ZRR80 |
2 | ||
| 53858 - RETAINER, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53857-28030 |
ZRR80 |
1 | ||
| 53857-47020 |
ZRR80 |
1 | ||
| 53858B - RETAINER, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53857-47011 |
ZRR80 |
2 | ||
| 53857-28030 |
ZRR80 |
2 | ||
| 53877D - BRACKET, FRONT FENDER LINER, RH | ||||
| 53877-28060 |
ZRR80 |
1 | ||
| 53878J - BRACKET, FRONT FENDER LINER, LH | ||||
| 53878-28170 |
ZRR80 |
1 | ||
| 53882K - SEAL, FRONT FENDER | ||||
| 53882-16030 |
ZRR80 |
2 | ||
| 55739G - STOPPER, HOOD | ||||
| 55739-28010 |
ZRR80 |
2 | ||
| Common parts | ||||
| 90950-06096 | ||||
| 91631-B0614 | ||||
| Linked diagrams | ||||
| 7552 | ||||

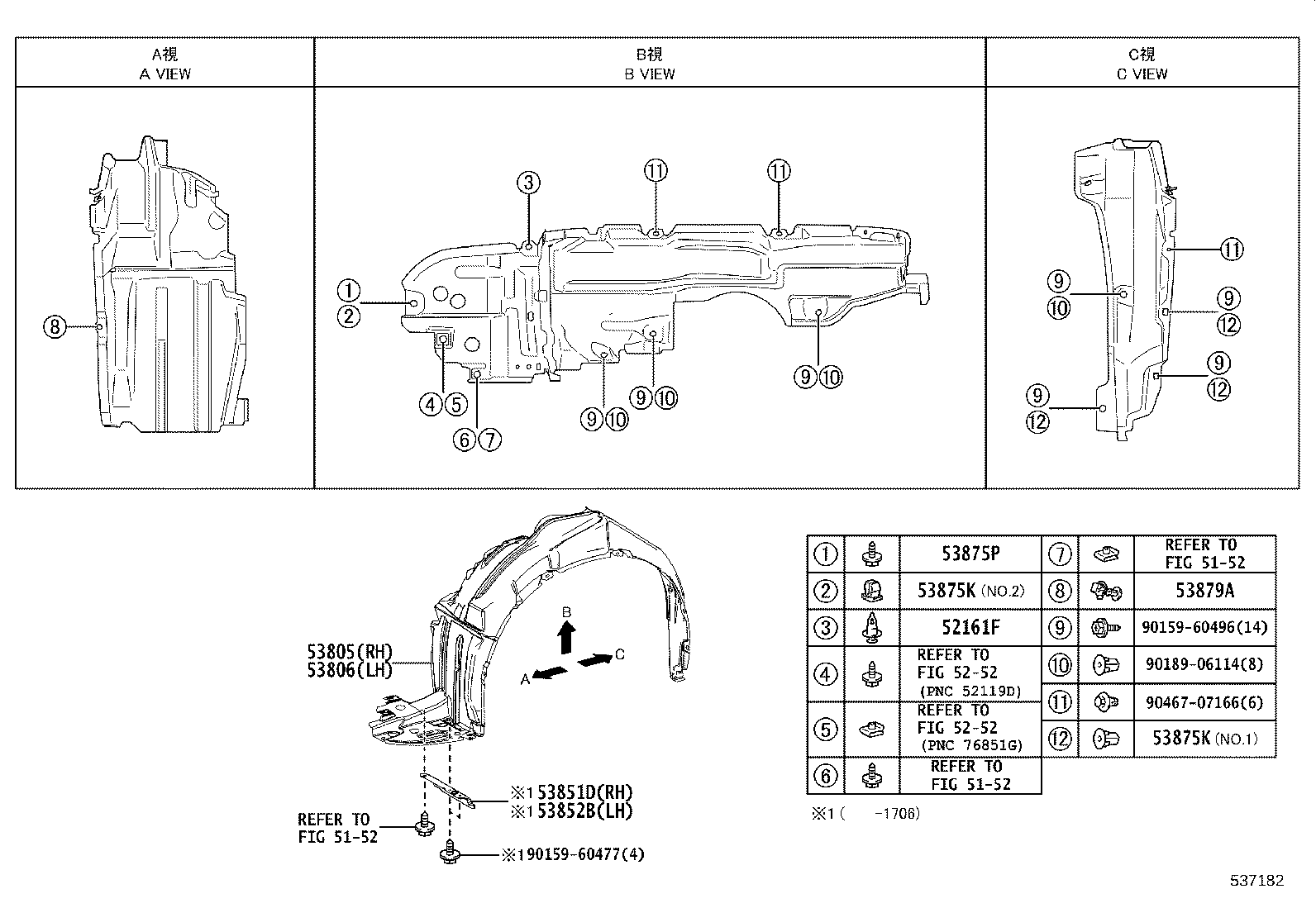

ILLUST NO. 2 OF 2(1401- )NOAH
Click highlighted areas on diagram
FENDER LINER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52161F - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ZRR80 |
2 | ||
| 53805 - SHIELD SUB-ASSY, FRONT FENDER SPLASH, RH | ||||
| 53805-28090 |
ZRR80..X |
1 | ||
| 53806 - SHIELD SUB-ASSY, FRONT FENDER SPLASH, LH | ||||
| 53806-28100 |
ZRR80..X |
1 | ||
| 53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53851-28050 |
ZRR80 |
1 | ||
| 53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53852-28040 |
ZRR80 |
1 | ||
| 53875K - GROMMET, SCREW | ||||
| 90189-06065 |
ZRR80 NO.1:REFER ILLUST. |
6 | ||
| 90189-06193 |
ZRR80 NO.2:REFER ILLUST. |
2 | ||
| 53875K - GROMMET, SCREW | ||||
| 90189-06065 |
ZRR80 NO.1:REFER ILLUST. |
6 | ||
| 90189-06193 |
ZRR80 NO.2:REFER ILLUST. |
2 | ||
| 53875P - SCREW, NO.1 | ||||
| 90159-60383 |
ZRR80 |
2 | ||
| 53879A - RETAINER, FRONT FENDER LINER | ||||
| 53879-28030 |
ZRR80 |
2 | ||
| Common parts | ||||
| 90159-60477 | ||||
| 90159-60496 | ||||
| 90189-06114 | ||||
| 90467-07166 | ||||
| Linked diagrams | ||||
| 5152 | ||||
| 5252 | ||||
