ZRR80R-ARXEP (2014)

Toyota Noah/Voxy

Production Jan 2014 - Jun 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1401- )NOAH

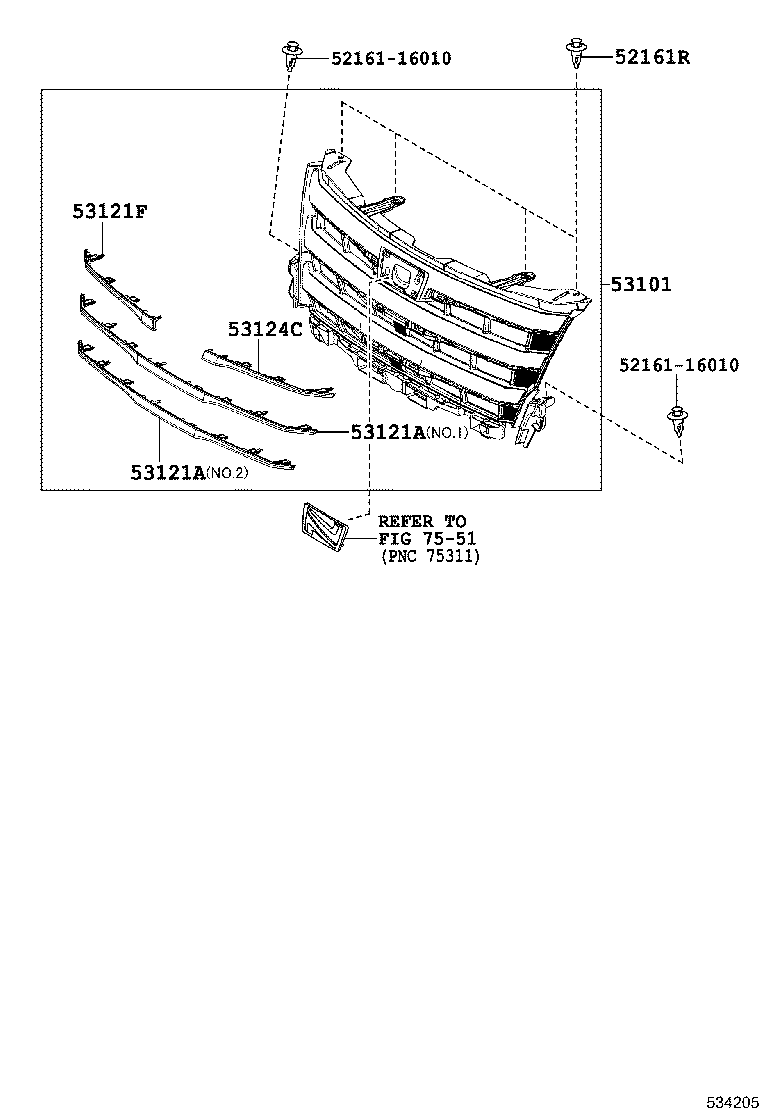

Click highlighted areas on diagram

diagram 5216116010 5216116010 52161R 53101 53121A 53121A 53121F 53124C 7551
Part # Description Qty Price
52161R - PIECE, FRONT BUMPER
52161-16010

ZRR80

 4
53101 - GRILLE SUB-ASSY, RADIATOR
53101-28390

ZRR80..X

PLATED

 1
53121A - MOULDING, RADIATOR GRILLE
53123-28030

ZRR80

NO.1:REFER ILLUST.

 1
53124-28030

ZRR80

NO.2:REFER ILLUST.

 1
53121A - MOULDING, RADIATOR GRILLE
53123-28030

ZRR80

NO.1:REFER ILLUST.

 1
53124-28030

ZRR80

NO.2:REFER ILLUST.

 1
53121F - MOULDING, RADIATOR GRILLE, UPPER RH
53121-28100

ZRR80

 1
53124C - MOULDING, RADIATOR GRILLE, UPPER LH
53122-28020

ZRR80

 1
Common parts
52161-16010
Linked diagrams
7551
