ZRR80R-ARXEP (2014)
Toyota Noah/Voxy
Production
Jan 2014
-
Jun 2017
Engine
3ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1401- )X

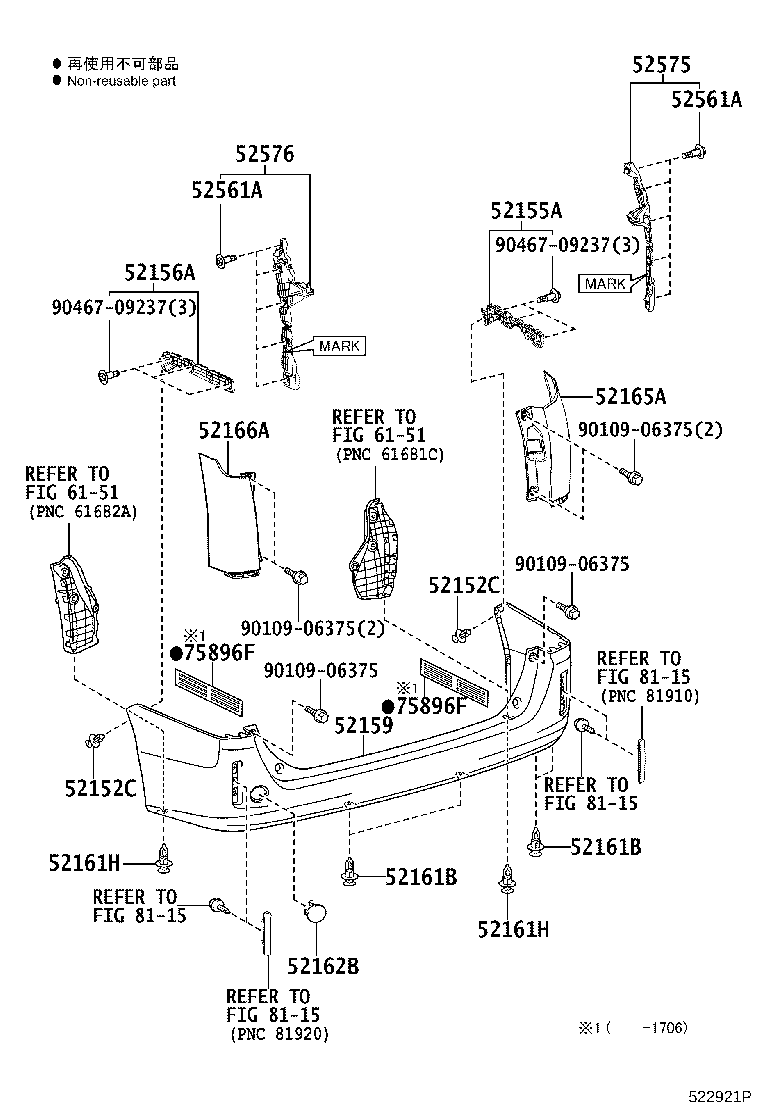

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52152C - CLIP, REAR BUMPER SIDE | ||||
| 90467-05170 |
ZRR80 |
2 | ||
| 52152C - CLIP, REAR BUMPER SIDE | ||||
| 90467-05170 |
ZRR80 |
2 | ||
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-28130 |
ZRR80 |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-28100 |
ZRR80 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-28955 |
ZRR80..X PAINT REQ. |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZRR80 |
4 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZRR80 |
4 | ||
| 52161H - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZRR80 |
2 | ||
| 52161H - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZRR80 |
2 | ||
| 52162B - PLATE, REAR BUMPER, NO.1 | ||||
| 52162-28060E0 |
ZRR80..X ROSE CHAMPAGNE M.M.,4W4 |
1 | ||
| 52162-28060A0 |
ZRR80..X WHITE PEARL CS.,070 |
1 | ||
| 52162-28060H0 |
ZRR80..X OCEAN MINT ME.,789 |
1 | ||
| 52162-28060C0 |
ZRR80..X BLACK,202 |
1 | ||
| 52162-28060B0 |
ZRR80..X SILVER ME.,1F7 |
1 | ||
| 52162-28060D0 |
ZRR80..X DEEP RED M.M.,3R9 |
1 | ||
| 52165A - COVER, REAR BUMPER, UPR RH | ||||
| 52165-28010A0 |
ZRR80 WHITE PEARL CS.,070 |
1 | ||
| 52165-28010D0 |
ZRR80 DEEP RED M.M.,3R9 |
1 | ||
| 52165-28010H0 |
ZRR80..X OCEAN MINT ME.,789 |
1 | ||
| 52165-28010B0 |
ZRR80 SILVER ME.,1F7 |
1 | ||
| 52165-28010E0 |
ZRR80..X ROSE CHAMPAGNE M.M.,4W4 |
1 | ||
| 52165-28010C0 |
ZRR80 BLACK,202 |
1 | ||
| 52166A - COVER, REAR BUMPER, UPR LH | ||||
| 52166-28010B0 |
ZRR80 SILVER ME.,1F7 |
1 | ||
| 52166-28010A0 |
ZRR80 WHITE PEARL CS.,070 |
1 | ||
| 52166-28010D0 |
ZRR80 DEEP RED M.M.,3R9 |
1 | ||
| 52166-28010H0 |
ZRR80..X OCEAN MINT ME.,789 |
1 | ||
| 52166-28010E0 |
ZRR80..X ROSE CHAMPAGNE M.M.,4W4 |
1 | ||
| 52166-28010C0 |
ZRR80 BLACK,202 |
1 | ||
| 52561A - CLIP(FOR REAR BUMPER RETAINER) | ||||
| 90467-09237 |
ZRR80 |
10 | ||
| 52561A - CLIP(FOR REAR BUMPER RETAINER) | ||||
| 90467-09237 |
ZRR80 |
10 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-28020 |
ZRR80 |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-28010 |
ZRR80 |
1 | ||
| 75896F - TAPE, MOULDING | ||||
| 75895-28010 |
ZRR80 |
2 | ||
| 75896F - TAPE, MOULDING | ||||
| 75895-28010 |
ZRR80 |
2 | ||
| Common parts | ||||
| 90109-06375 | ||||
| 90467-09237 | ||||
| Linked diagrams | ||||
| 6151 | ||||
| 8115 | ||||
