ZRR80R-ARXEP (2014)

Toyota Noah/Voxy

Production Jan 2014 - Jun 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1401- )

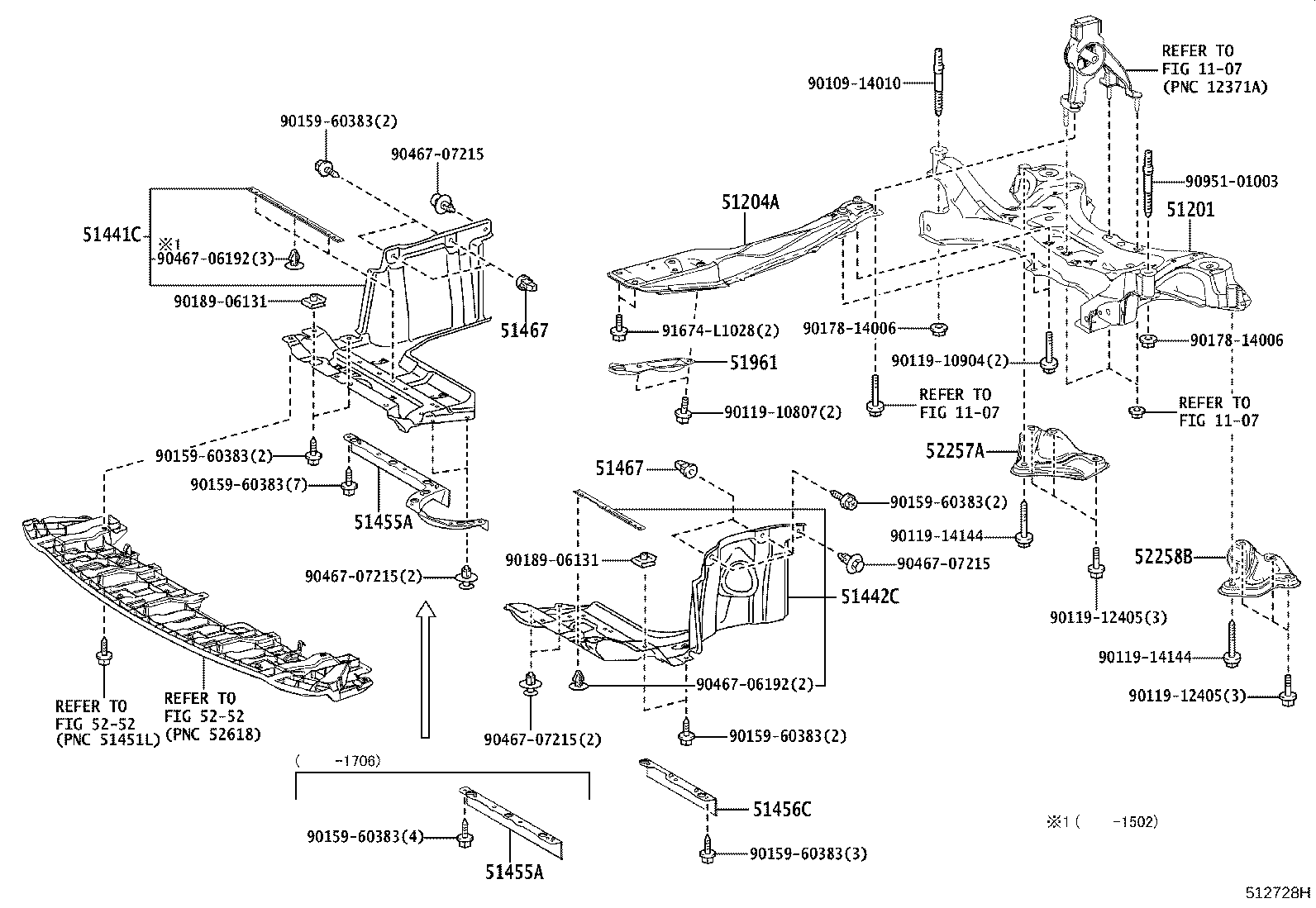

Click highlighted areas on diagram

diagram 1107 1107 1107 51201 51204A 51441C 51442C 51455A 51455A 51456C 51467 51467 51961 52257A 52258B 5252 5252 9010914010 9011910807 9011910904 9011912405 9011912405 9011914144 9011914144 9015960383 9015960383 9015960383 9015960383 9015960383 9015960383 9015960383 9017814006 9017814006 9018906131 9018906131 9046706192 9046706192 9046707215 9046707215 9046707215 9046707215 9095101003 91674L1028
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-28231

ZRR80

 1
51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER
51204-28020

ZRR80

 1
51441C - COVER, ENGINE UNDER, RH
51441-28180

ZRR80

 1
51442C - COVER, ENGINE UNDER, LH
51442-28160

ZRR80

 1
51455A - SEAL, ENGINE UNDER COVER, NO.1
51455-28040

ZRR80

 1
51455A - SEAL, ENGINE UNDER COVER, NO.1
51455-28040

ZRR80

 1
51456C - SEAL, ENGINE UNDER COVER, NO.2
51456-28040

ZRR80

 1
51467 - RETAINER, ENGINE UNDER COVER
51467-28040

ZRR80

 4
51467 - RETAINER, ENGINE UNDER COVER
51467-28040

ZRR80

 4
51961 - HOOK, NO.1
51963-32040

ZRR80

 1
52257A - BRACE, FRONT SUSPENSION MEMBER, REAR RH
52257-28050

ZRR80

 1
52258B - BRACE, FRONT SUSPENSION MEMBER, REAR LH
52258-28040

ZRR80

 1
Common parts
90109-14010
90119-10807
90119-10904
90119-12405
90119-14144
90159-60383
90178-14006
90189-06131
90467-06192
90467-07215
90951-01003
91674-L1028
Linked diagrams
1107
5252
